Removal & Installation
WARNING: This page is about a different car, the 1993 Suzuki Swift. However, it is still accessible from the selected car via links, so may be relevant.

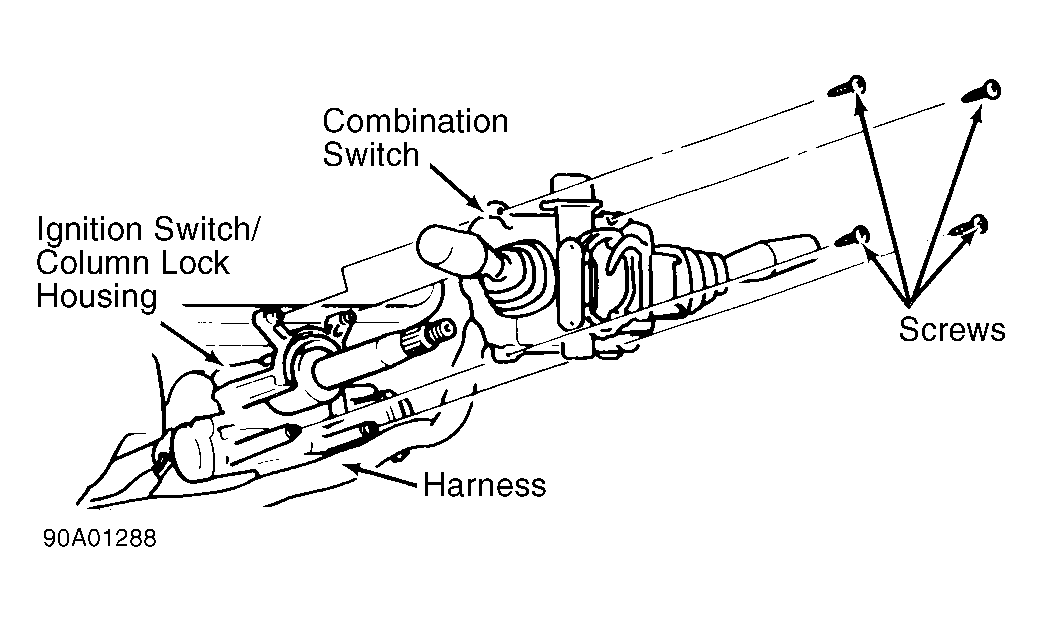

Remove steering wheel. See STEERING WHEEL & HORN PAD. Remove screws and steering column covers. Disconnect combination switch connectors. Loosen wire bands and 3 mounting screws. Remove combination switch. SeeFig 1 , Fig 2 and Figure . To install, reverse removal procedure. Ensure lead wire is not pinched between column covers during installation.
