Section 2 (Wiring Diagrams): Wiring Diagram

WARNING: This page is about a different car, the 1993 Suzuki Sidekick. However, it is still accessible from the selected car via links, so may be relevant.

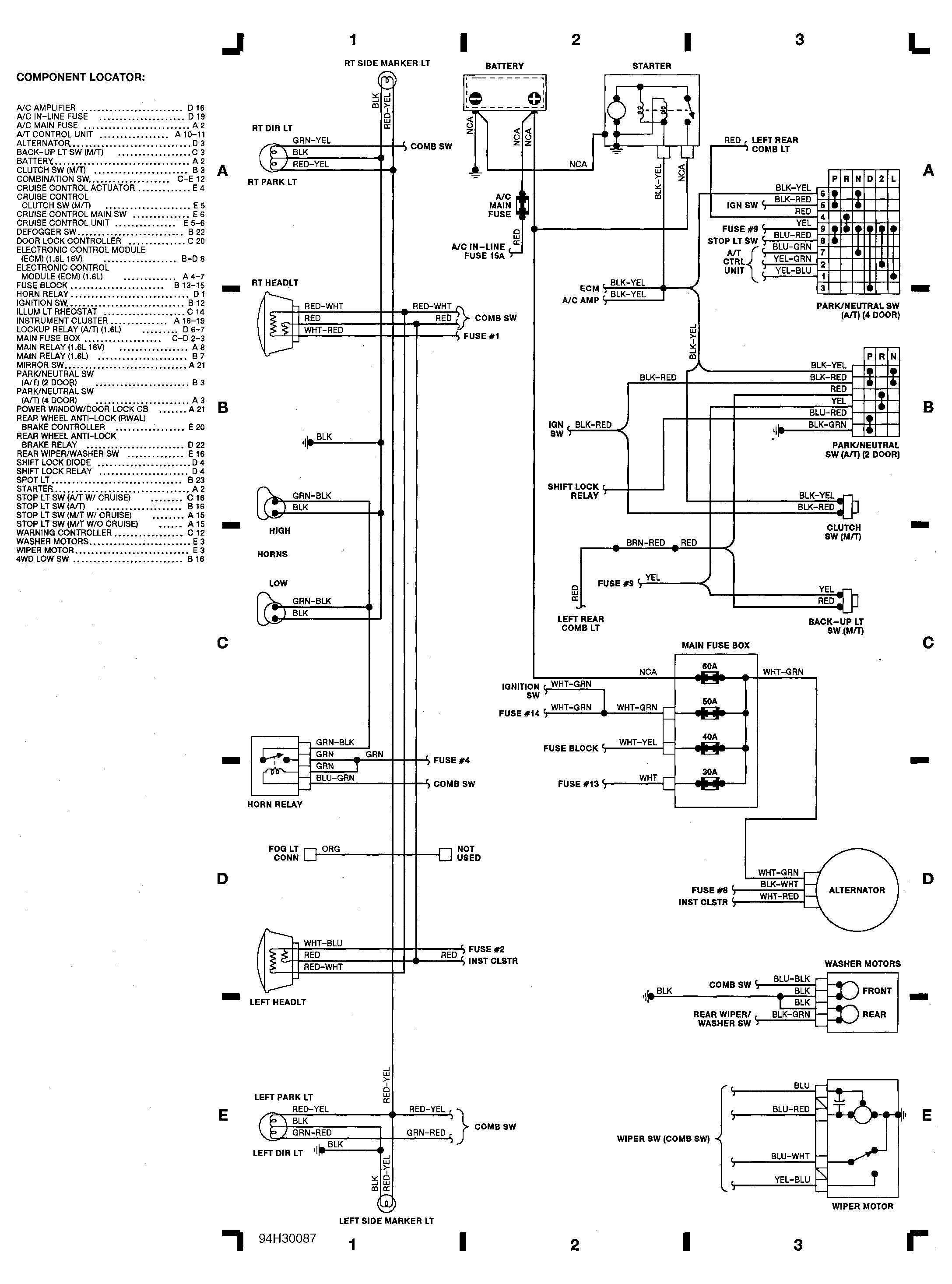

Fig 1: Headlights, Battery, Starter, Alternator (Grid 1-3)

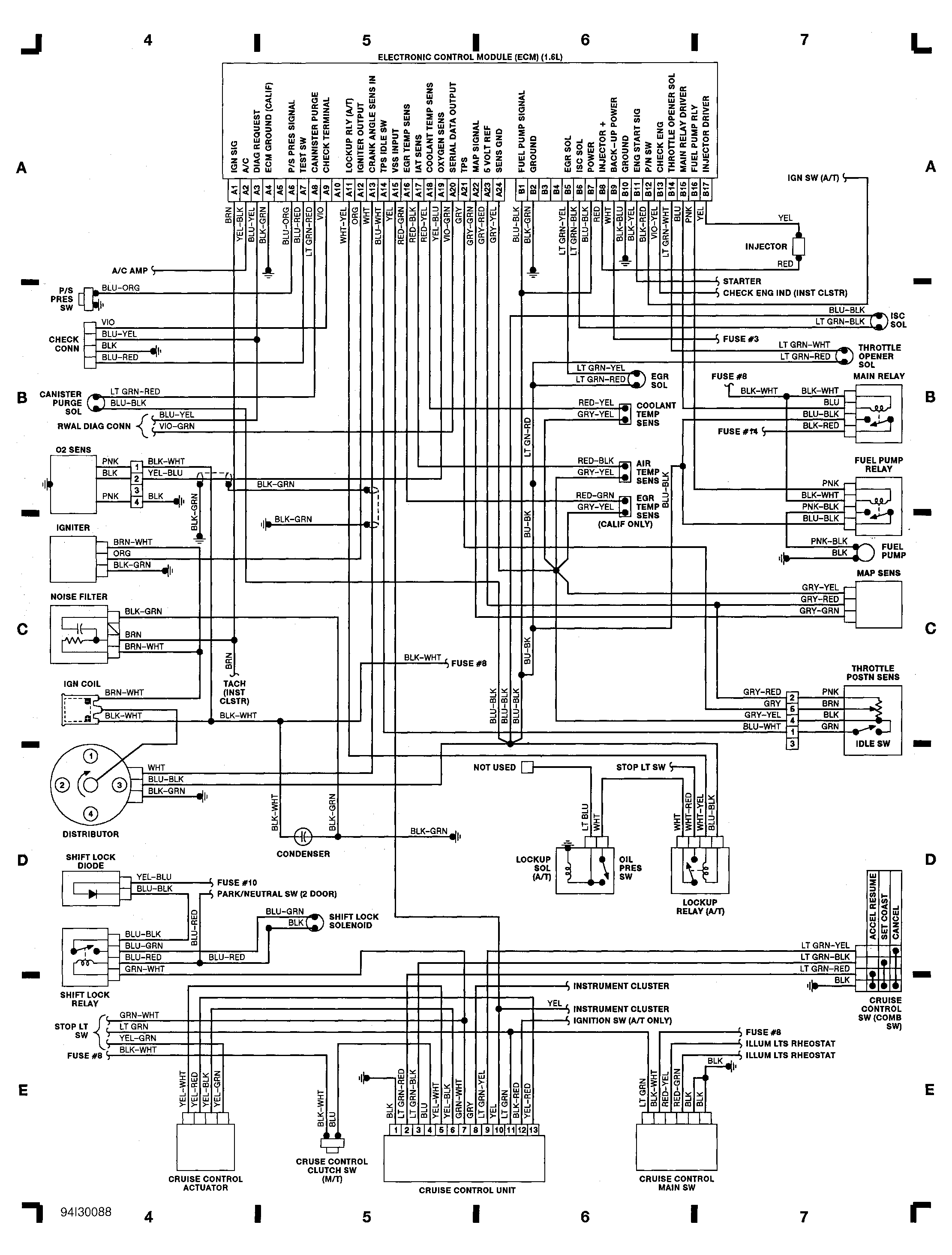

Fig 2: ECM (1.6L), Cruise Ctrl, Fuel Pump (Grid 4-7)

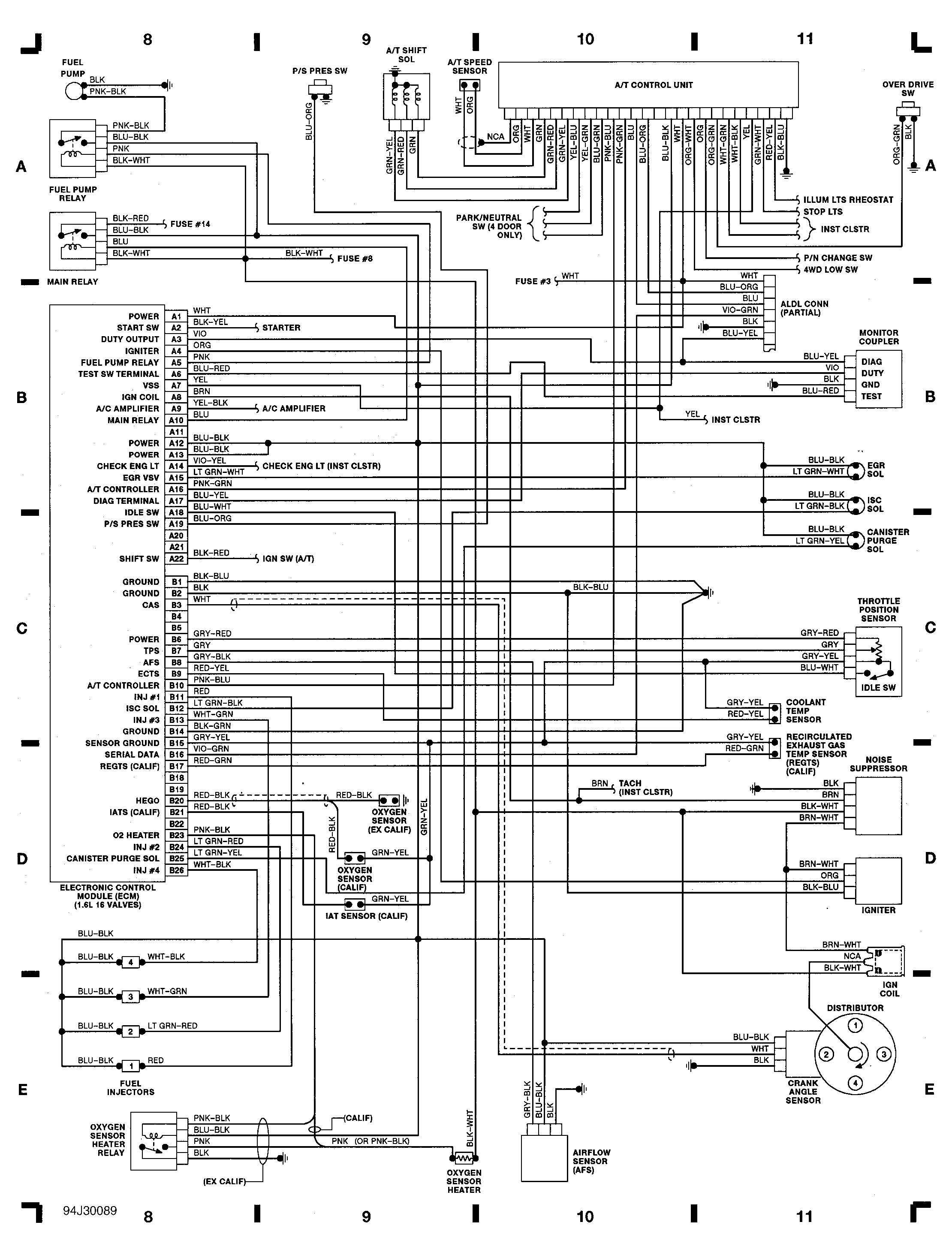

Fig 3: A/T Ctrl Unit, ECU (1.6L 16V), Igniter (Grid 8-11)

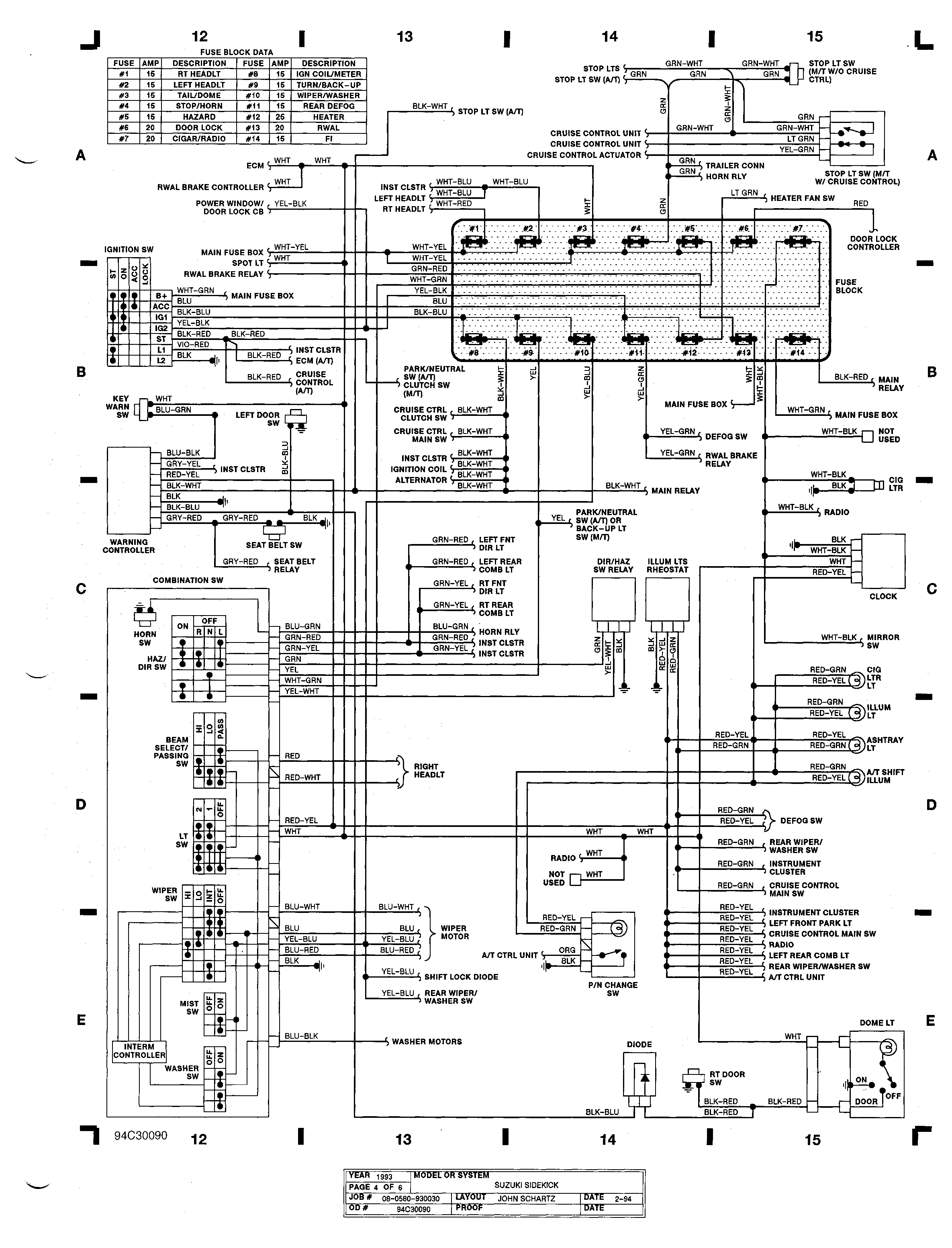

Fig 4: Combo Sw, Courtesy Lts, Ignition Sw (Grid 12-15)

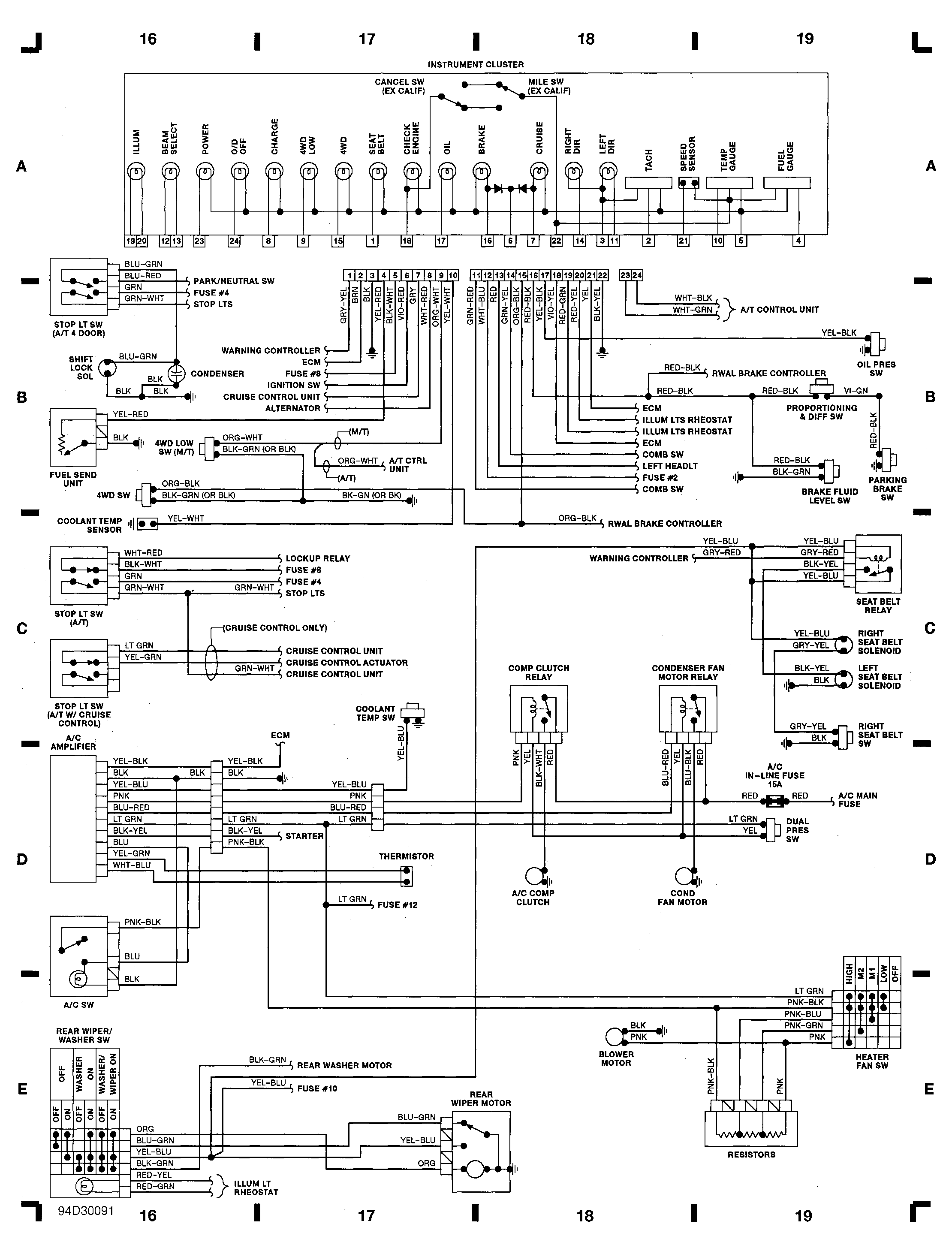

Fig 5: Instrument Clstr, Rear Wiper/Washer Sw (Grid 16-19)

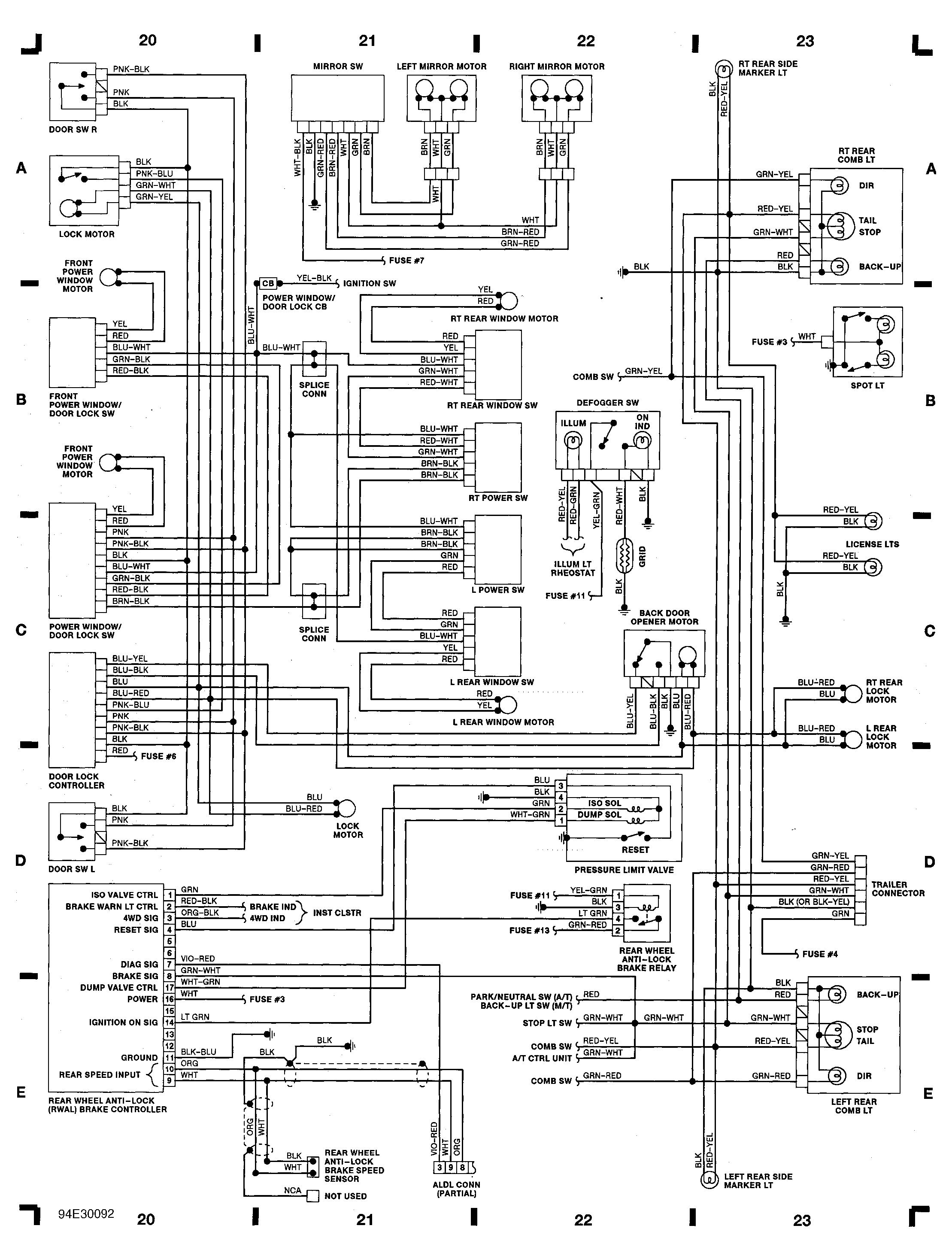

Fig 6: Headlights, Courtesy Lts, Pwr Windows (Grid 20-23)
