Wiring Diagrams

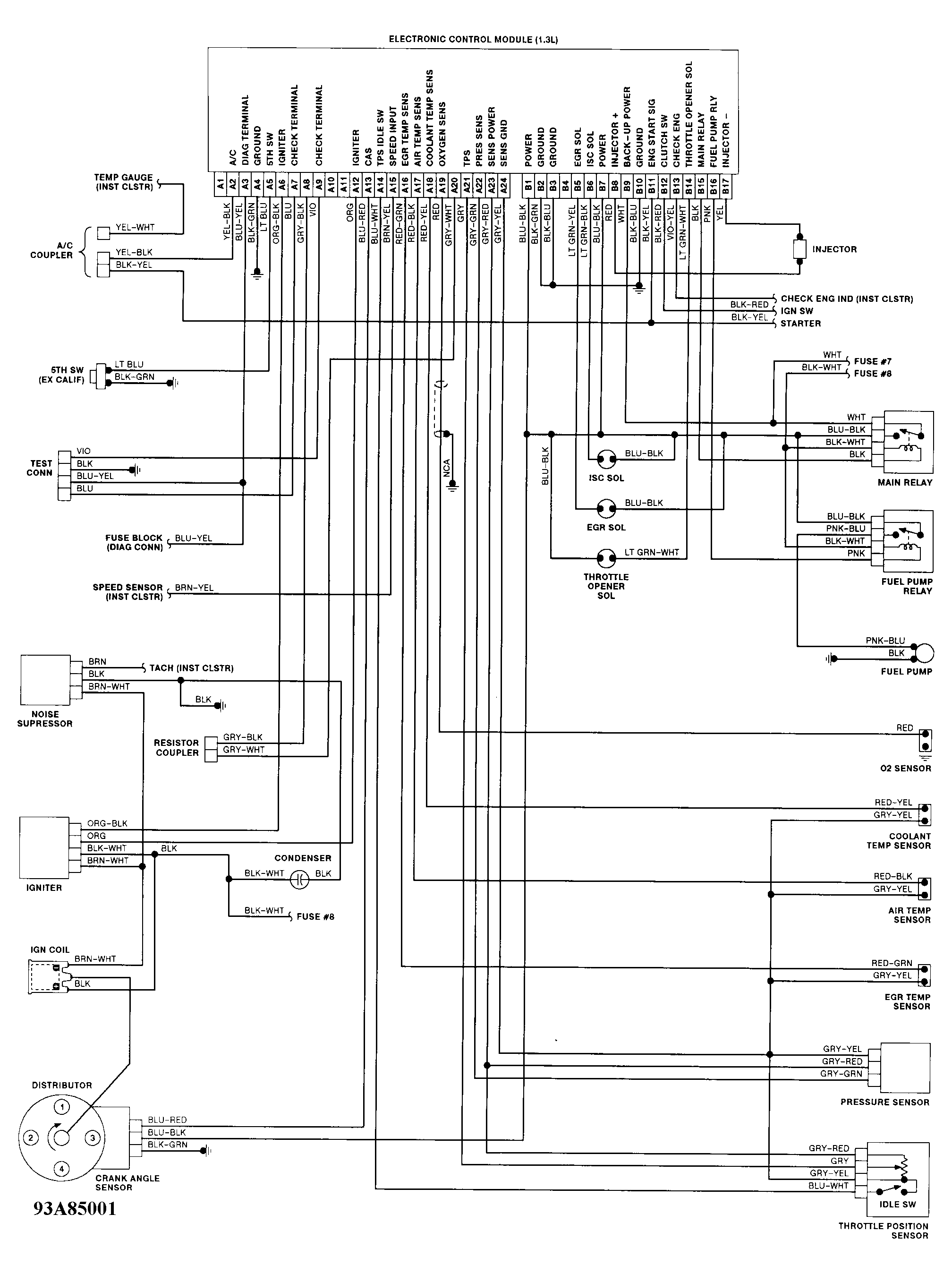

Fig 1: Wiring Diagram (Samurai 1.3L)

G93A85001

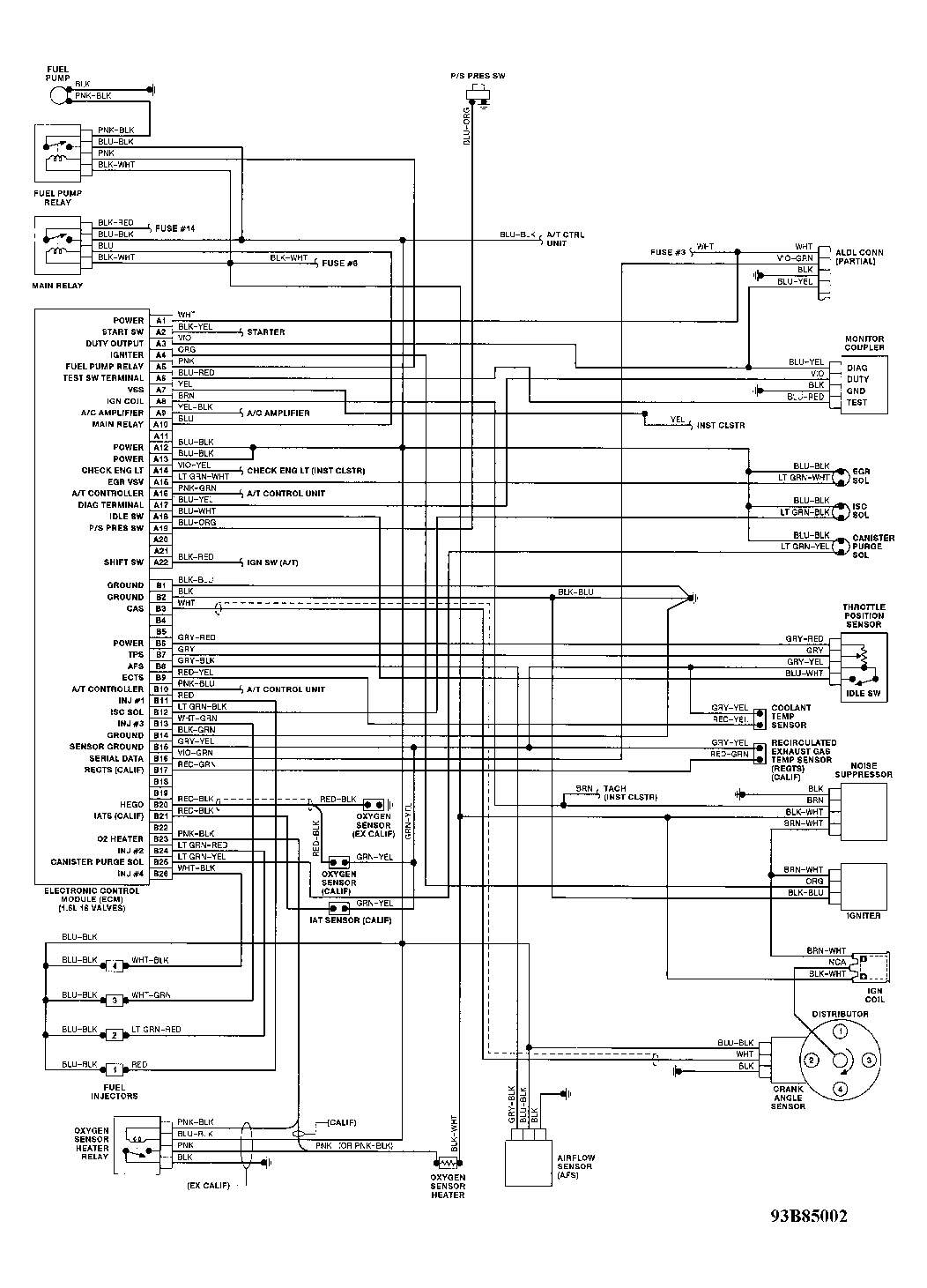

Fig 2: Wiring Diagram (Sidekick 1.6L PFI)

G93B85002

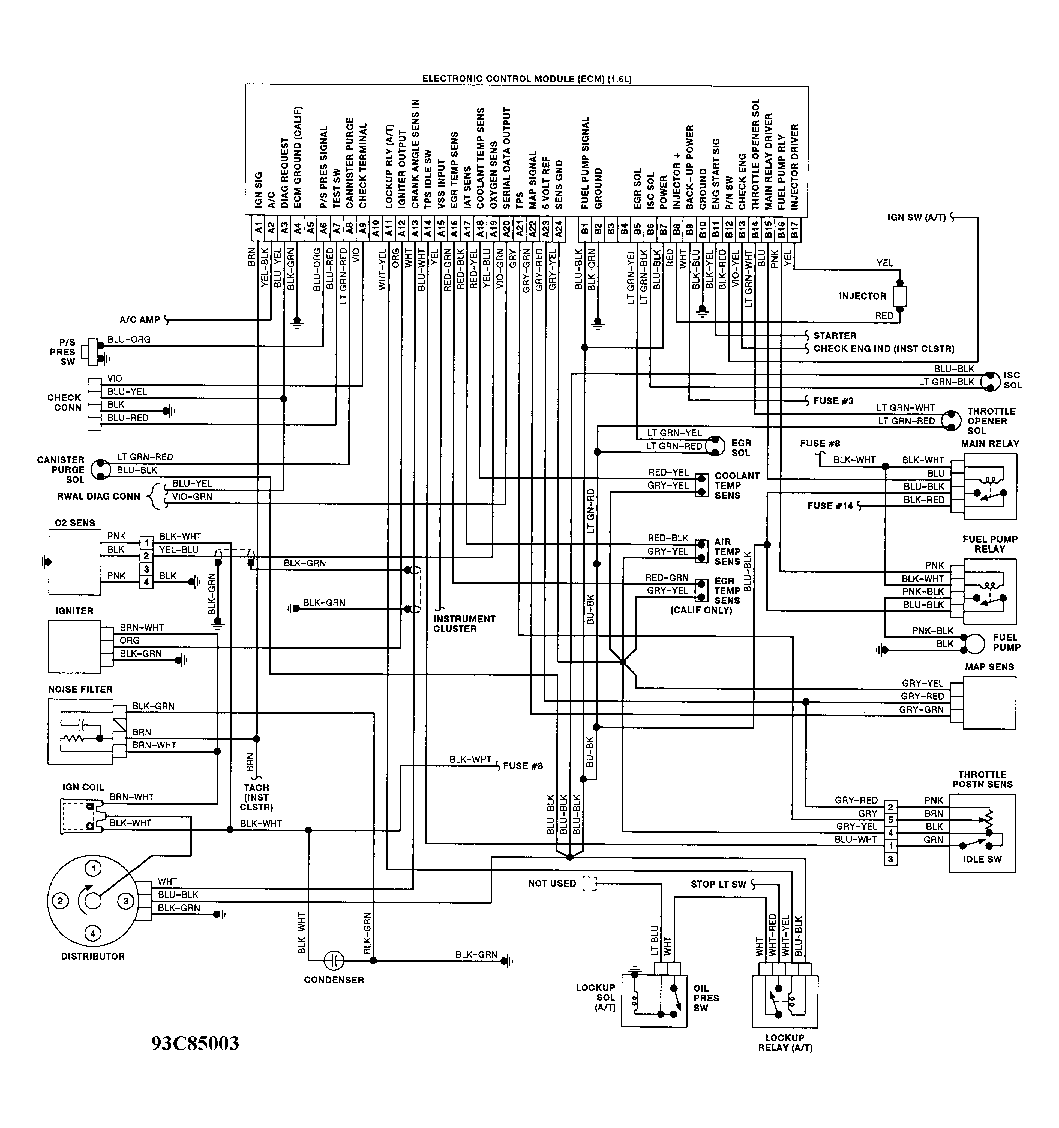

Fig 3: Wiring Diagram (Sidekick 1.6L TBI)

G93C85003

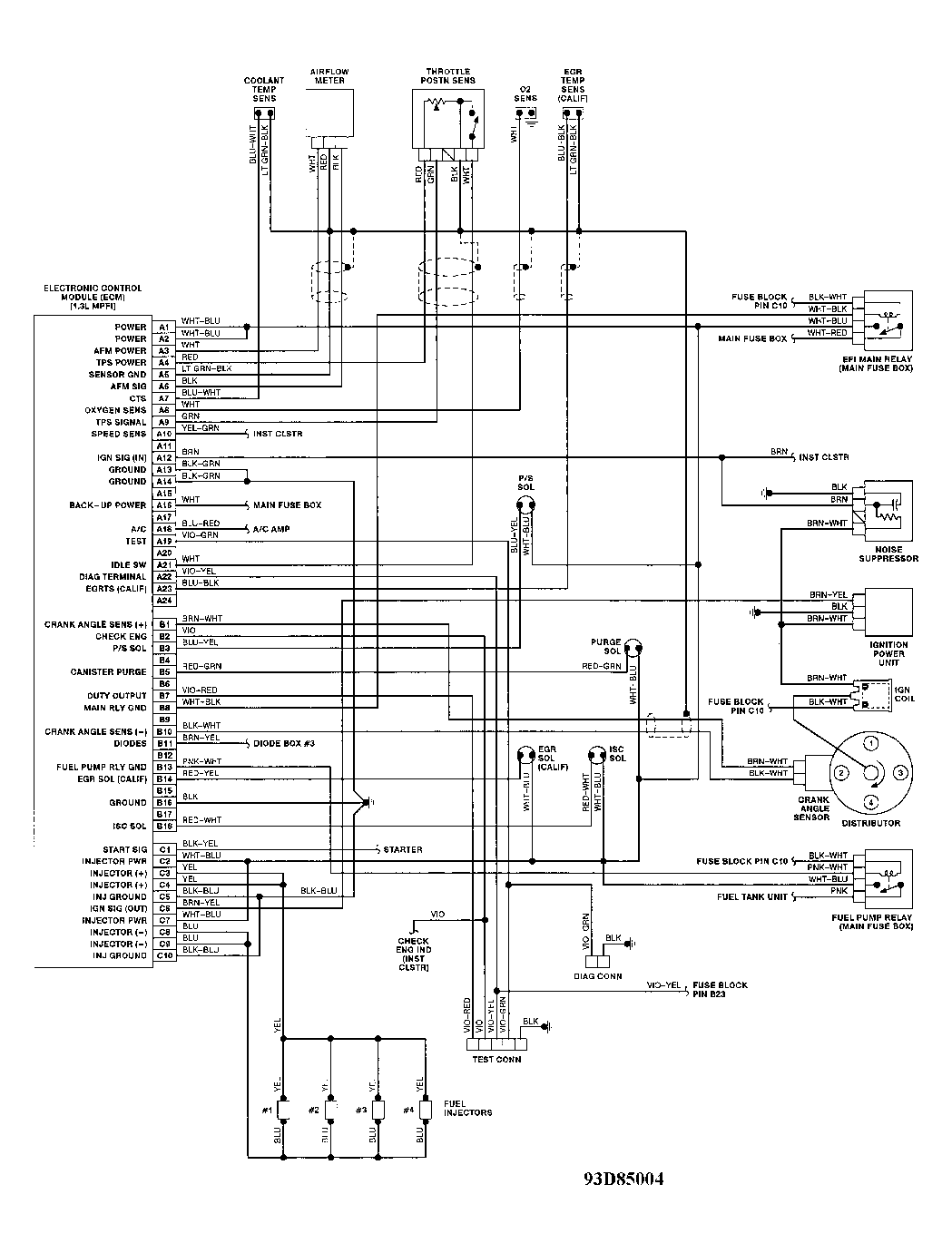

Fig 4: Wiring Diagram (Swift 1.3L PFI)

G93D85004

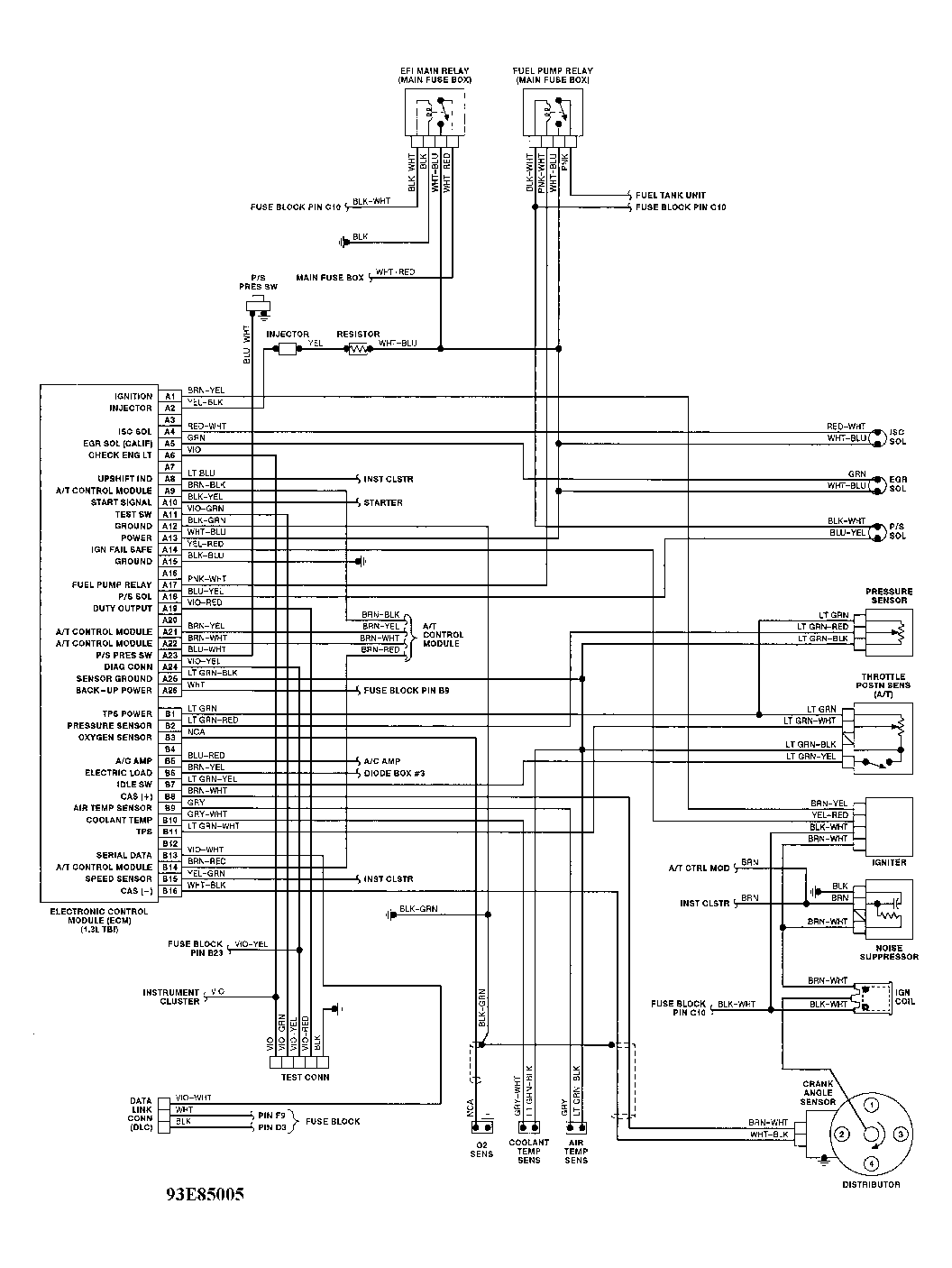

Fig 5: Wiring Diagram (Swift 1.3L TBI)

G93E85005
