Control Module: Locations

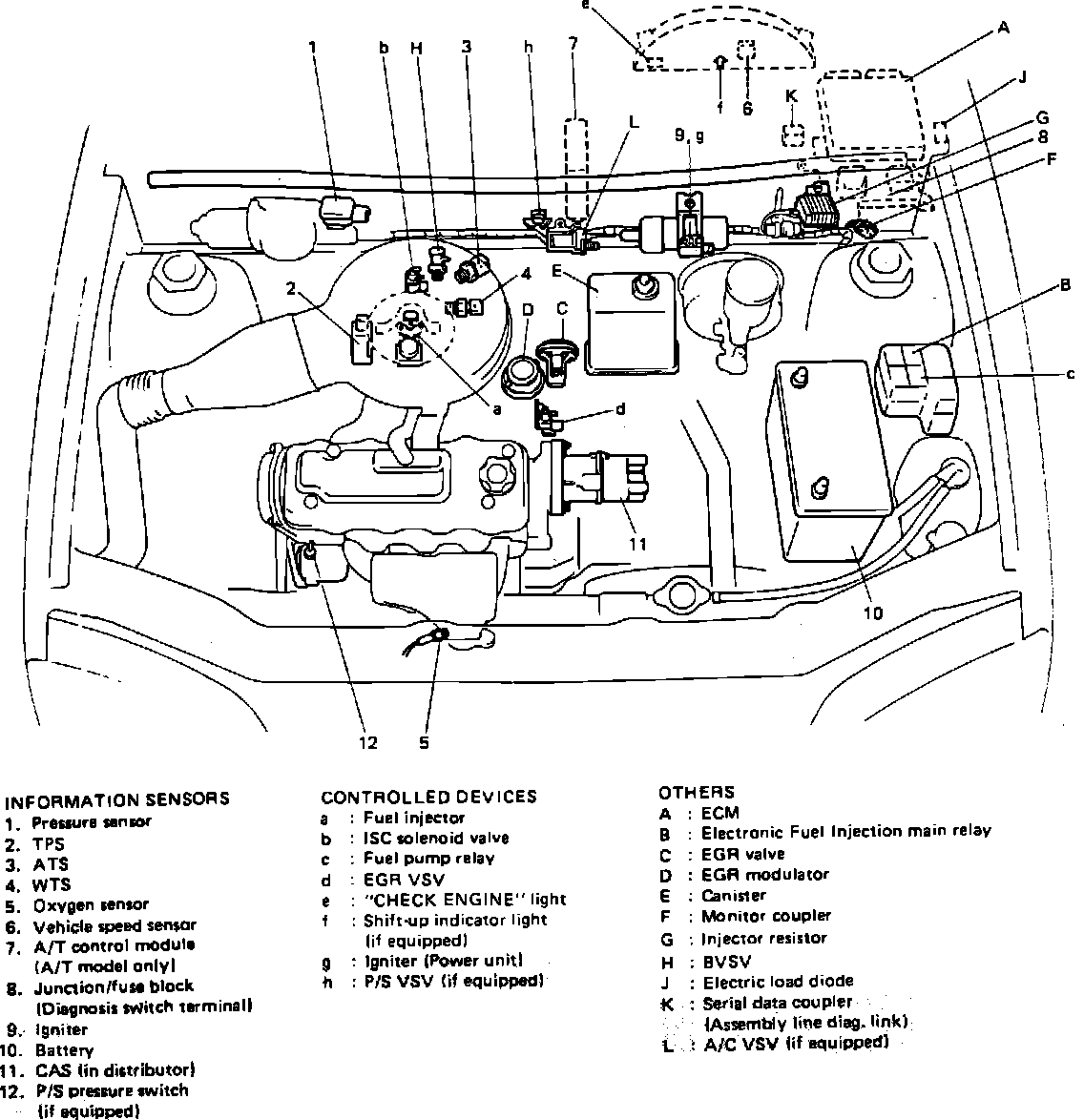

EFI Component Locations.:

Under Center Of I/P

Applicable to: 1992 Except GT
