Disassembly, Inspection and Assembly

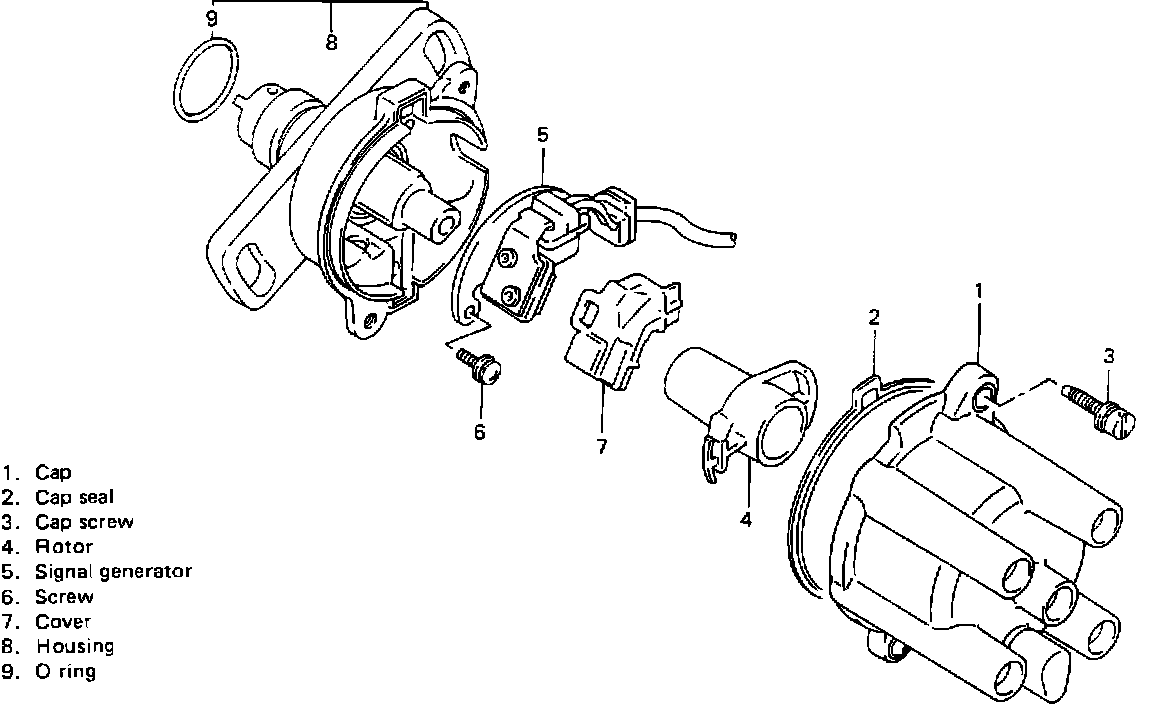

Distributor Components:





- Use the illustration as guide to service procedure.
- Adjust air gap prior to installation.
