Idle Speed - Adjustment And Specification, ISC Duty

9215suzuki01

Division: Automotive

Category: Technical


TSB No.: TS 4-15 12171

Section Title: Engine


SUBJECT: UPDATED ADJUSTMENT PROCEDURE AND SPECIFICATION FOR IDLE SPEED AND IDLE SPEED CONTROL (ISC) DUTY
MODEL: SOHC
YEAR: 1992 AND LATER

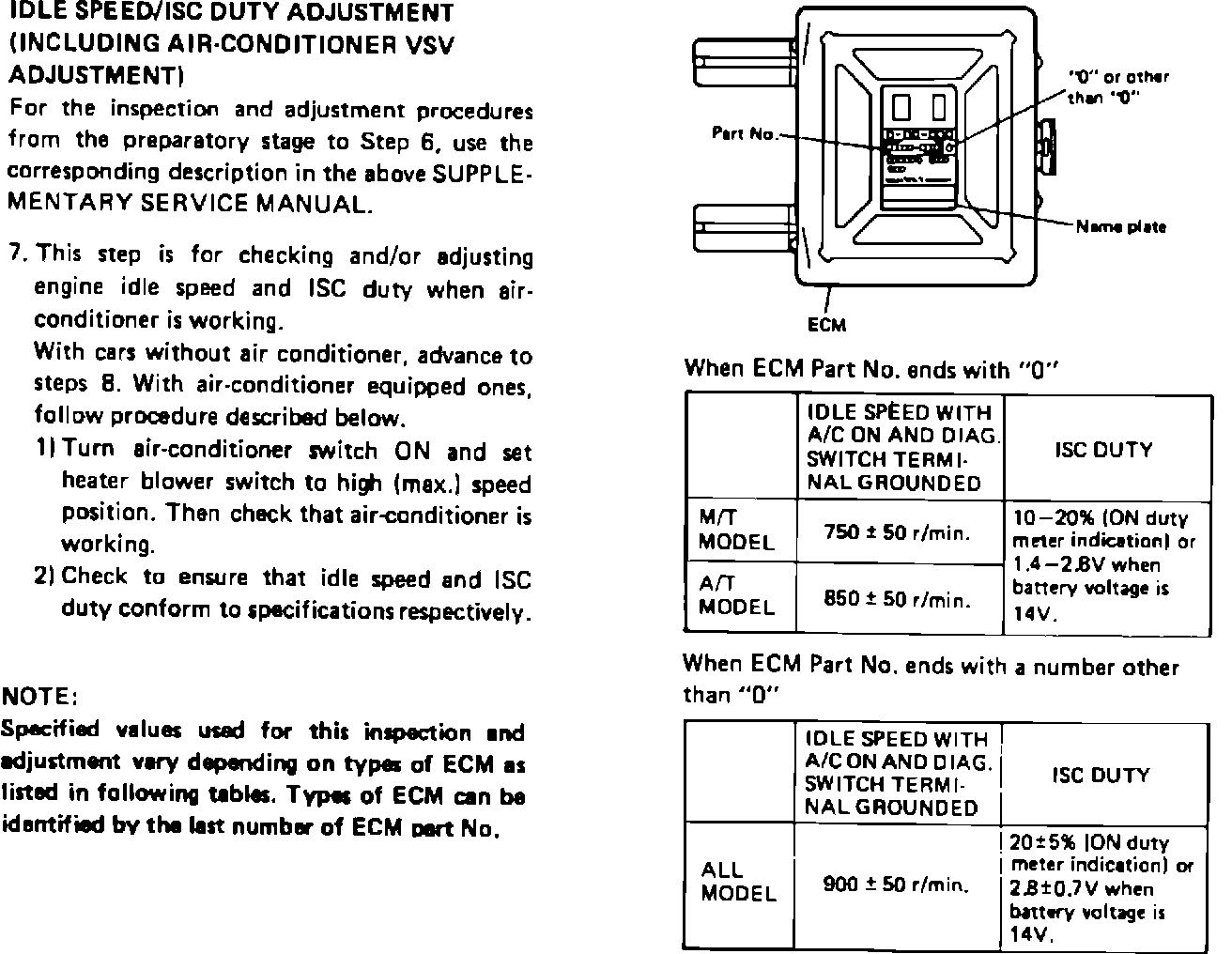

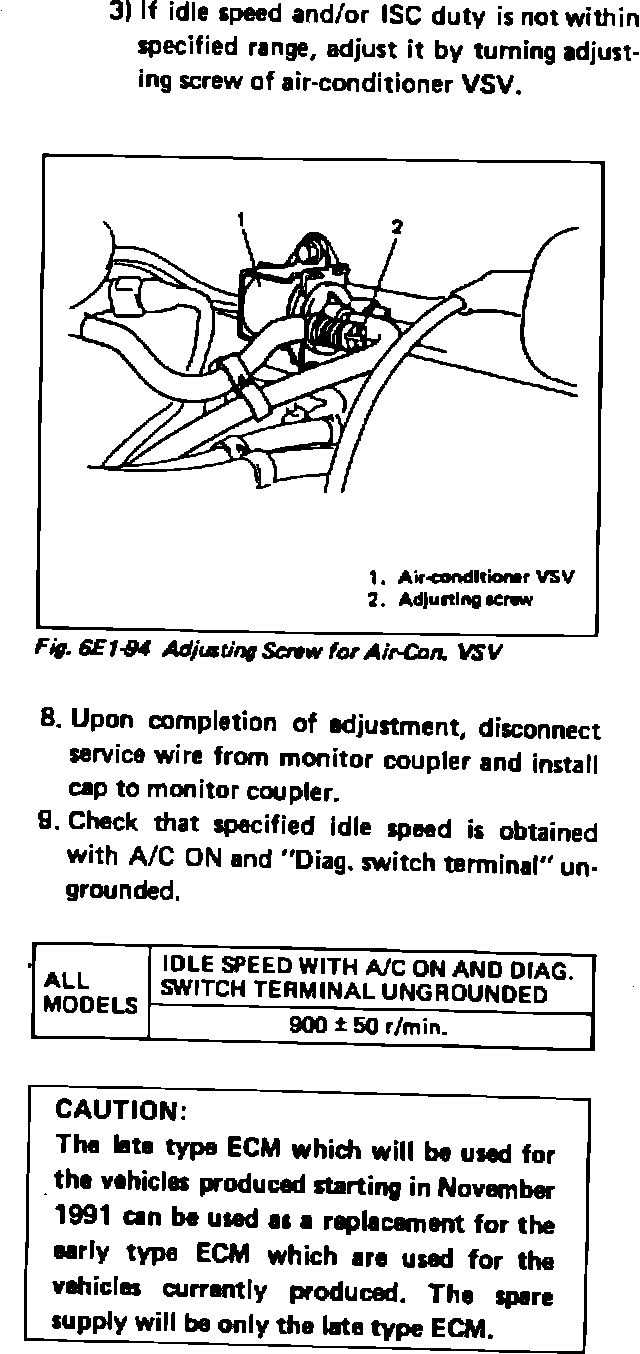

The specifications and adjustment procedure on pages 6E1-70 and 6E1-71 of the 1992 Supplementary Service Manual (99501-64B10-33E) for the idle speed and idle speed control(ISC) duty have been updated. The updated specifications and procedure are listed. Be sure to update your manual accordingly.
