Timing Component Alignment Marks: Locations

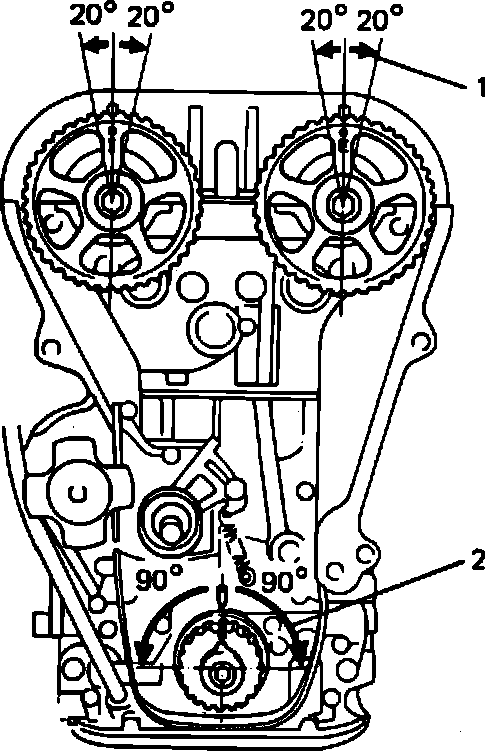

Fig. 12 Allowable Turning Range Of Timing Belt Pulleys:

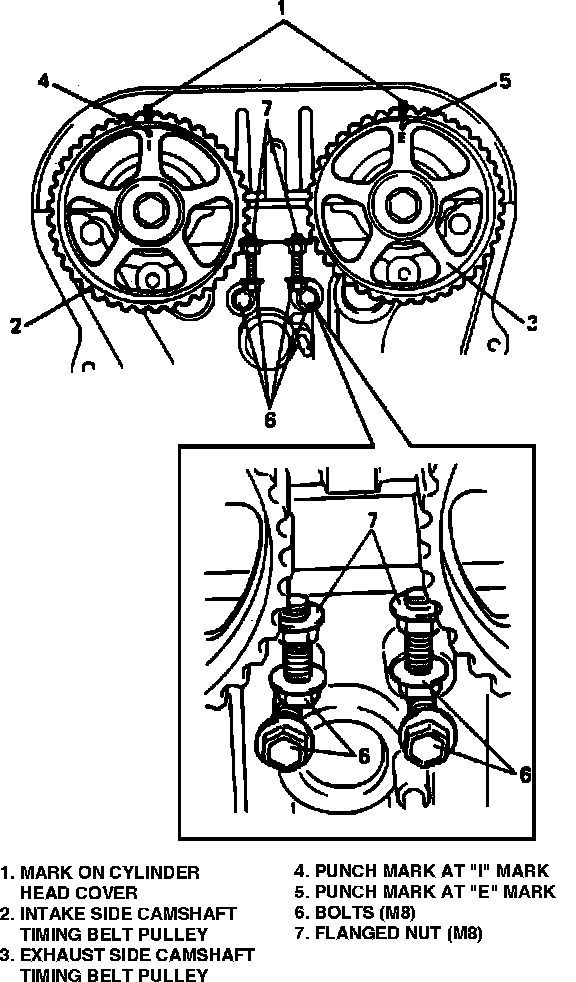

Fig. 13 Holding Camshaft Pulley On Timing Marks:

CAUTION: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

For complete Timing Belt Removal and Installation information: Service and Repair
