Front Pads

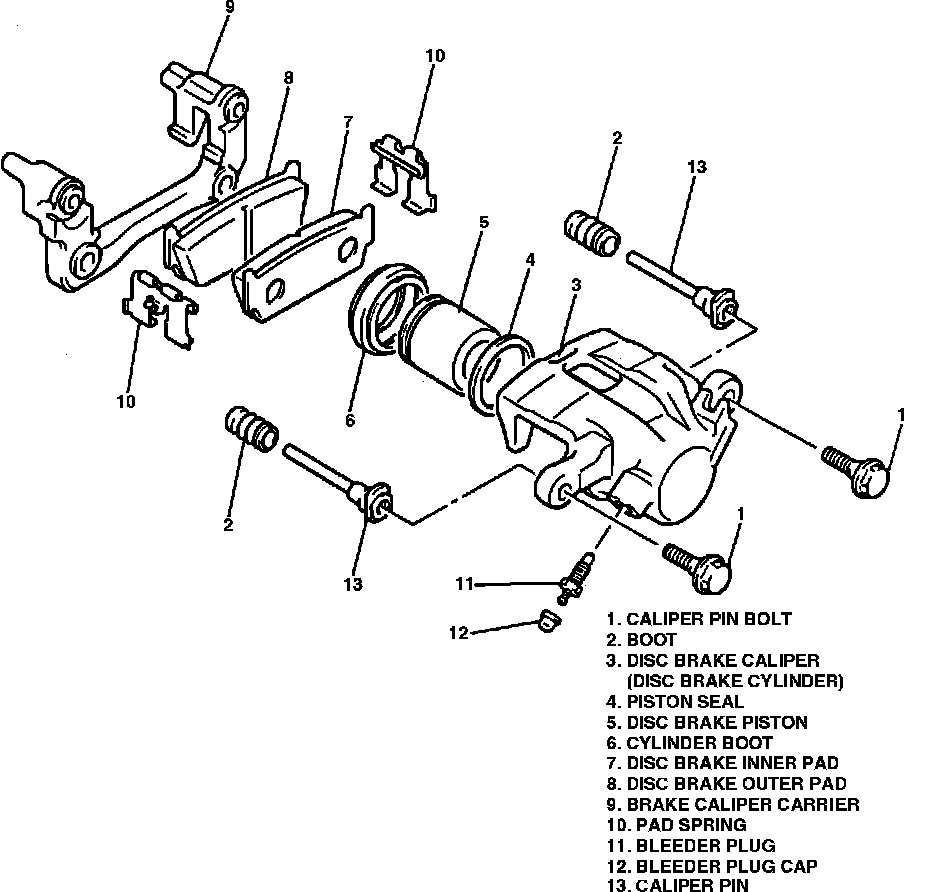

Fig. 3 Exploded View Of Front Caliper Assembly:

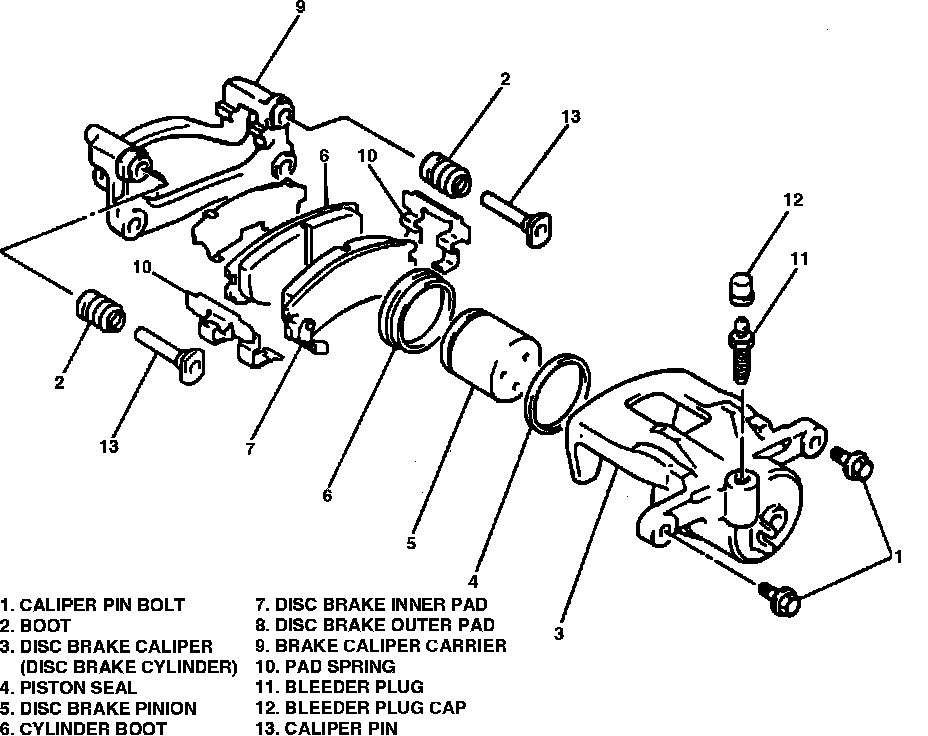

Fig. 4 Exploded View Of Front Caliper Assembly:

1. Raise and support vehicle, then remove wheels.
2. Remove caliper pin bolts, Figs. 3 and 4.
3. Remove caliper from caliper carrier. Hang removed caliper with wire hook to prevent damage to brake hose.
4. Remove pads.
5. Reverse procedure to install, torquing caliper pin bolts to specifications.
