MODIFICATION OF THROTTLE BODY AND GASKET

TECHNICAL SERVICE BULLETIN

MODIFICATION OF THROTTLE BODY AND GASKET

Model(s): Suzuki Swift SOHC, September 1992 and later

Bulletin No.: TS 4-17 12102

Division: Automotive

Category: Technical

Section Title: Engine

CONDITION

Modification of throttle body and gasket.

CAUSE

Improved driveability.

CORRECTION

When replacing throttle body and gasket, use updated parts as listed in this bulletin.

This bulletin is to inform you of the modification of the throttle body and gasket which has been carried out since September 1992 production. These modifications were made to improve rough idle conditions and provide a smoother transition from idle to open throttle. When replacing these parts, please use the updated part numbers as listed in this bulletin.

EFFECTIVE VIN NUMBERS

JS2AC35S_P5101224-

JS2AE35S_P5101050-

MODIFIED PARTS

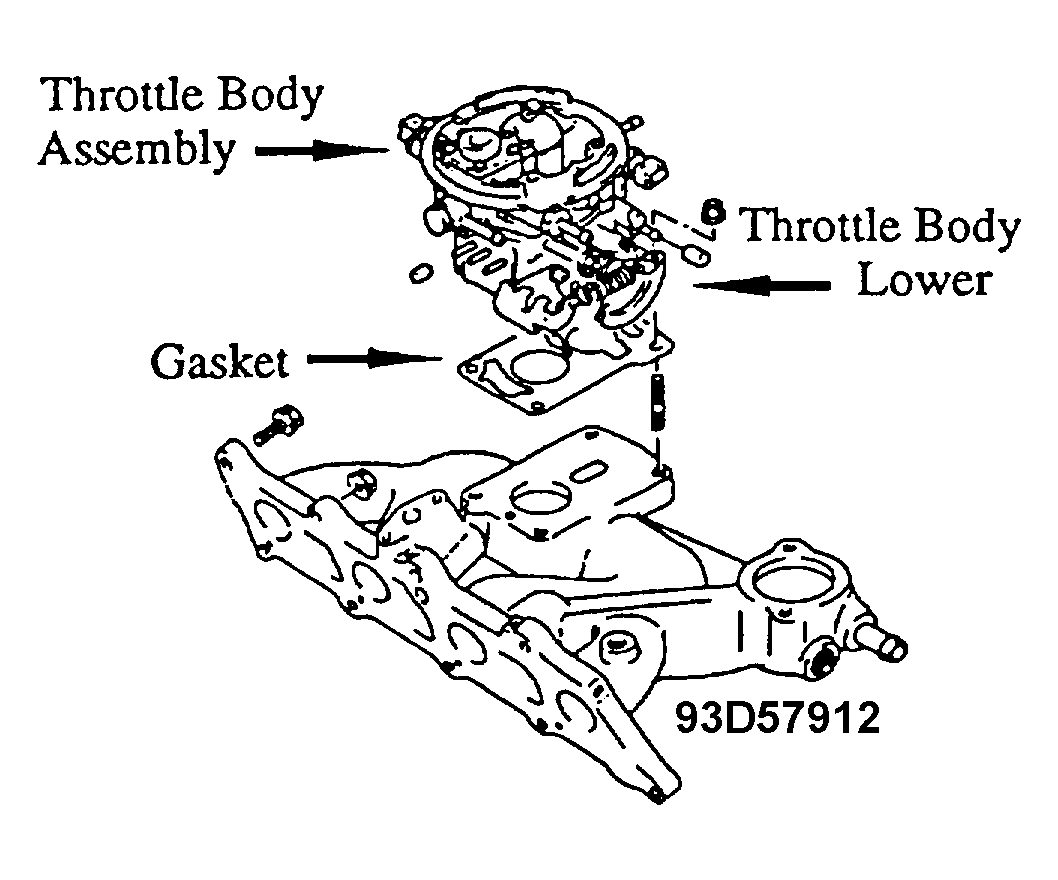

Refer to Fig 1 .

1. Throttle body assembly
2. Lower throttle body
3. Gasket

MODIFICATION DETAIL

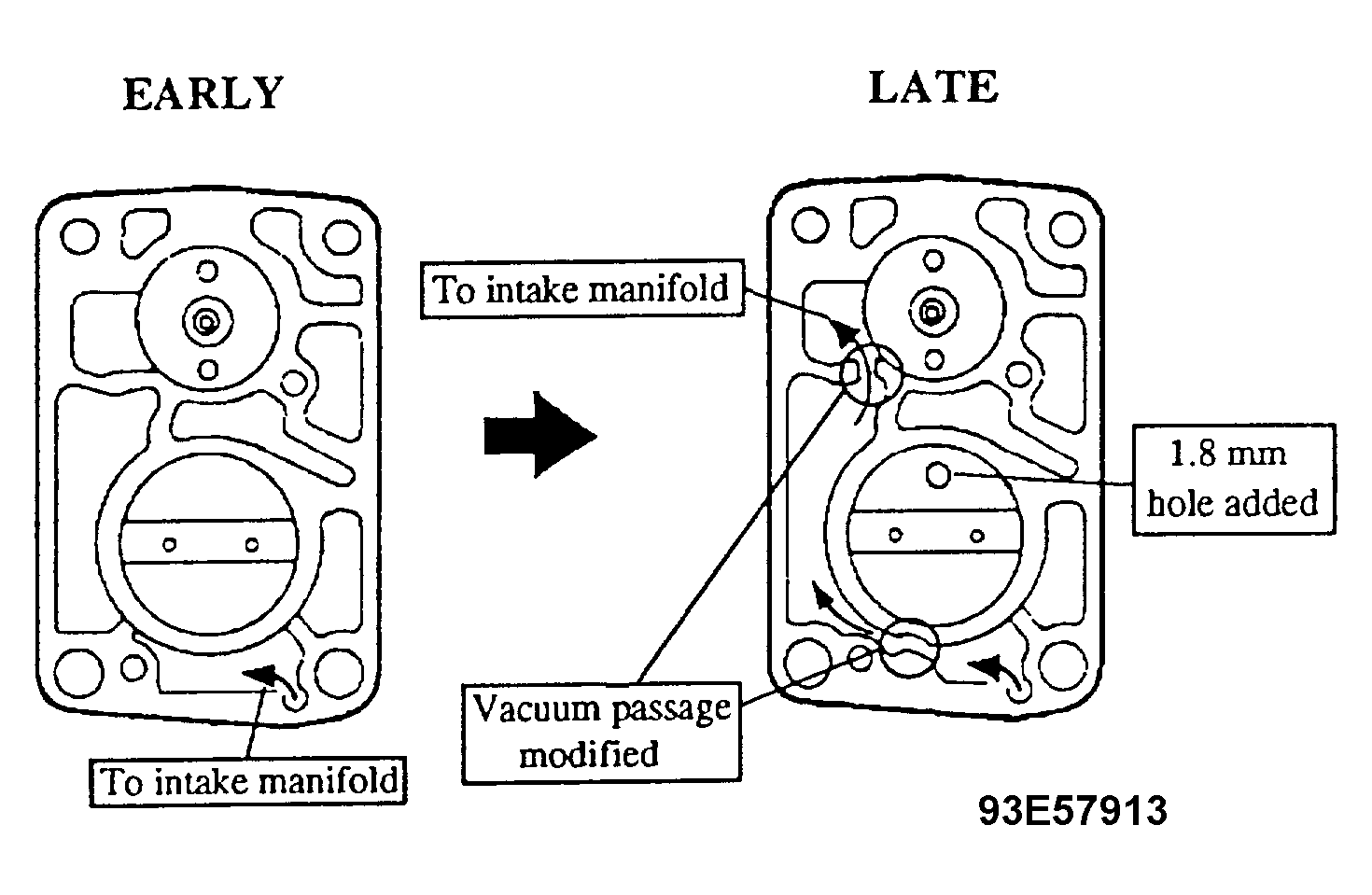

Throttle body assembly (viewed from underside). See Fig 2 .

• Vacuum passage modified.
• 1.8 mm hole added to throttle valve in lower throttle body.

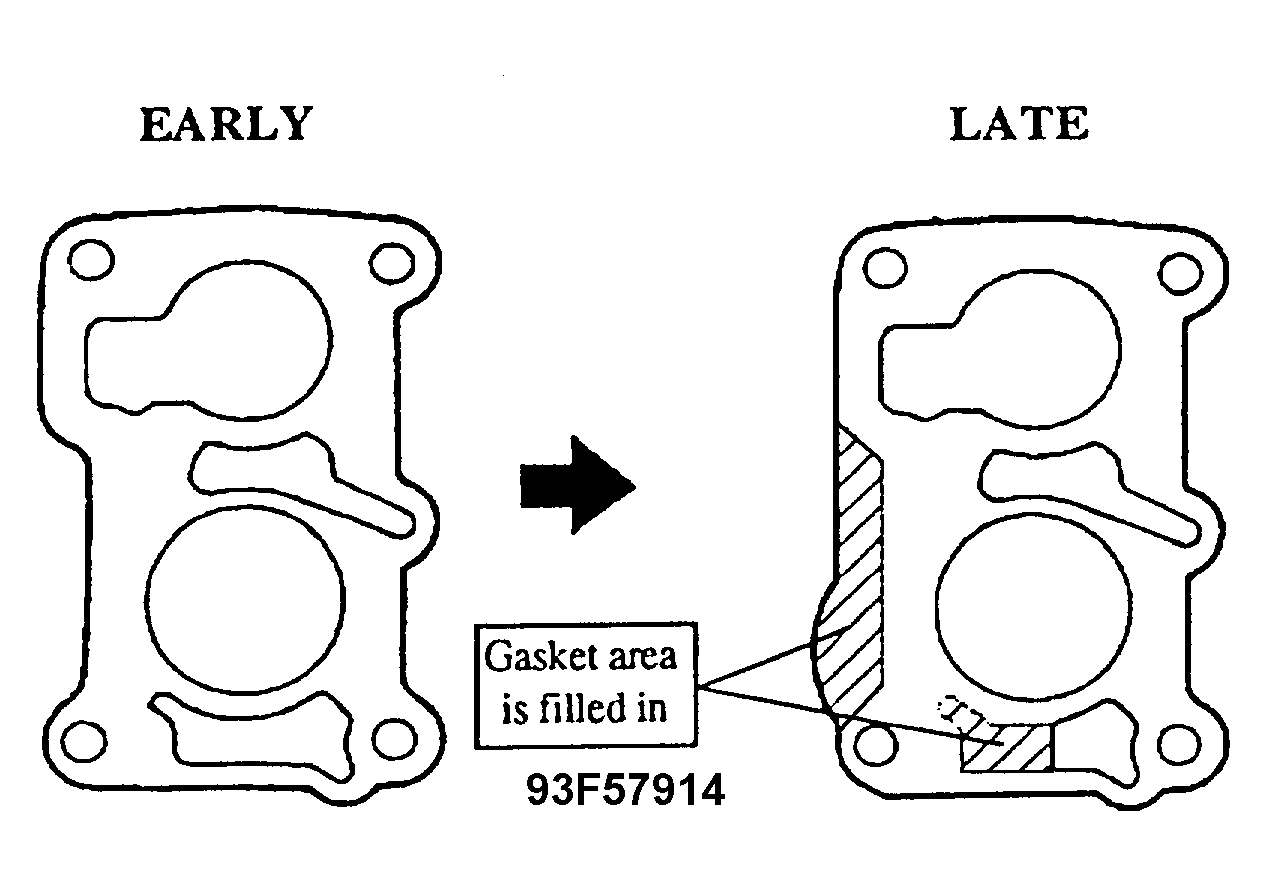

Gasket (viewed from underside) See Fig 3 .

• Gasket area enlarged to change vacuum passage

PARTS SUPPLY DATA

REF #	PART NAME	TRAN	EARLY PART NO	LATE PART NO.	#	SUPPLY OF SPARE PARTS
1	Throttle body Assy.	M/T	13400 63E00	13400 63E60	1	Both early and late
1	Throttle body assy.	A/T	13400 63E10	13400 63E21	1	Both early and late
1-1	Throttle lower body Assy.	M/T	13402 63E00	13402 63E60	1	Both early and late
1-1	Throttle lower Body assy.	A/T	13402 63E10	13404 63E21	1	Both early and late
2	Gasket gasket. A/T = Automatic Transmission M/T = Manual Transmission	M/T- A/T	13421 60B00	13421 60E00	1	Both early and late
INTERCHANGEABILITY Ok as a set (Throttle body or lower body and
