M/T High Speed Synchronizer Keys Modification (TS 3-12 03112)
Publication date: 1970-01-01Reference number: TS 3-12 03112
M/T HIGH SPEED SYNCHRONIZER KEYS MODIFICATION
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 3-12 03112, Date of Issue:
MODIFICATION OF HIGH SPEED SYNCHRONIZER KEYS
Model: MARCH 1991 AND LATER PRODUCTION SUZUKI SWIFT, MANUAL TRANSMISSION
Bulletin No.: TS 3-12 03112
Group: Manual Transmission
SERVICE INFORMATION

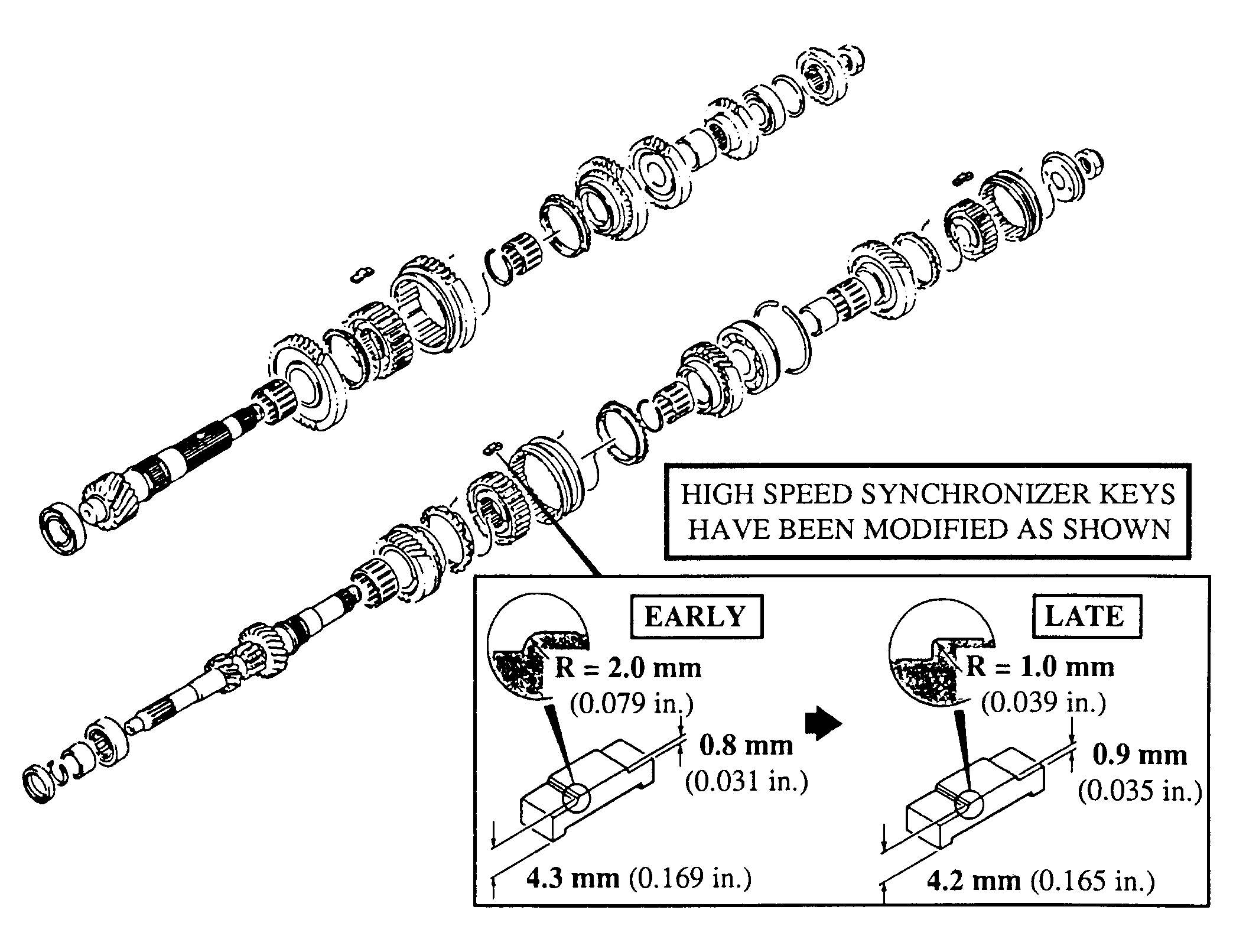

The affected model(s) have had a modification of High Speed Synchronizer Keys.
AFFECTED MODELS
AFFECTED VEHICLE IDENTIFICATION NUMBERS
3 DOOR....JS2AC35S M5101194
GT............JS2AC34S M5100940
4 DOOR....JS2AE35S M5101177
PARTS SUPPLY INFORMATION
| PART NAME | EARLY PART NO. | LATE PART NO. | INTERCHANGEABILITY |
|---|---|---|---|
| High Speed Synchronizer Key | 09422-05013 | 24472-60B00 | Early <--O--> Late as a set |
CAUTION:
When replacing any of these synchronizer keys on a vehicle, make sure that early and late types are not intermixed!
