Wiring Diagrams

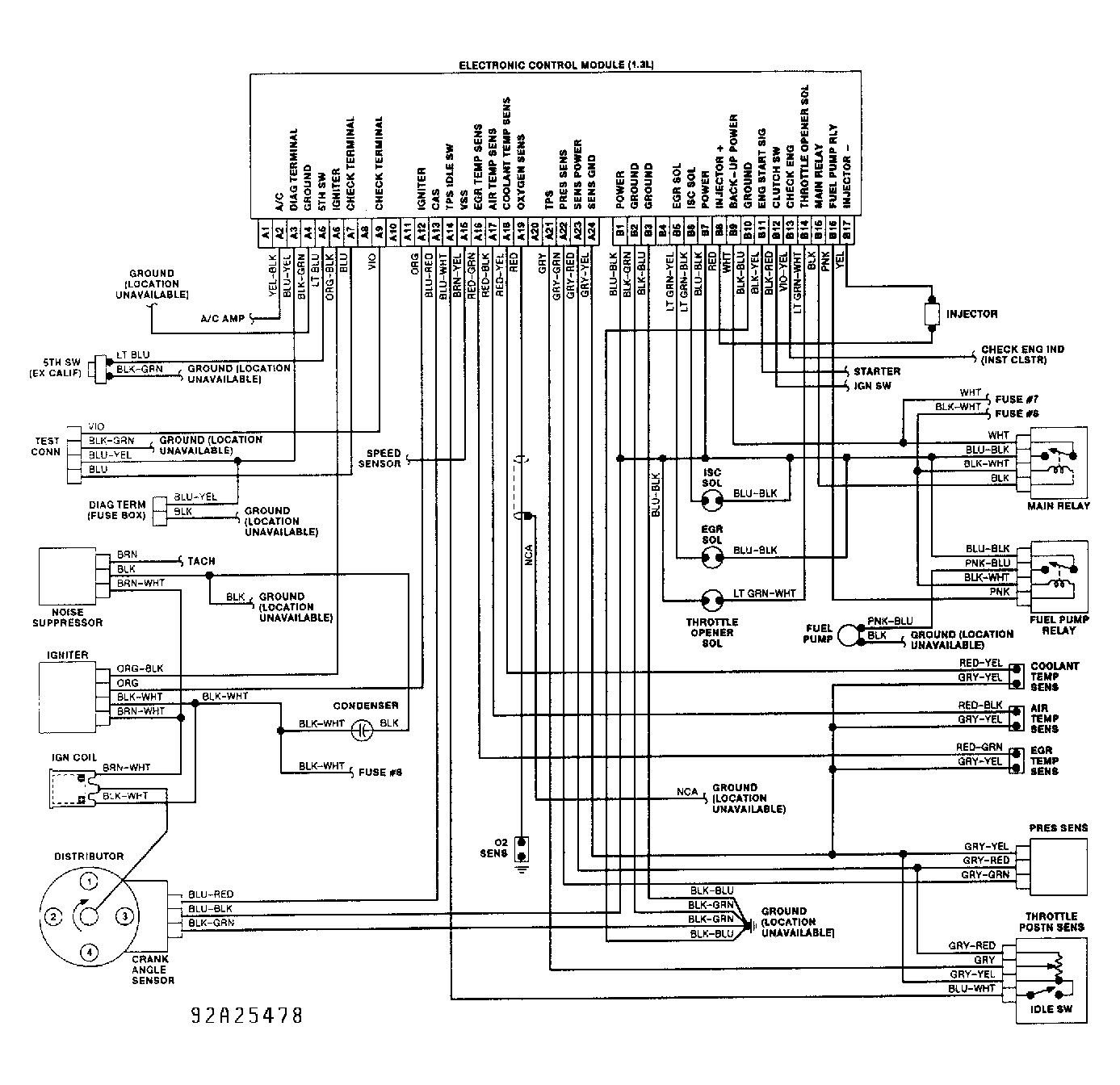

Fig 1: Wiring Diagram (Samurai 1.3L TBI)

G92A25478

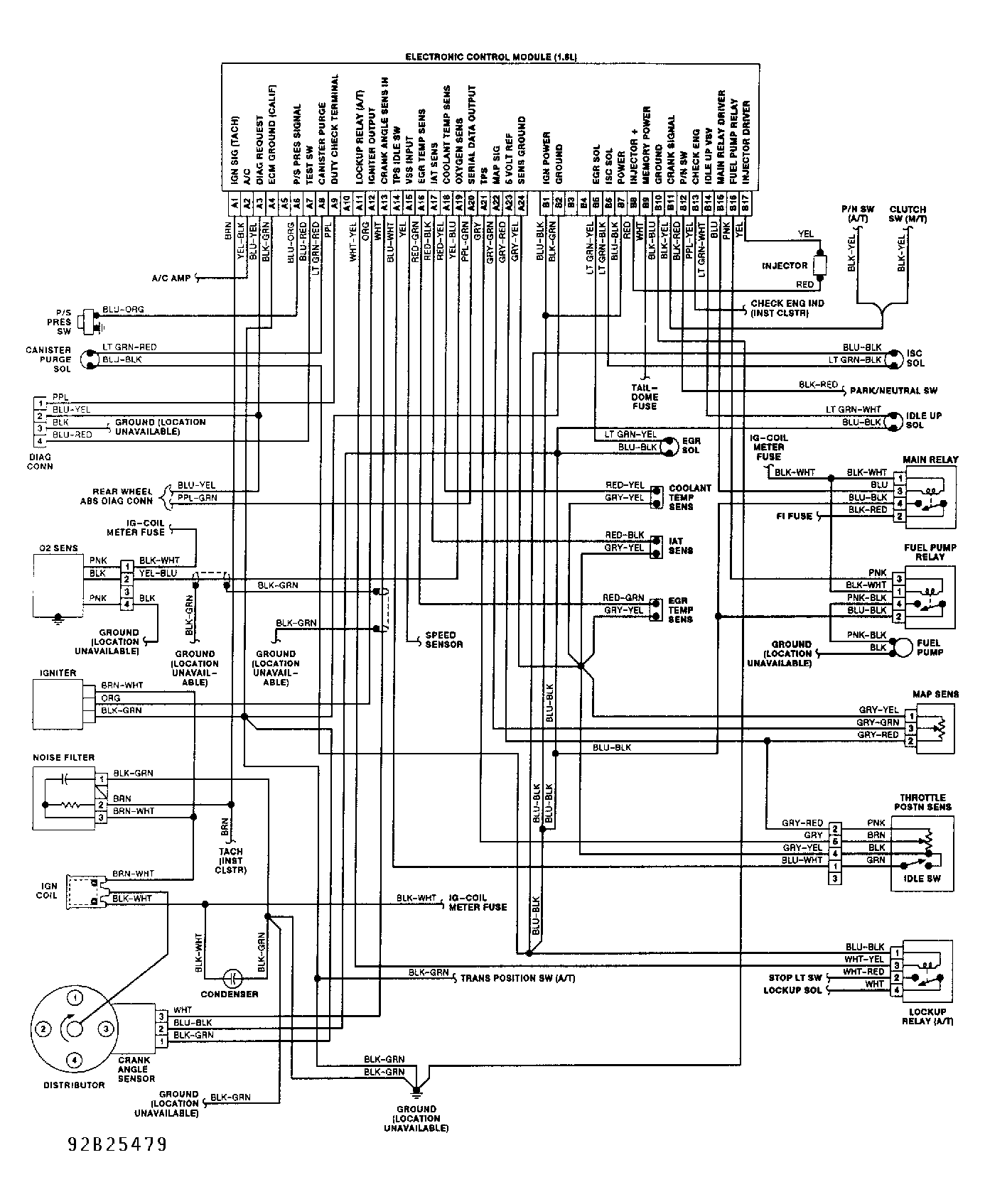

Fig 2: Wiring Diagram (Sidekick 1.6L TBI)

G92B25479

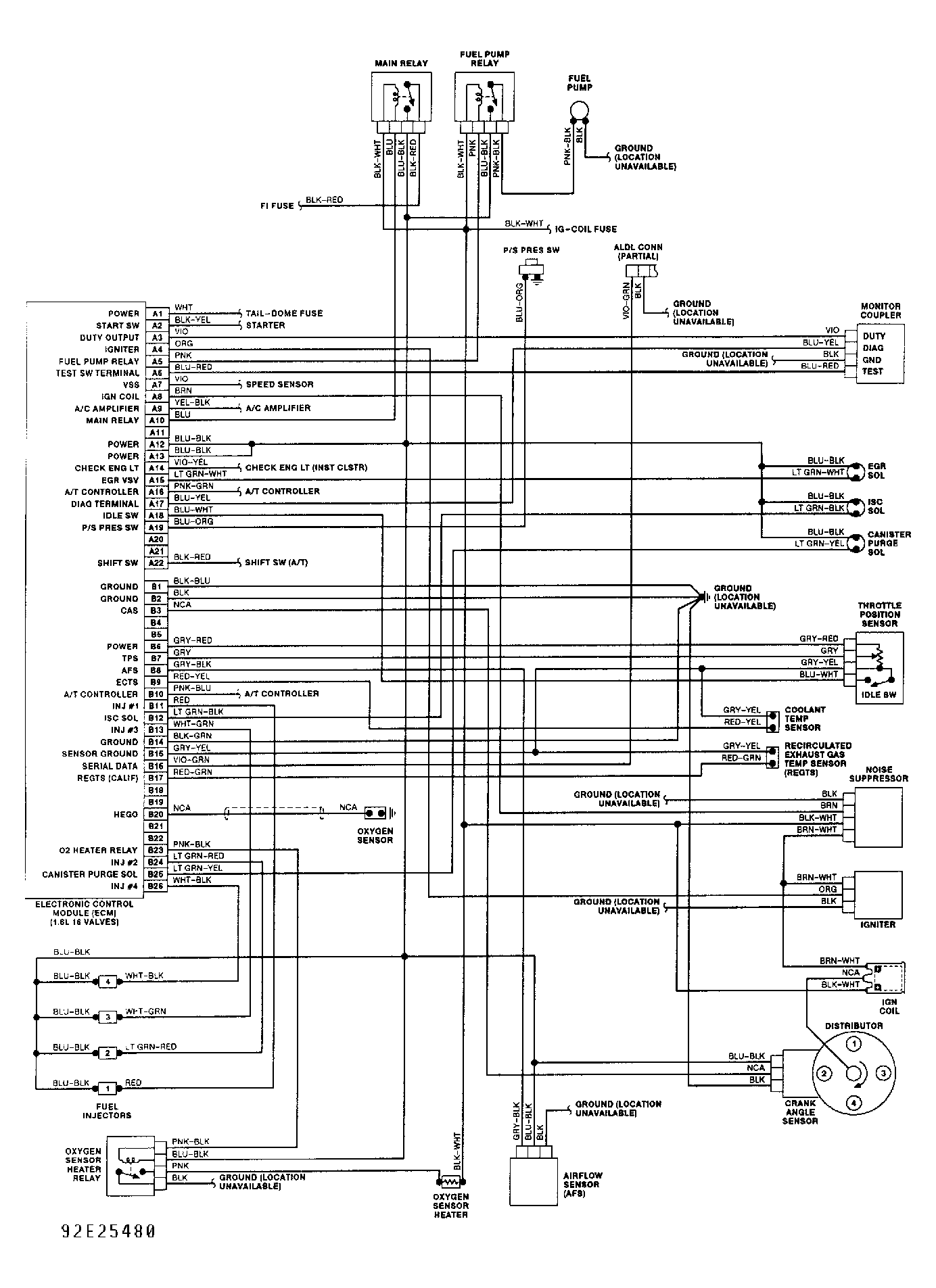

Fig 3: Wiring Diagram (Sidekick 1.6L 16-Valve PFI)

G92E25480

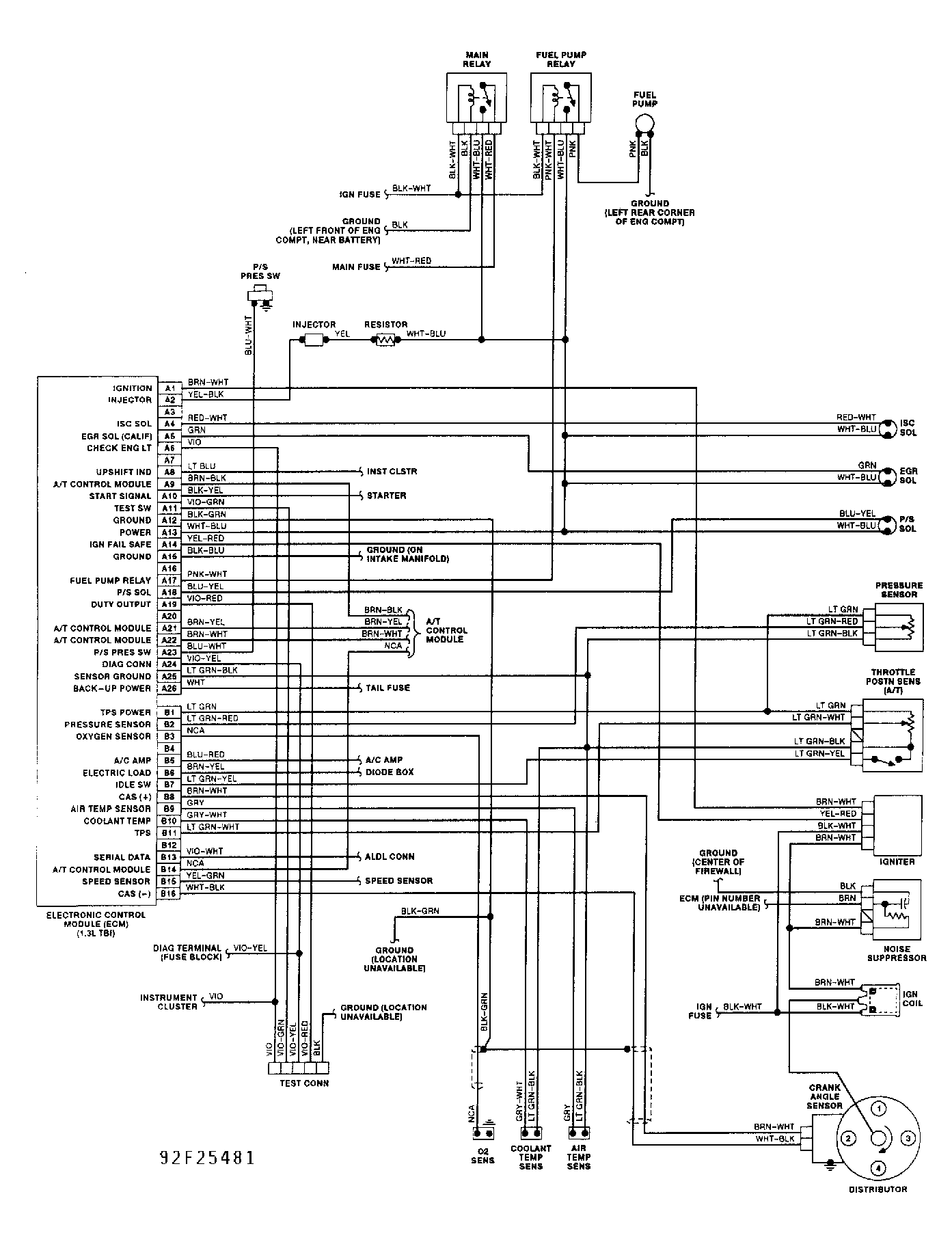

Fig 4: Wiring Diagram (Swift 1.3L SOHC TBI)

G92F25481

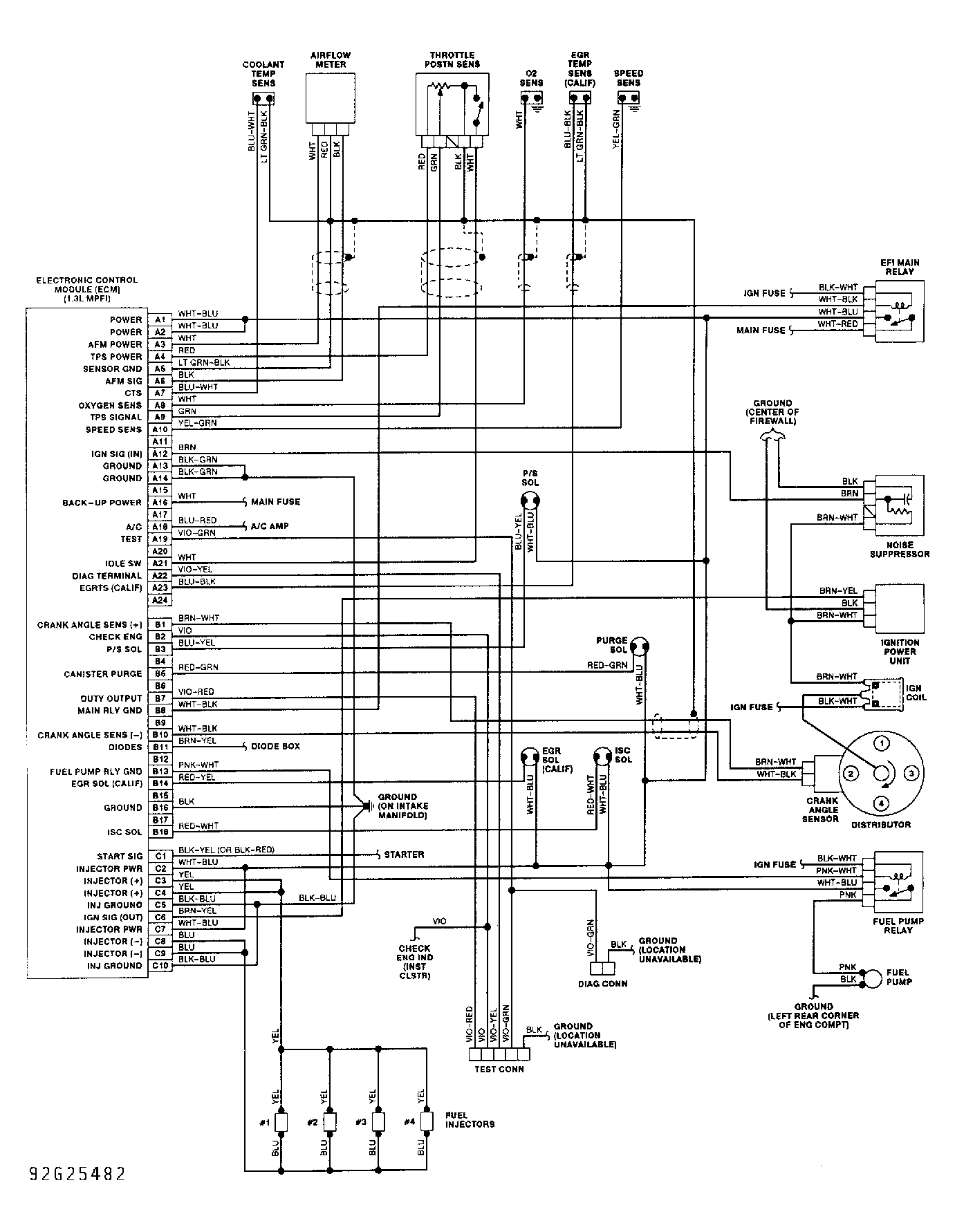

Fig 5: Wiring Diagram (Swift 1.3L DOHC 16-Valve PFI)

G92G25482
