MODIFICATION OF FRONT ENGINE MOUNTS

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 4-17 10232, Date of Issue:

MODIFICATION OF FRONT ENGINE MOUNTS

Model(s): 1991-92 Suzuki Sidekick

Division: Automotive

Category: Technical

Section: Engine

Bulletin No.: TS 4-17 10232

CONDITION

Change in front engine mounts.

CAUSE

Factory modification

CORRECTION

Use updated parts as listed in this bulletin.

This bulletin is to inform you of the modification of the front engine mounts which has been carried out since June 1992 production. When replacing these mounts, please use the new part numbers as listed in this bulletin.

EFFECTIVE VIN NUMBERS

JS3TA01C_N4140573- JS3TE01V_P4100001-

JS3TA01C_P4140001- JS3TE02V_P4100001-

JS3TA01V_P4140824- JS3TD02V_N4111142-

JS3TA01V_P4140001- JS3TD02V_P4100001-

JS3TE01V_N4100626- JS3TD03V_P4100010-

MODIFIED PARTS (refer to Fig 1 )

Engine front mounting (Passenger's side - RH)
Engine front mounting (Driver's side - LH)
Front mounting cover

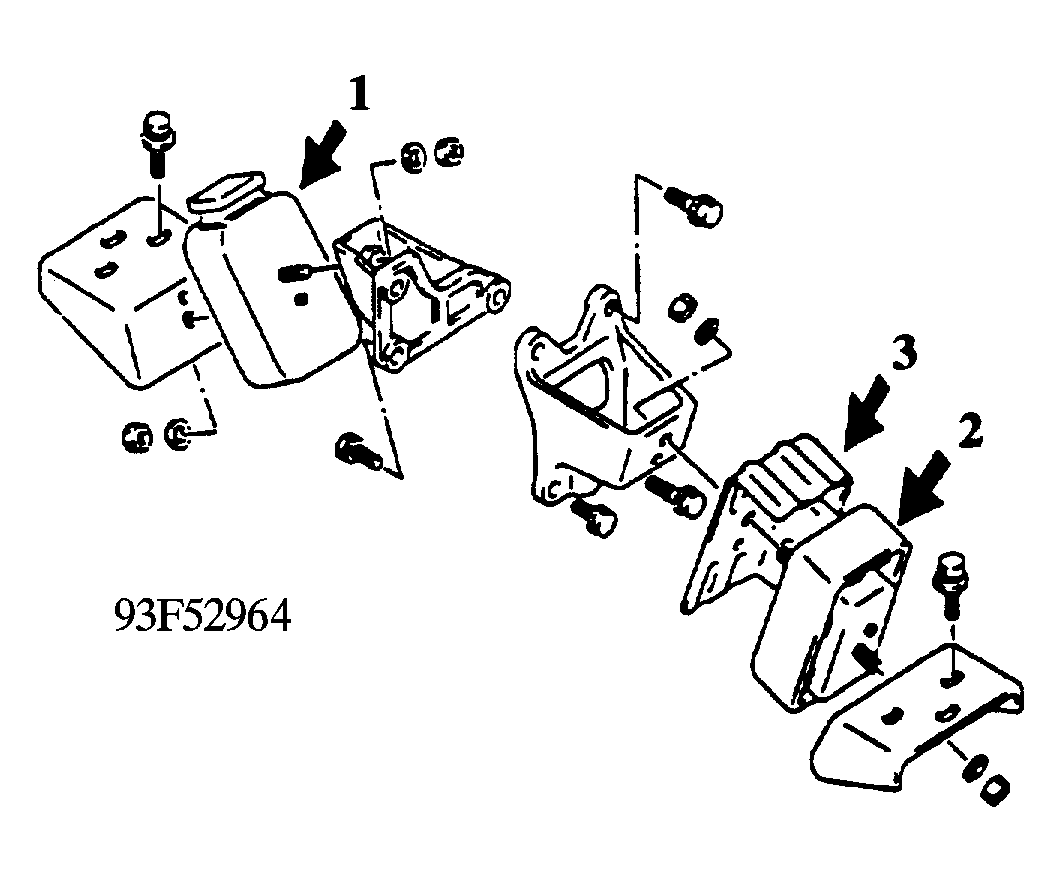

Fig 1: Front Engine Mounts Modified Parts

MODIFICATION DETAIL (refer to Fig 2 )

Engine front mounting (RH)

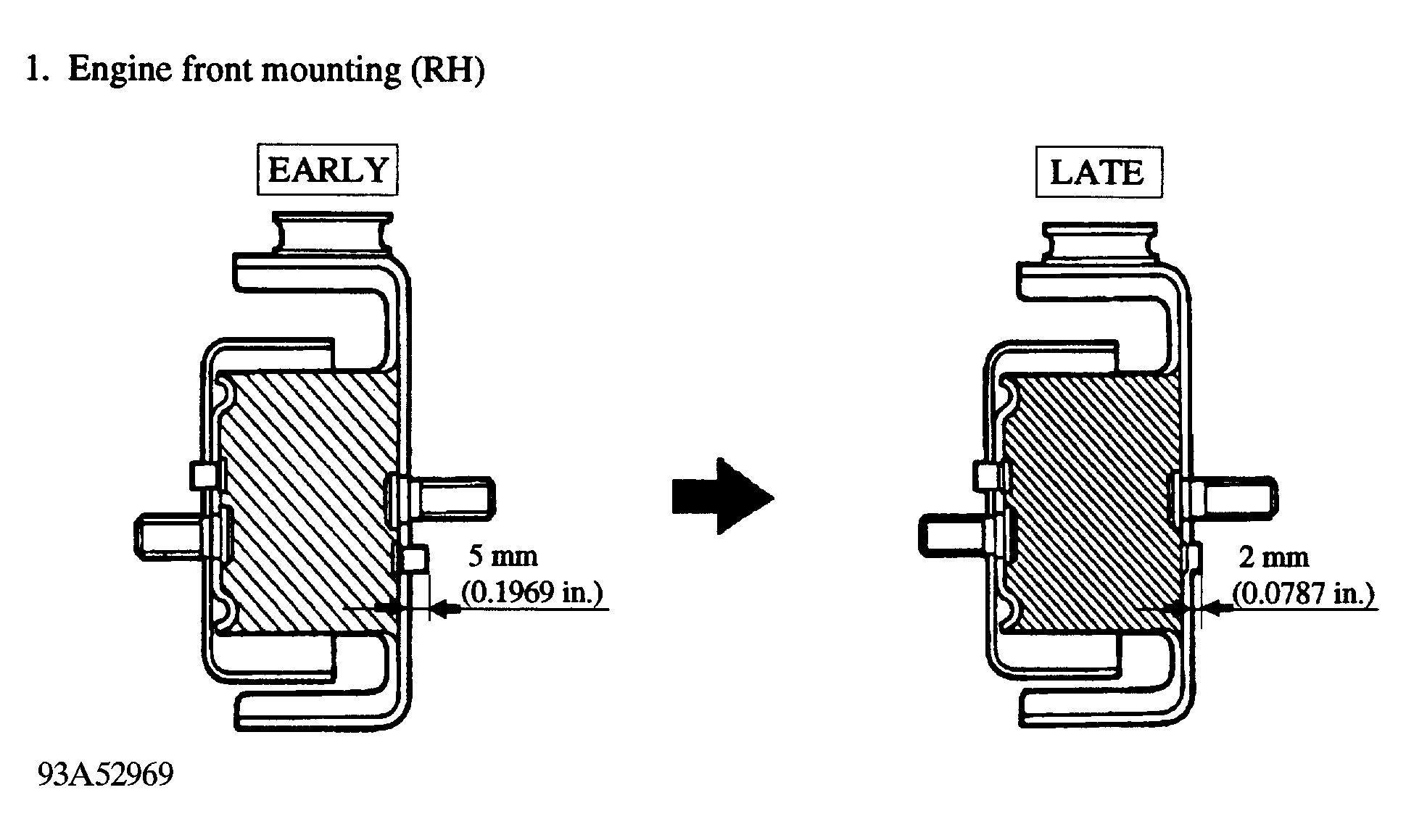

Fig 2: Modification Detail (RH Front Engine Mount)
Engine front mounting (LH)

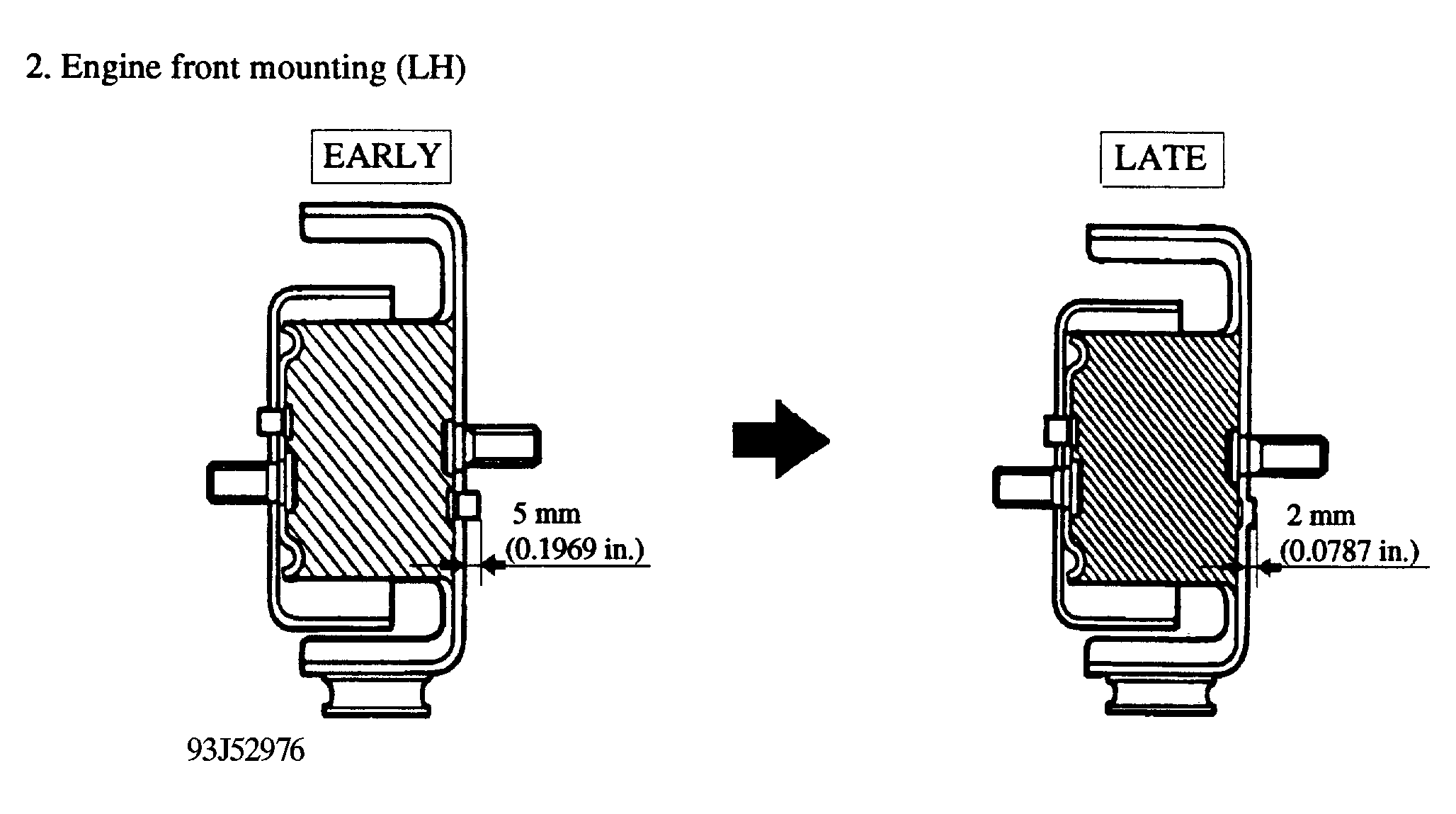

Fig 3: Modification Detail (LH Front Engine Mount)

SERVICING

Do not install the front mounting cover if the late type engine front mounting (LH) is used.

PARTS SUPPLY DATA

Ref #	Part Name	Early Part Number	Late Part Number	#	Note*
1	Engine front mounting RH	11610-56B00	11610-56B01	1	a
2	Engine front mounting LH	11620-56B00	11620-56B01	1	b
3	Front mounting cover	11681-56B01	---	1	c
NOTE: a. Only late part number will be available after early stock is depleted. Early part interchangeable with late part. b. Early part not interchangeable with late part. c. Early only.
