M/T FRICTION GEAR MODIFICATION
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 3-16 01152, Date of Issue:
MODIFICATION OF MANUAL TRANSMISSION FRICTION GEAR
Model(s): 1991 AND LATER SIDEKICK
Bulletin No.: TS 3-16 01152
Group: Manual Transmission
SERVICE INFORMATION
This Service Bulletin information on the modification of Manual Transmission Friction Gear
PARTS SUPPLY INFORMATION
| Part Name | Early P/N | Late P/N |
|---|---|---|
| Friction Gear Retainer | 24138-60A00 | 24138-60A01 |
| Friction Gear Retainer Pin | 09261-02002 | 09261-02010 |
|
NOTE:
Early and late parts can be interchanged as a set (both early parts used or both late parts used.)
|
||
INTERCHANGE INFORMATION
| Part Name | Interchangeability |
|---|---|
| Friction Gear Retainer | Early <-X-> Late |
| Friction Gear Retainer Pin | Early <-X-> Late |

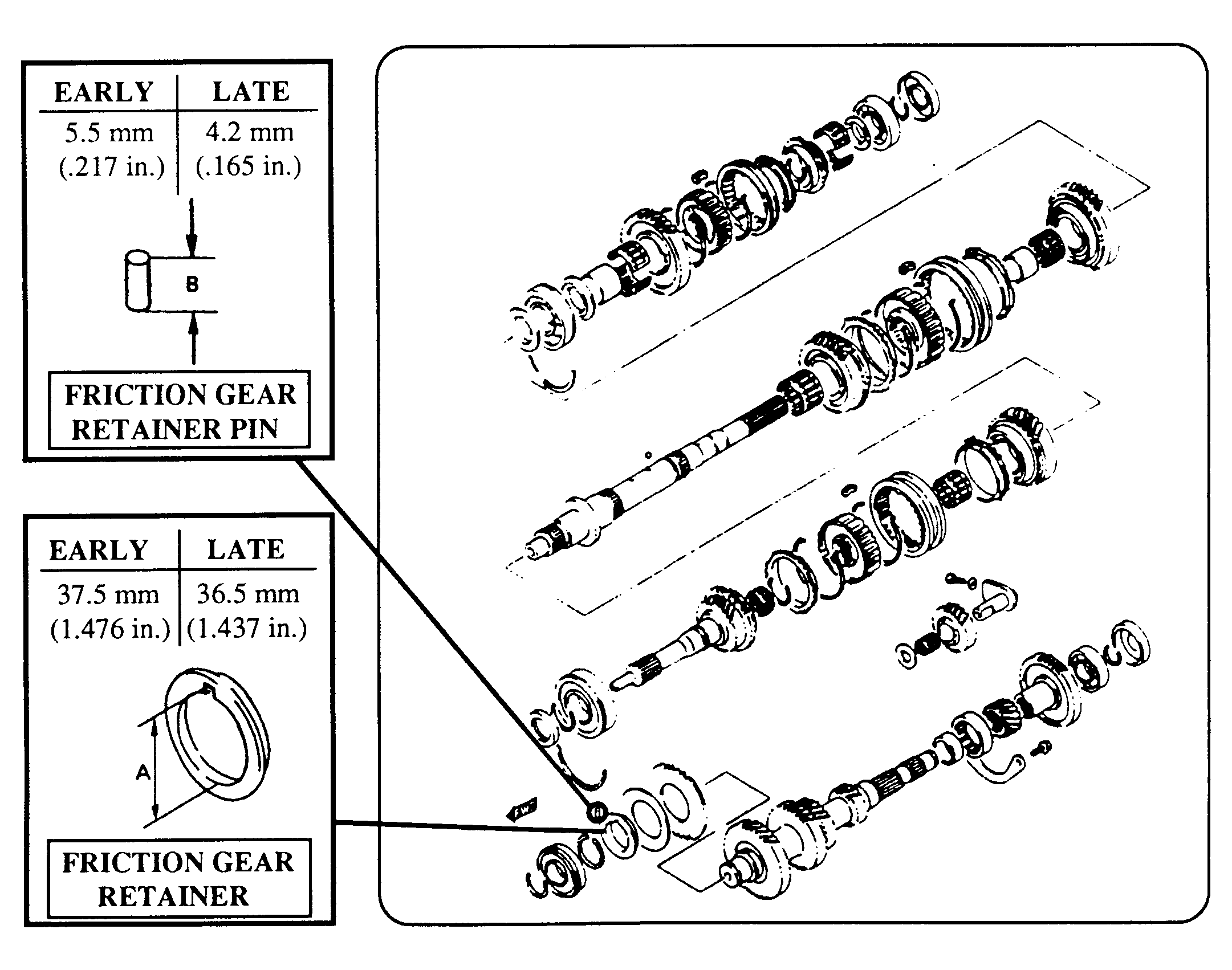

See Fig 1 for location and modification friction gear.
AFFECTED VEHICLE IDENTIFICATION NUMBERS
___________________________________________
JS3TA01C_M4 ..... 141943 and above
JS4TA01C_M4 ..... 141943 and above
JS3TC01C_M4 ..... 105875 and above
JS4TC01C_M4 ..... 105875 and above
JS3TD01V_M4 ..... 108618 and above
___________________________________________
