M/T 5TH GEAR SYNCHRONIZER KEYS MODIFICATION

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 3-15 11211, Date of Issue:

MODIFICATION OF 5TH SPEED SYNCHRONIZER KEYS

Model(s): 1991 AND LATER SIDEKICK, SINCE JUNE 1991 PRODUCTION

Bulletin No.: TS 3-15 11211

Group: Manual Transmission

SERVICE BULLETIN

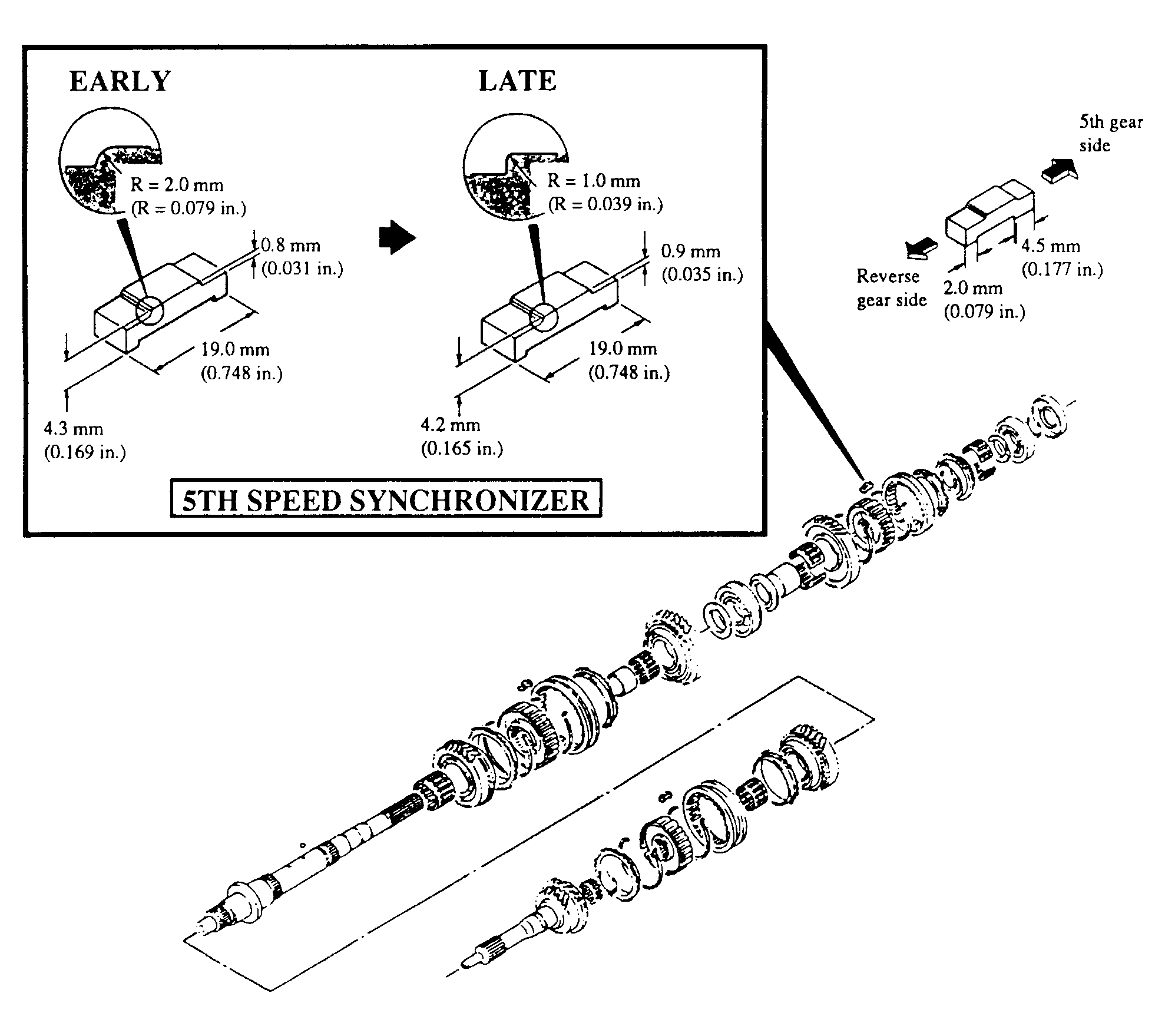

Fig 1: 5th Speed Synchronizer Key Modification

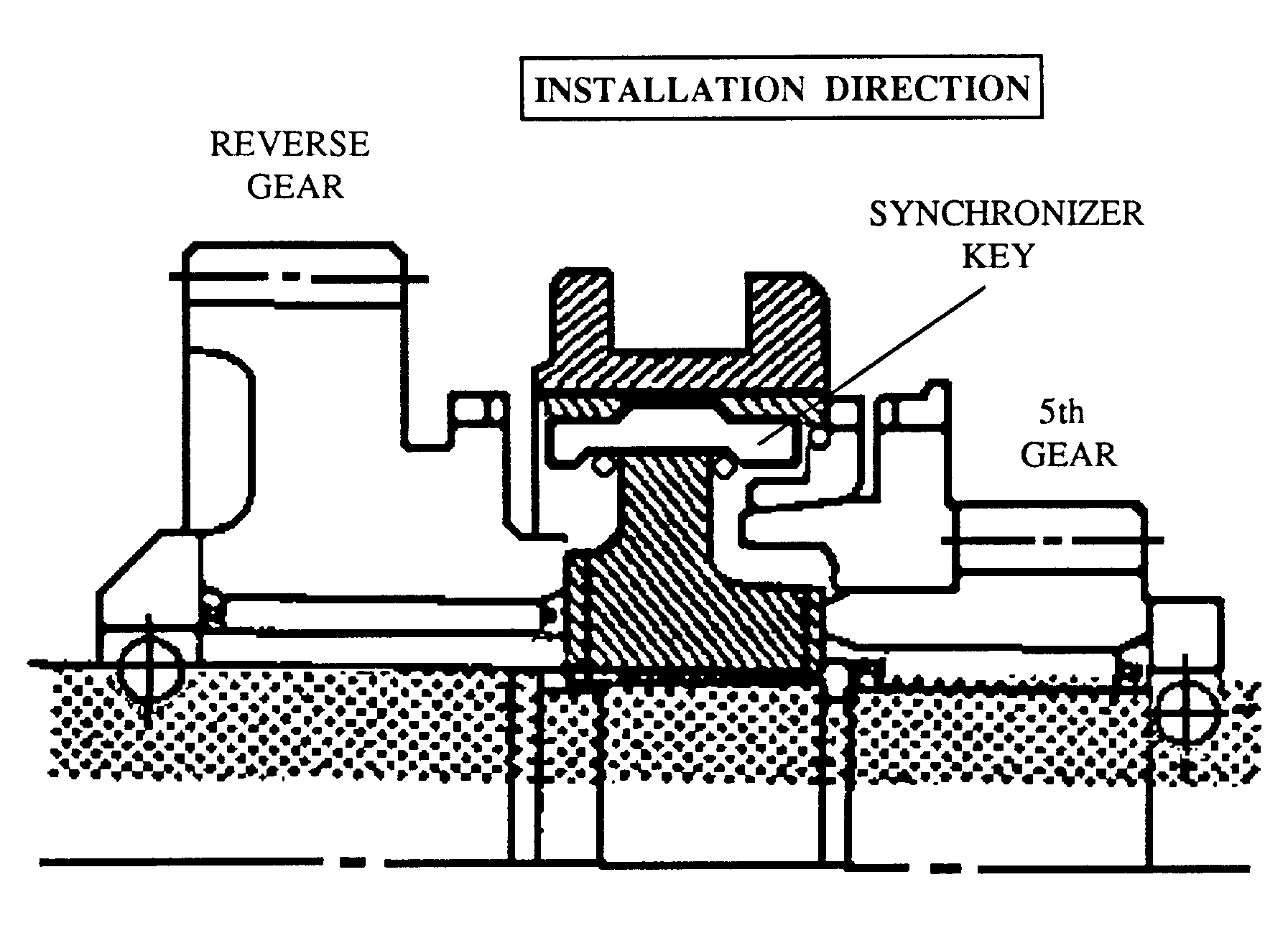

Fig 2: Synchronizer Key Installation

CAUTION: WHEN REPLACING ANY OF THE THREE SYNCHRONIZER KEYS ON A VEHICLE, MAKE CERTAIN THAT LATE AND EARLY TYPES ARE NOT MIXED.

Refer to Fig 1 and Fig 2 for 5th speed synchronizer keys location and installation direction.

PARTS INFORMATION

The early part number 09422-05012 and the late part number 24473-70D00 can be interchanged only as a complete set. Only late part number will be stocked after early stock is depleted.

VIN INFORMATION

____________________________________________

AFFECTED VEHICLE IDENTIFICATION NUMBERS:

____________________________________________

JS3TA01C_M4 ..... 142042 ... AND ABOVE

JS4TA01C_M4 ..... 142042 ... AND ABOVE

JS3TC01C_M4 ..... 105875 ... AND ABOVE

JS4TC01C_M4 ..... 105875 ... AND ABOVE

____________________________________________
