Vacuum Hose Diagram(S)

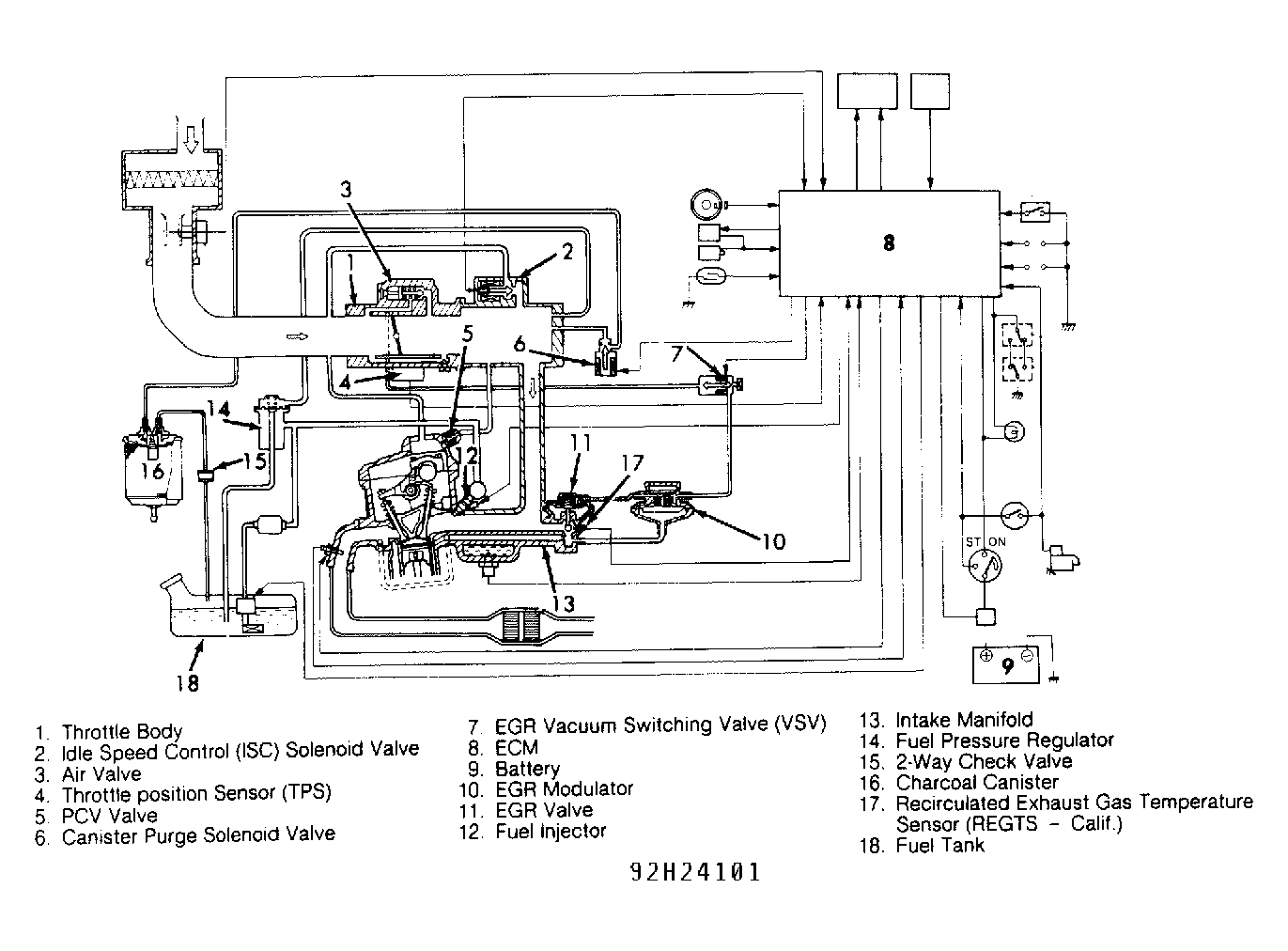

Fig 1: Vacuum Diagram (Samurai 1.3L)
Courtesy of SUZUKI OF AMERICA CORP.

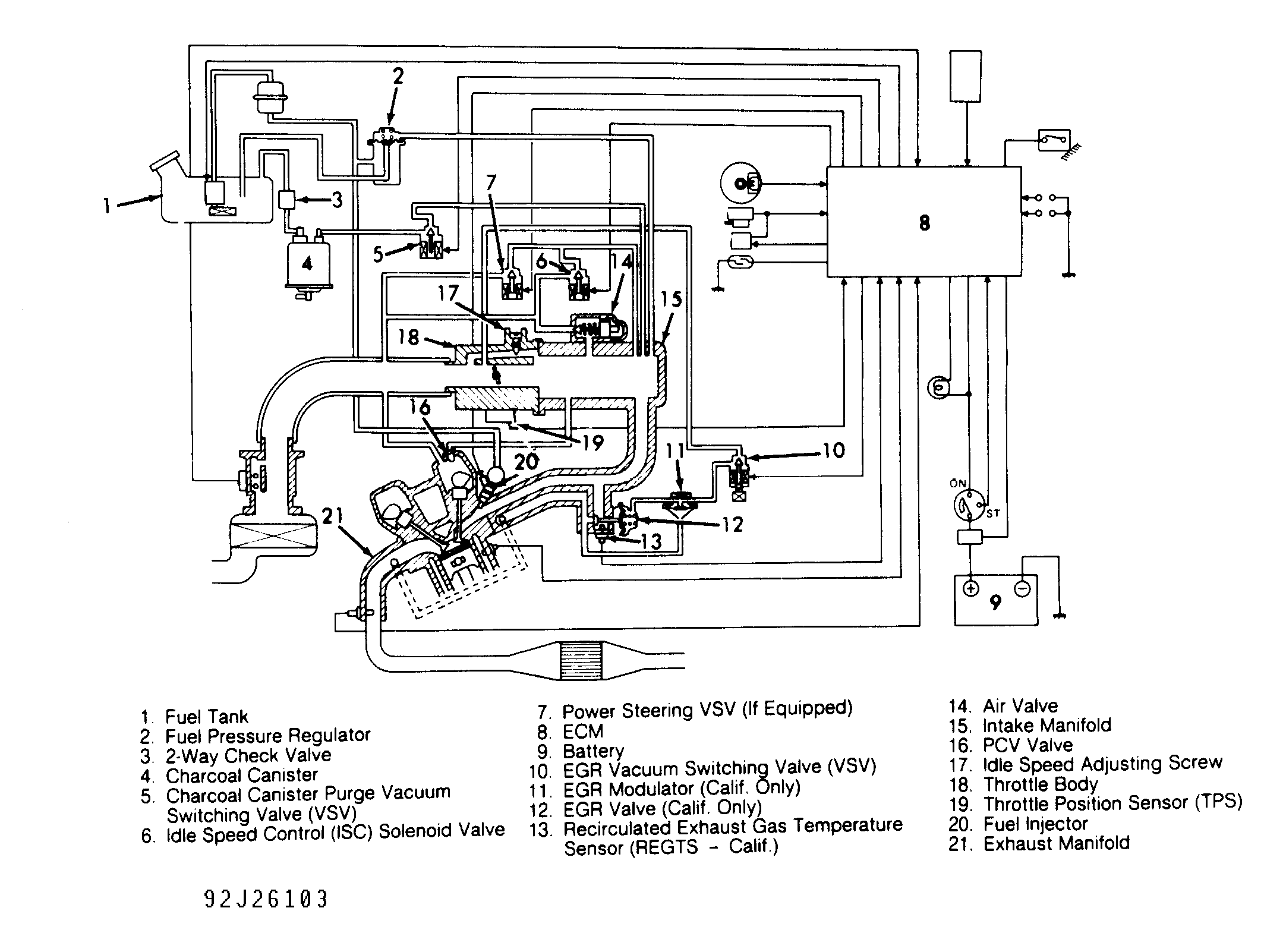

Fig 2: Vacuum Diagram (Sidekick 1.6L PFI)
Courtesy of SUZUKI OF AMERICA CORP.

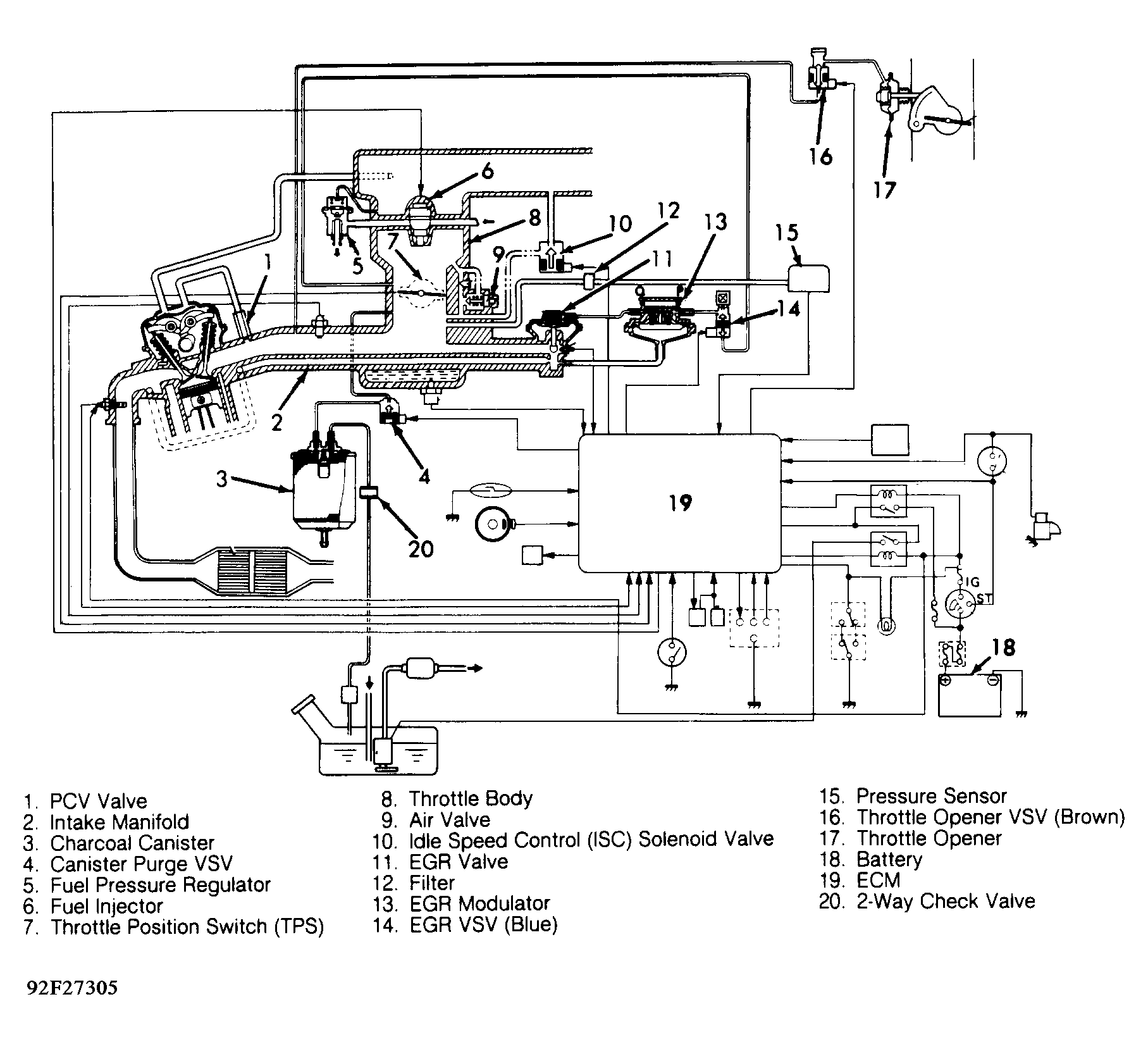

Fig 3: Vacuum Diagram (Sidekick 1.6L TBI)
Courtesy of SUZUKI OF AMERICA CORP.

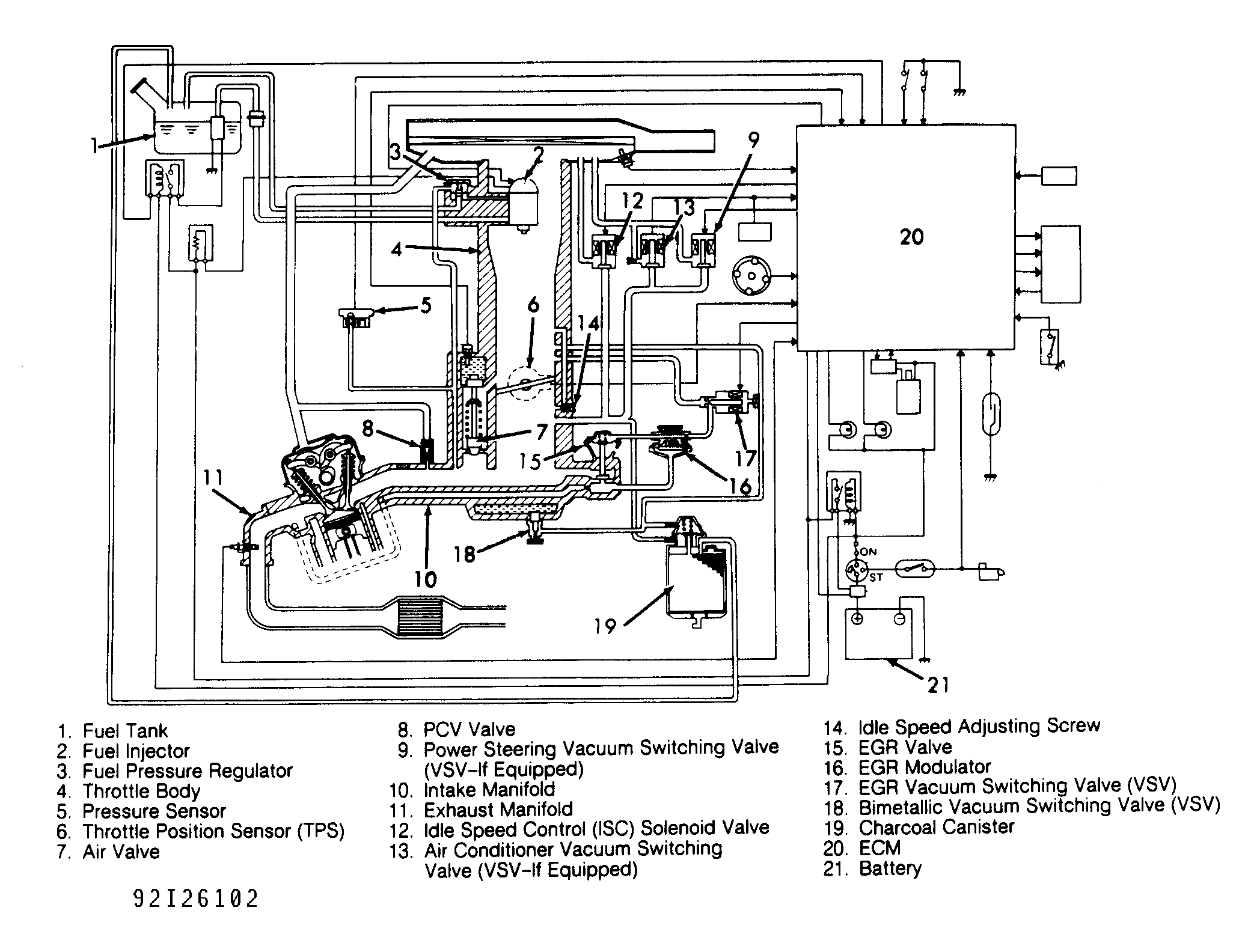

Fig 4: Vacuum Diagram (Swift 1.3L SOHC)
Courtesy of SUZUKI OF AMERICA CORP.

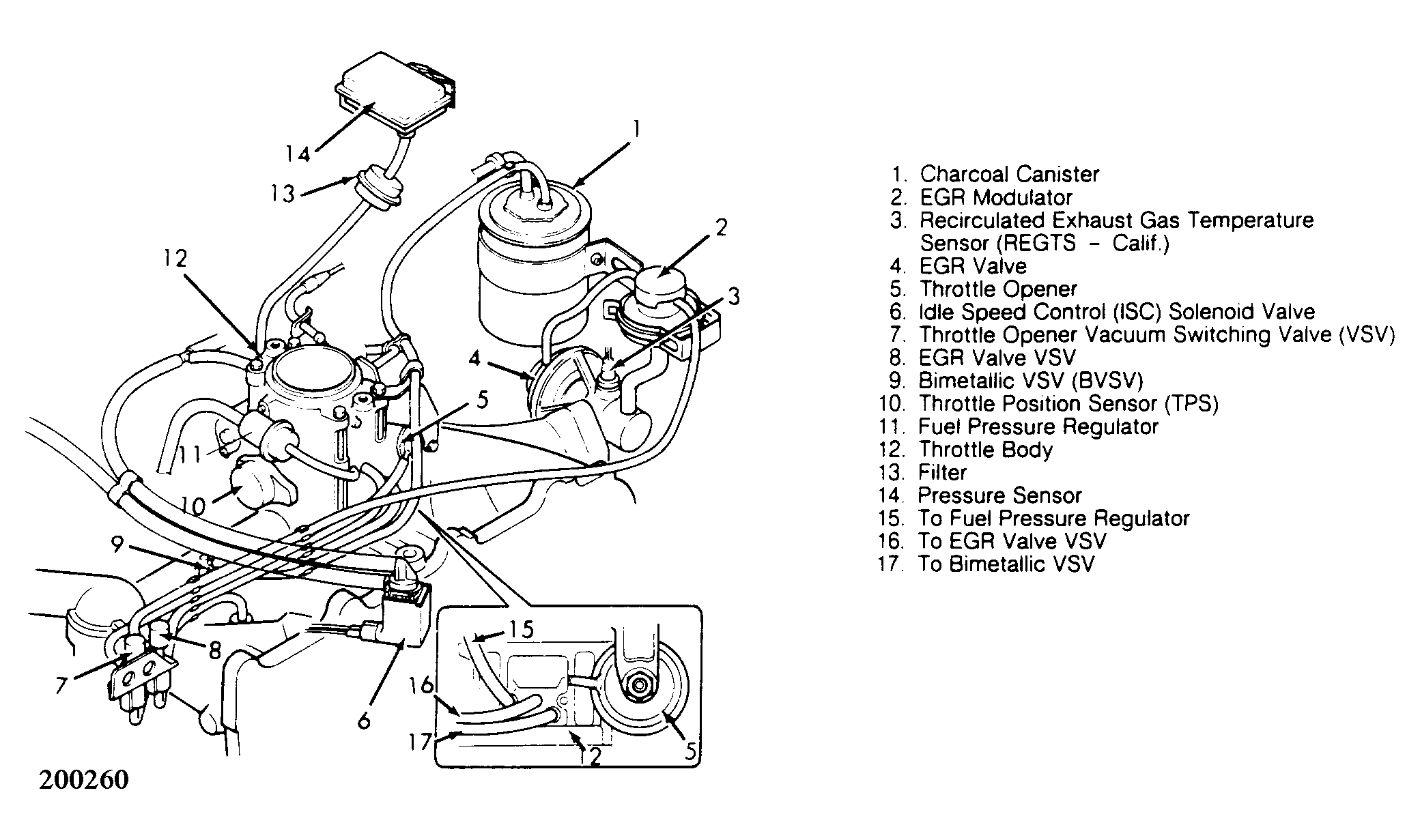

Fig 5: Vacuum Diagram (Swift 1.3L DOHC)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
