Anti-Lock Brake System - Rear Wheel: Wiring Diagram

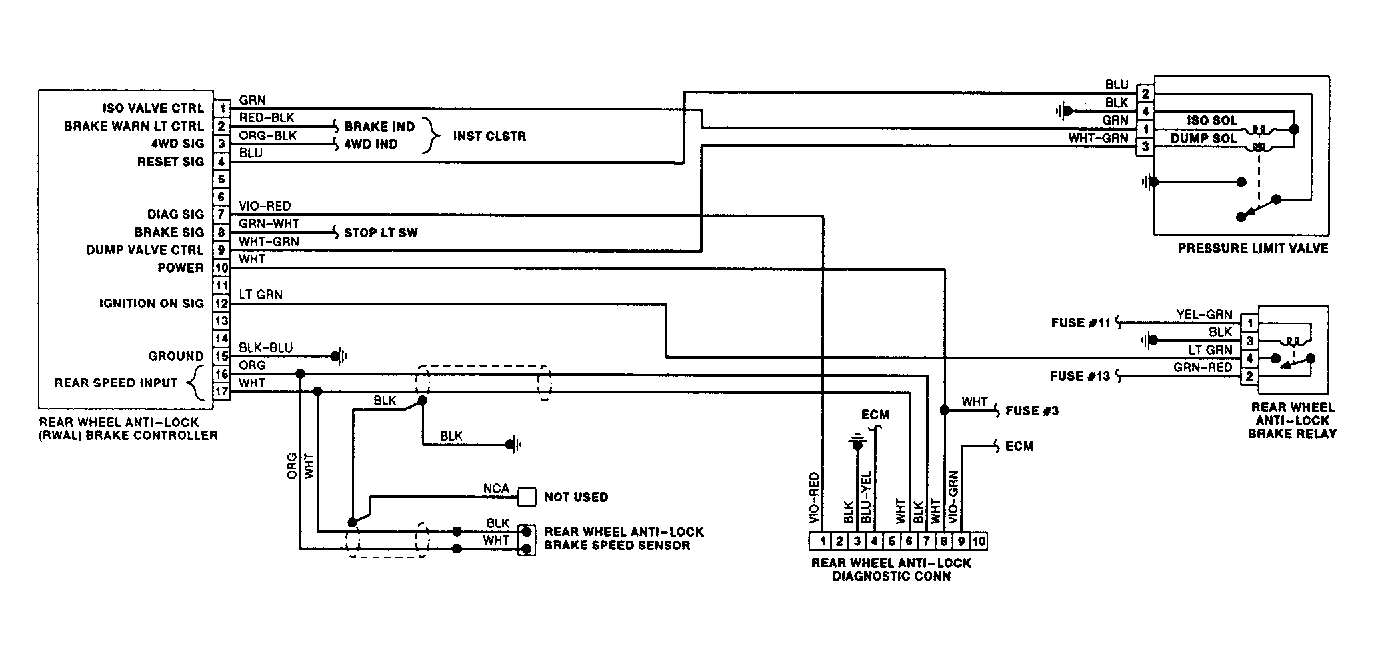

Fig 1: Rear Wheel Anti-Lock (RWAL) Wiring Schematic

G92E01964
