MANUAL TRANSAXLE SYNCHRO KEYS - NEW ID/APPLICATION
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 3-18 02202, Date of Issue:
MODIFICATION OF LOW AND HIGH SPEED SYNCHRONIZER KEYS
Model(s): 1991-on Suzuki Sidekick
Division: Automotive
Category: Technical
Section: Drivetrain
Bulletin No.: 3-18 02202
AFFECTED VEHICLE IDENTIFICATION NUMBERS
1991 4-DOOR ... JS3TD01V_M4109679-
1992 2-DOOR ... JS3TA01C_N4140001-
4-DOOR ... JS3TD02V_N4100040-

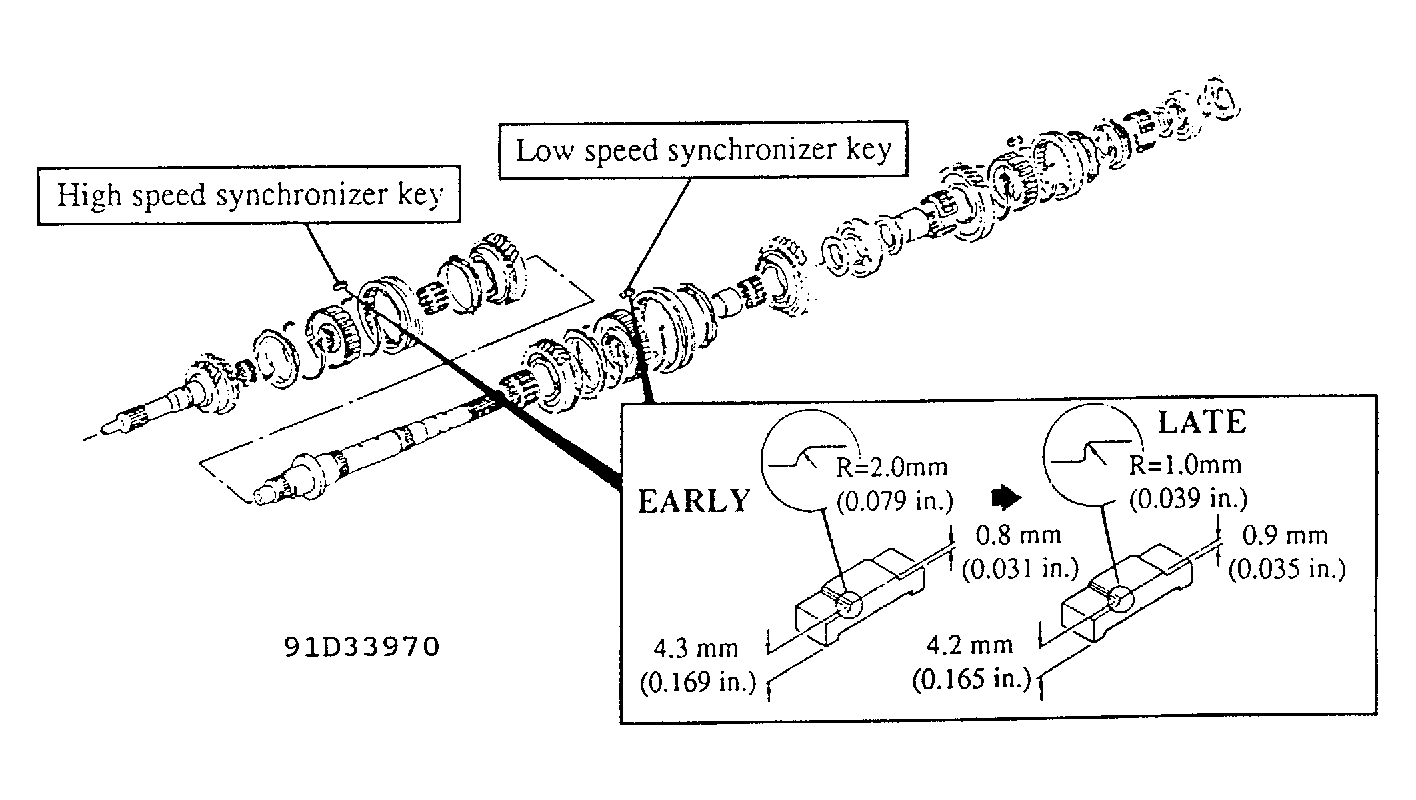

For details of the modification to the synchronizer keys, refer to Fig 1 .
PARTS INFORMATION
| Part Name | Early Part No. | Late Part No. | Interchangeability (0: OK, X: No |
|---|---|---|---|
| Low Speed Synchronizer | 09422-05011 | 24471-60A00 | Early <-0-> Late (replace as a set) |
| High Speed Synchronizer | |||
CAUTION:
Do not intermix early and late type synchronizer keys!
