Chart A2 - Check Engine Light Inoperative

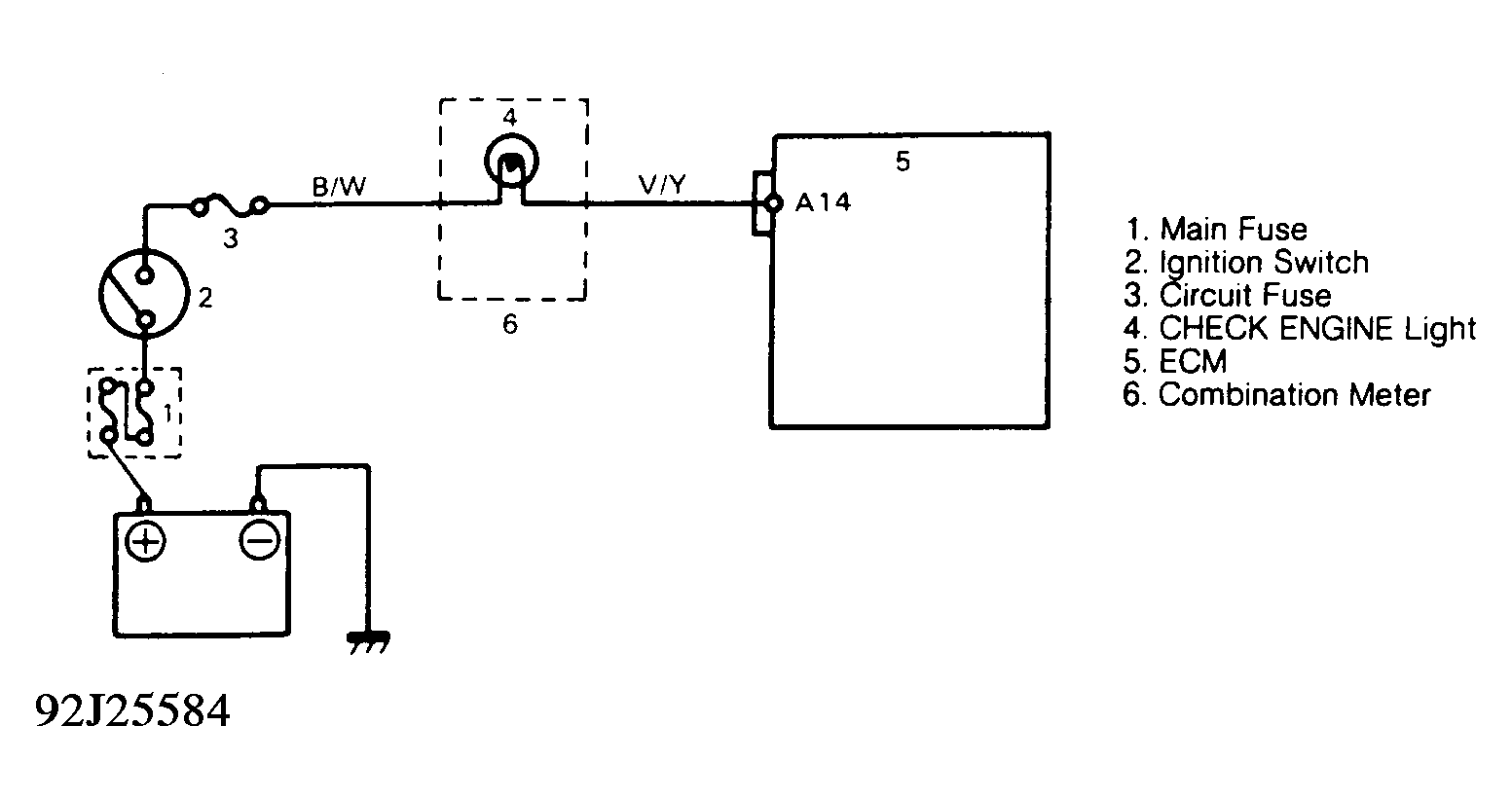

Fig 1: Chart A2 Schematic, Check Engine Light Inoperative
Courtesy of SUZUKI OF AMERICA CORP.

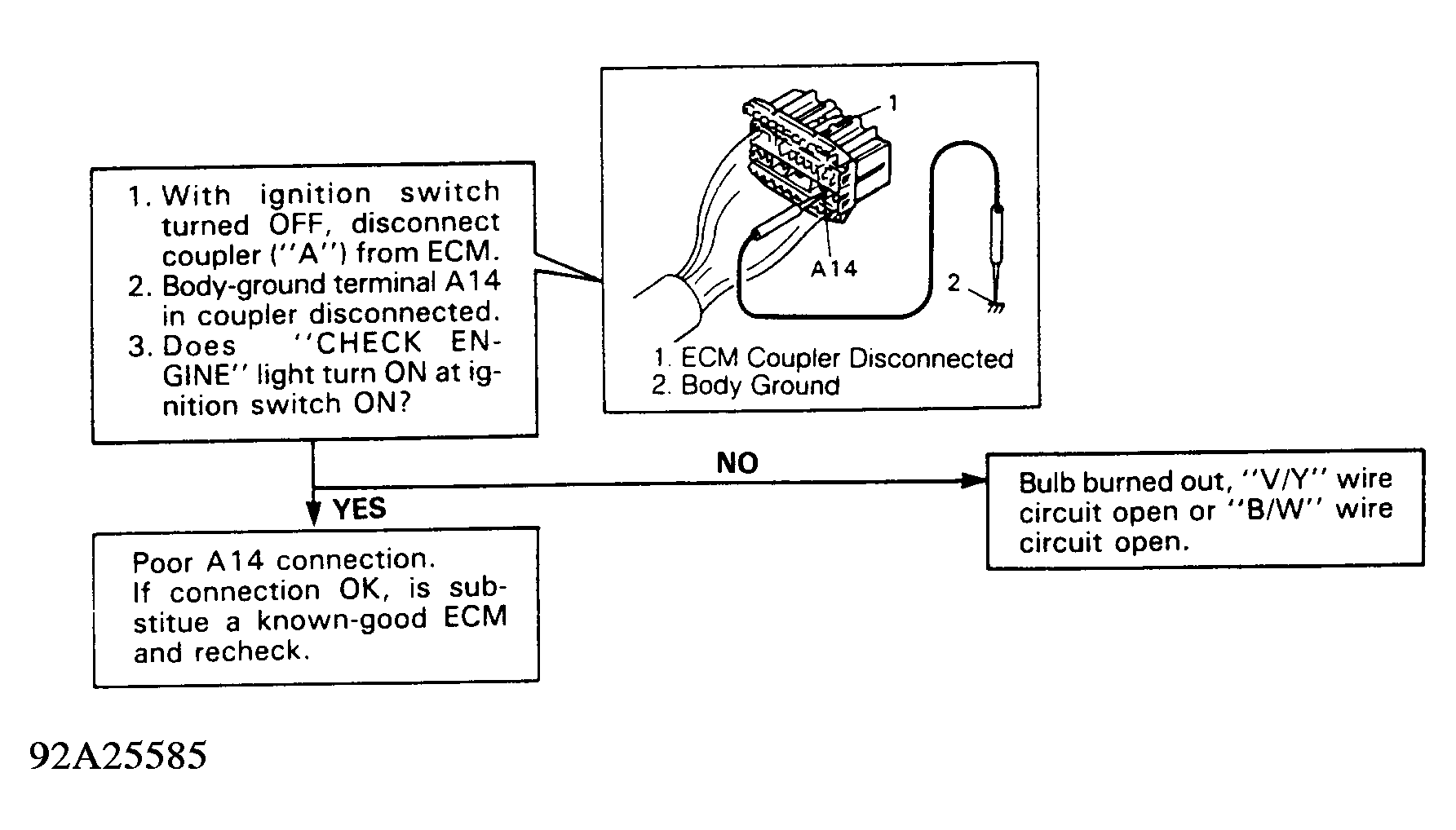

Fig 2: Chart A2 Flow Chart, Check Engine Light Inoperative
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
