Air Conditioning System Performance Check

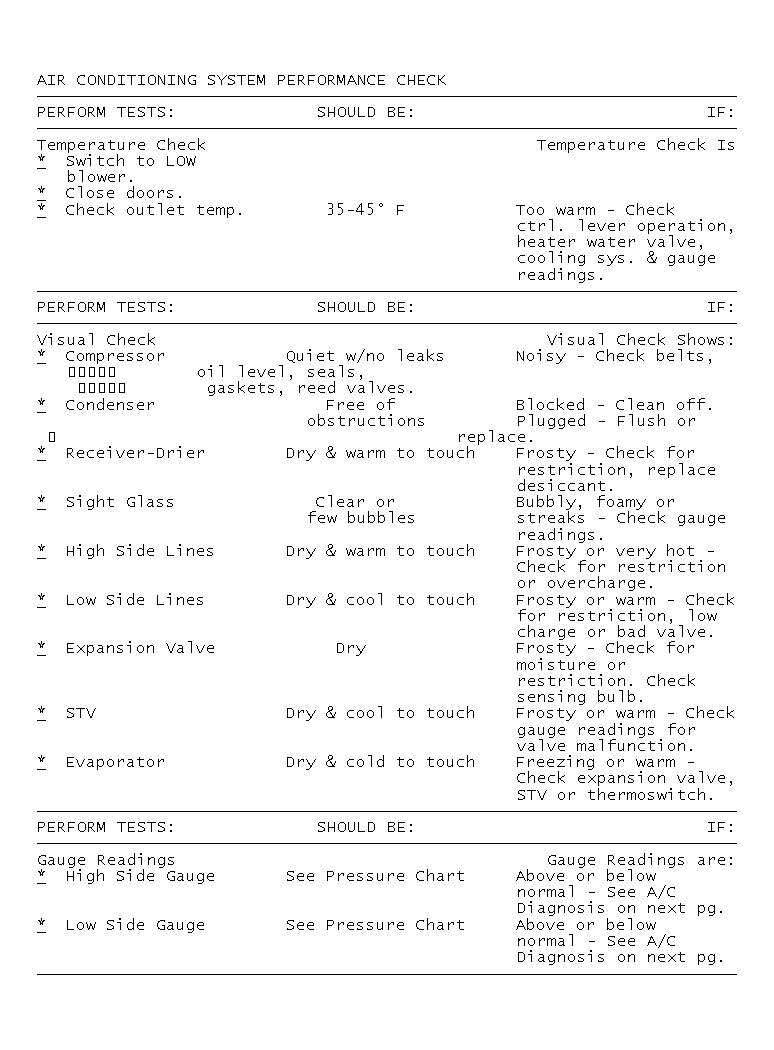

Fig 1: Air Conditioning System Performance Check
GB0043644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
