M/T 5TH GEAR SYNCHRONIZER KEYS MODIFICATION

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 3-11 10031, Date of Issue:

MODIFICATION OF 5TH SPEED SYNCHRONIZER KEYS

Model(s): 1991 AND LATER SAMURAI, SINCE JUNE 1991 PRODUCTION

Bulletin No.: TS 3-11 10031

Group: Manual Transmissions

SERVICE INFORMATION

See Fig 1 and Fig 2 for Key location and installation direction.

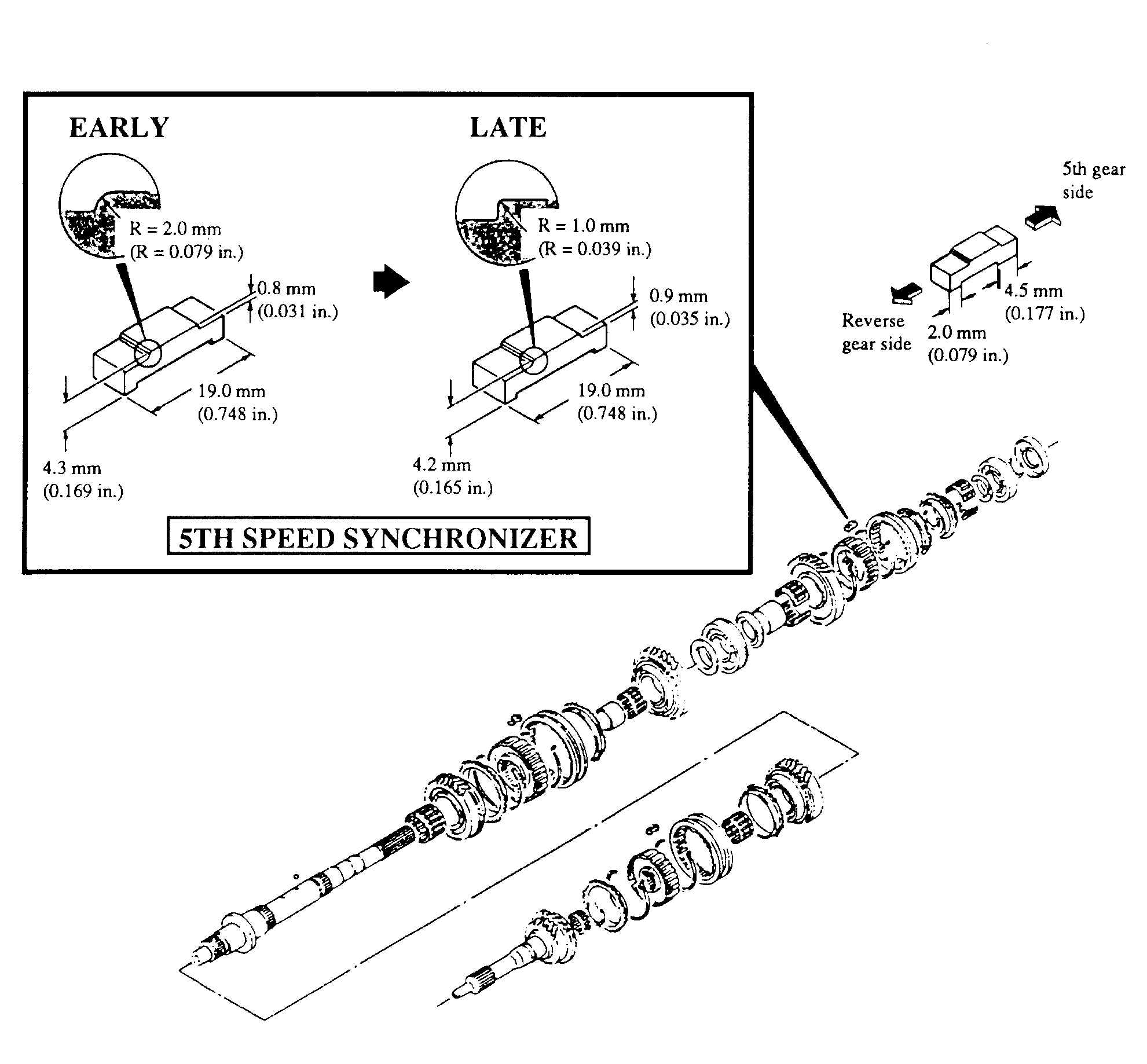

Fig 1: Exploded View Transmission Parts

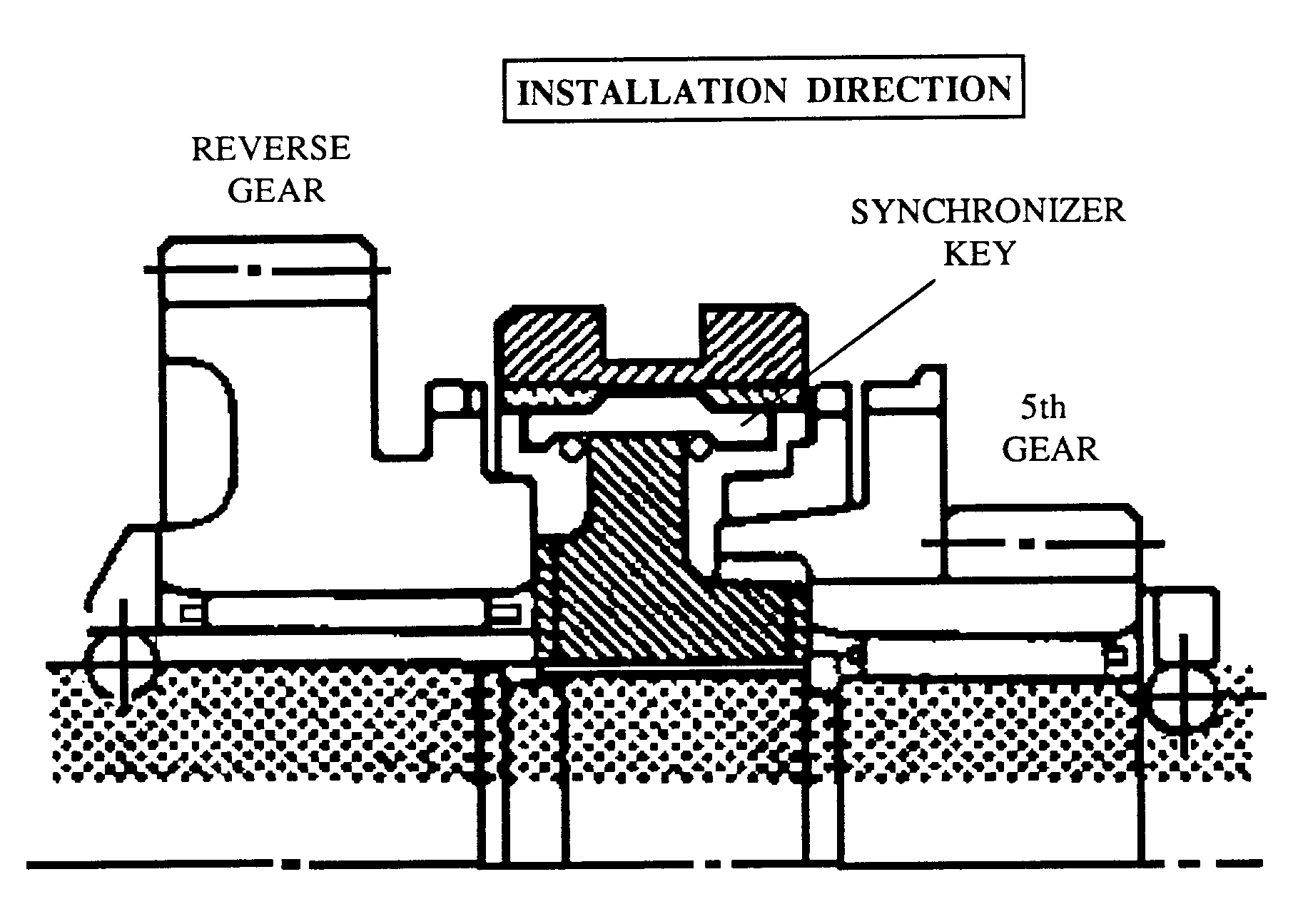

Fig 2: Installation Direction for Synchronizer

CAUTION: WHEN REPLACING ANY OF THESE THREE SYNCHRONIZER KEYS ON A VEHICLE, MAKE CERTAIN THAT LATE AND EARLY TYPES ARE NOT MIXED.

PARTS INFORMATION

The early part number 09422-05012 and the late part number 24473-70D00 can be interchanged only as a complete set. Only late part number will be stocked after early stock is depleted.

VIN INFORMATION

____________________________________________

AFFECTED VEHICLE IDENTIFICATION NUMBERS:

____________________________________________

JS3JC31C_M4 103842 ...... AND ABOVE

JS4JC31C_M4 103842 ...... AND ABOVE

JS3JD31C_M4 102039 ...... AND ABOVE

JS4JD31C_M4 102039 ...... AND ABOVE

____________________________________________
