Code 14 - Coolant Temp Sensor (Cts) Indication Low (SOHC)

NOTE: When code 14, 23 and 32 are indicated together, it is possible that Light Green/Black wire is open or terminal A16 connection is poor.

Fig 1: Code 14 Schematic, CTS Sensor Circuit (SOHC)

Courtesy of SUZUKI OF AMERICA CORP.

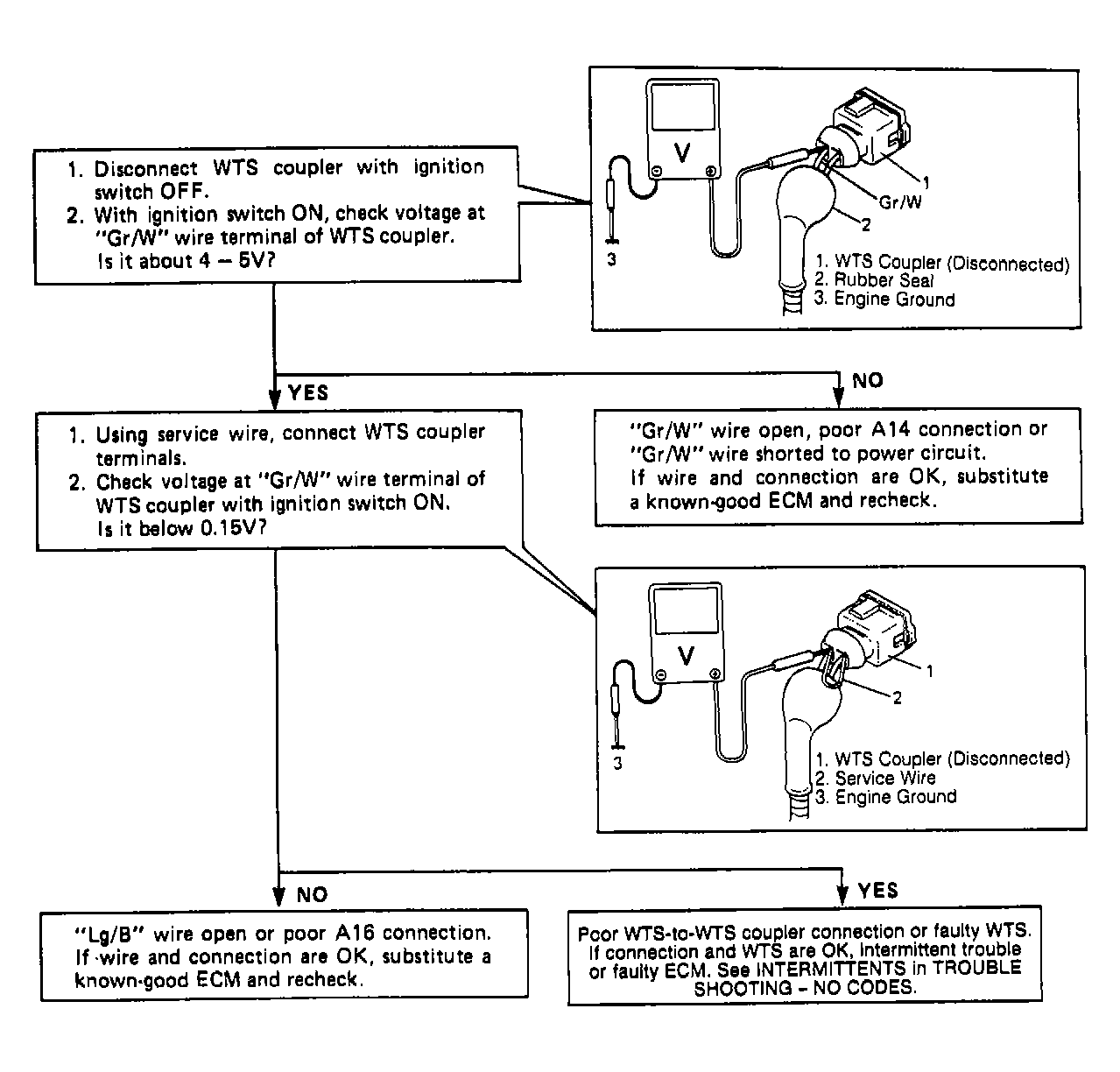

Fig 2: Code 14 Flow Chart, CTS Sensor Circuit (SOHC)

Courtesy of SUZUKI OF AMERICA CORP.
