RWAL DIAGNOSTICS - SERVICE MANUAL CORRECTION

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 5-05 03071, Date of Issue:

RWAL DIAGNOSTICS

Model(s): Suzuki Sidekick 1991

Bulletin No.: TS 5-05 03071

Division: Automotive

Category: Technical

Section Title: Steering, Brakes and Suspension

CONDITION

Error in the Sidekick Service Manual (p/n 99500-60A20-33E) RWAL Diagnostic Flow Chart, page 5A-12.

CAUSE

Not applicable

CORRECTION

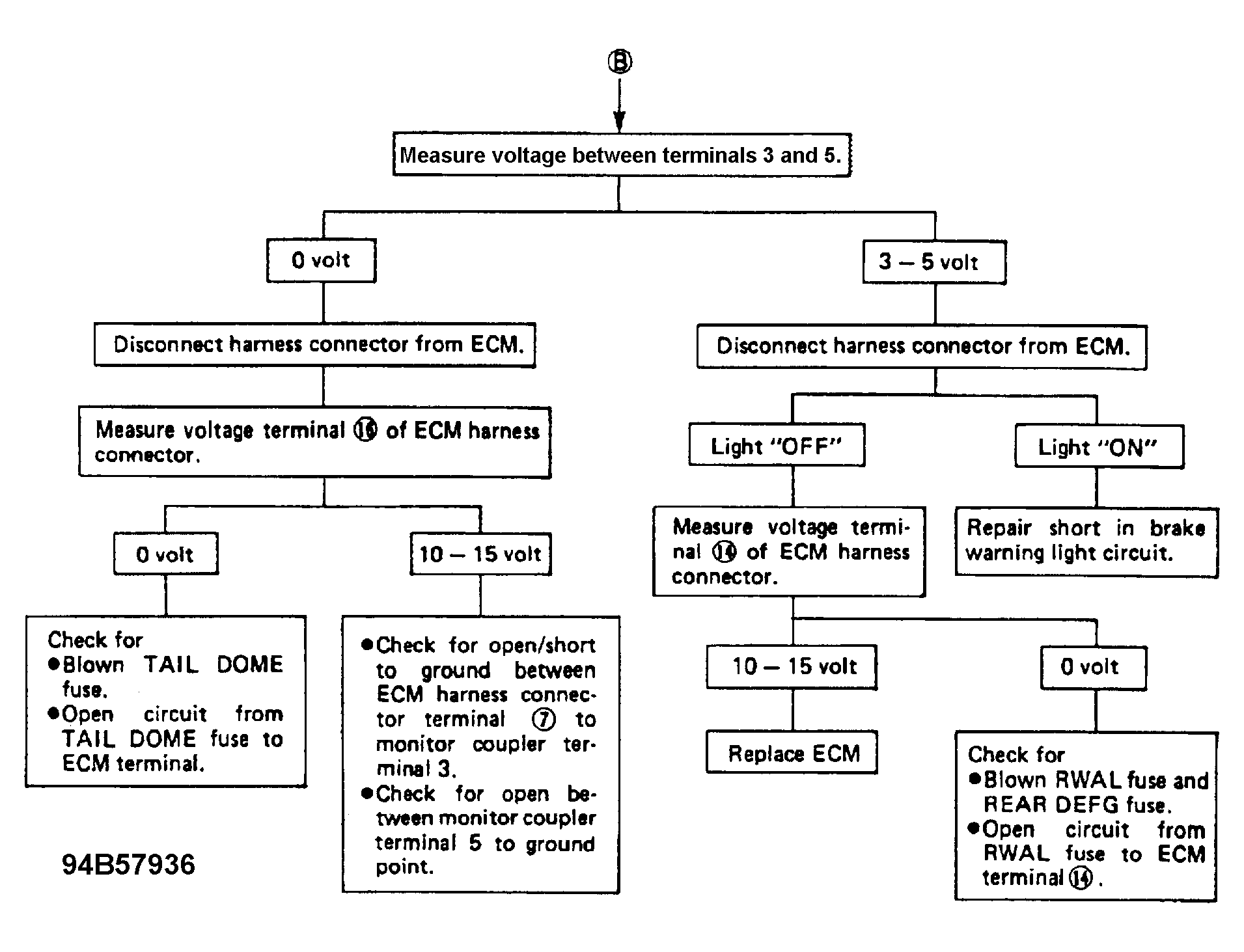

Shown in Fig 1 is the RWAL Diagnostic flow chart on page 5A-12 with its correction. The correction is indicated in the shaded area of the chart. Correct your Service Manual appropriately.

Fig 1: RWAL Diagnostic Flow Chart Correction
