Chart A3 - Check Engine Light Stays On Steady (Federal)

Fig 1: Chart A3 Schematic, Check Engine Light On Steady (Calif.)

Courtesy of SUZUKI OF AMERICA CORP.

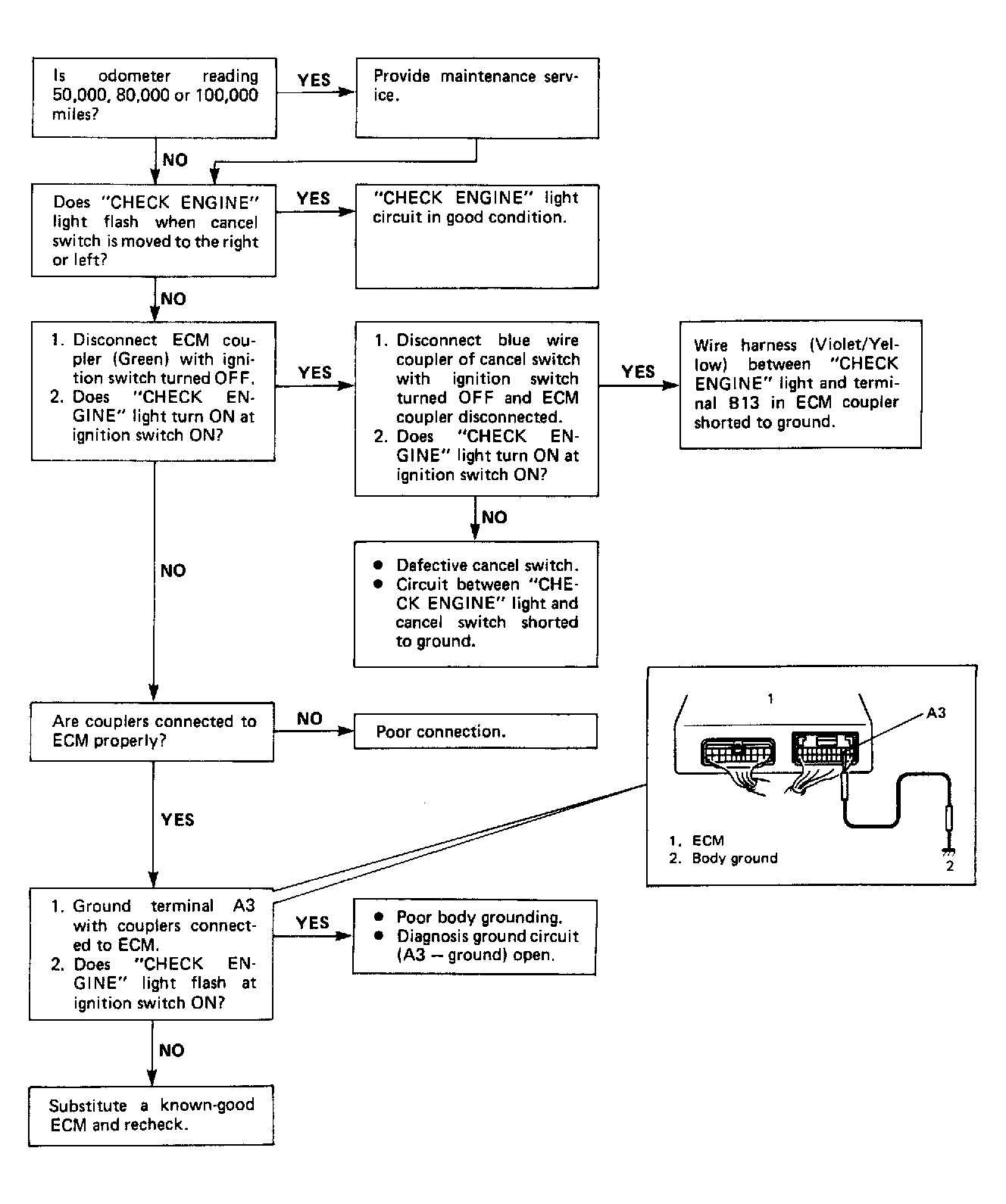

Fig 2: Chart A3 Flow Chart, Check Engine Light On Steady (Federal)

Courtesy of SUZUKI OF AMERICA CORP.
