Wiring Diagrams (1991-92 Models)

Fig 1: Heater System Wiring Diagram (Samurai)
G92D02878

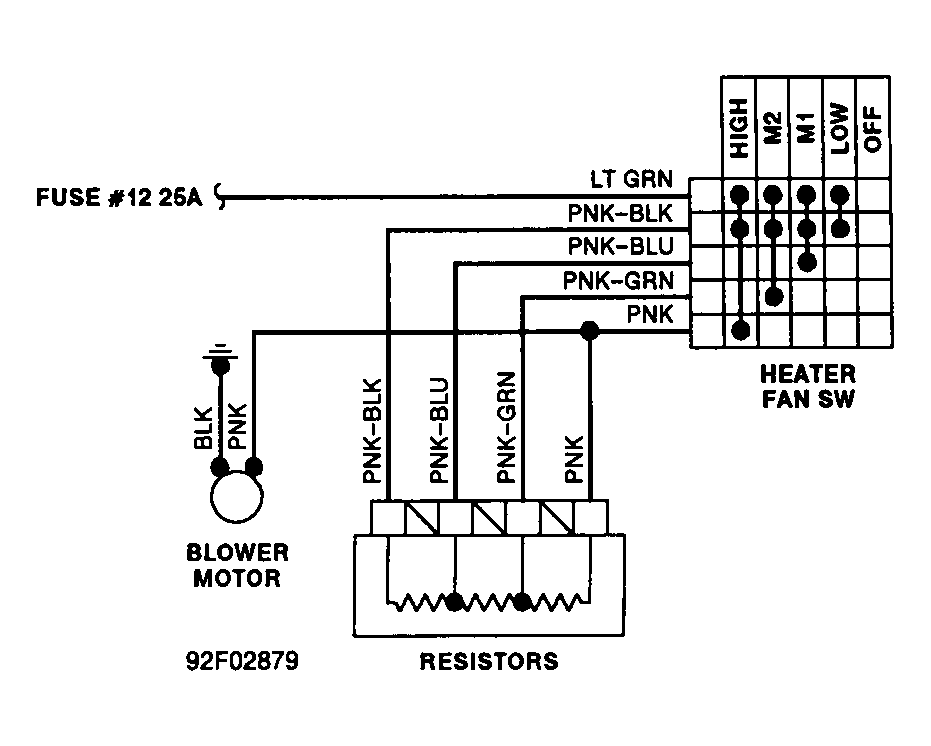

Fig 2: Heater System Wiring Diagram (Sidekick)
G92F02879

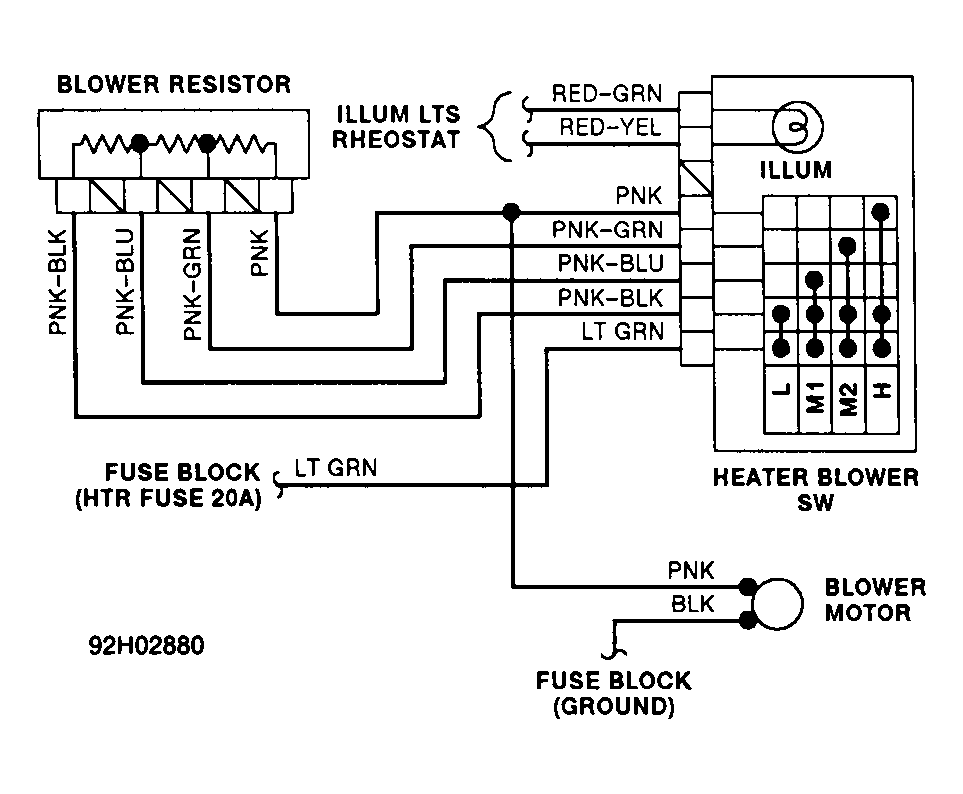

Fig 3: Heater System Wiring Diagram (Swift)
G92H02880
