Removal & Installation (Swift)

Disconnect battery negative terminal. Disconnect electrical connector from blower resistor. Remove fresh air control cable from blower case. Remove blower motor retaining bolts. To install, reverse removal procedure. See Fig 3 .

Fig 1: Identifying Heater & Blower Motor Components (Sidekick)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Checking Heater & Ventilator Control Cable Routing (Samurai)

Courtesy of SUZUKI OF AMERICA CORP.

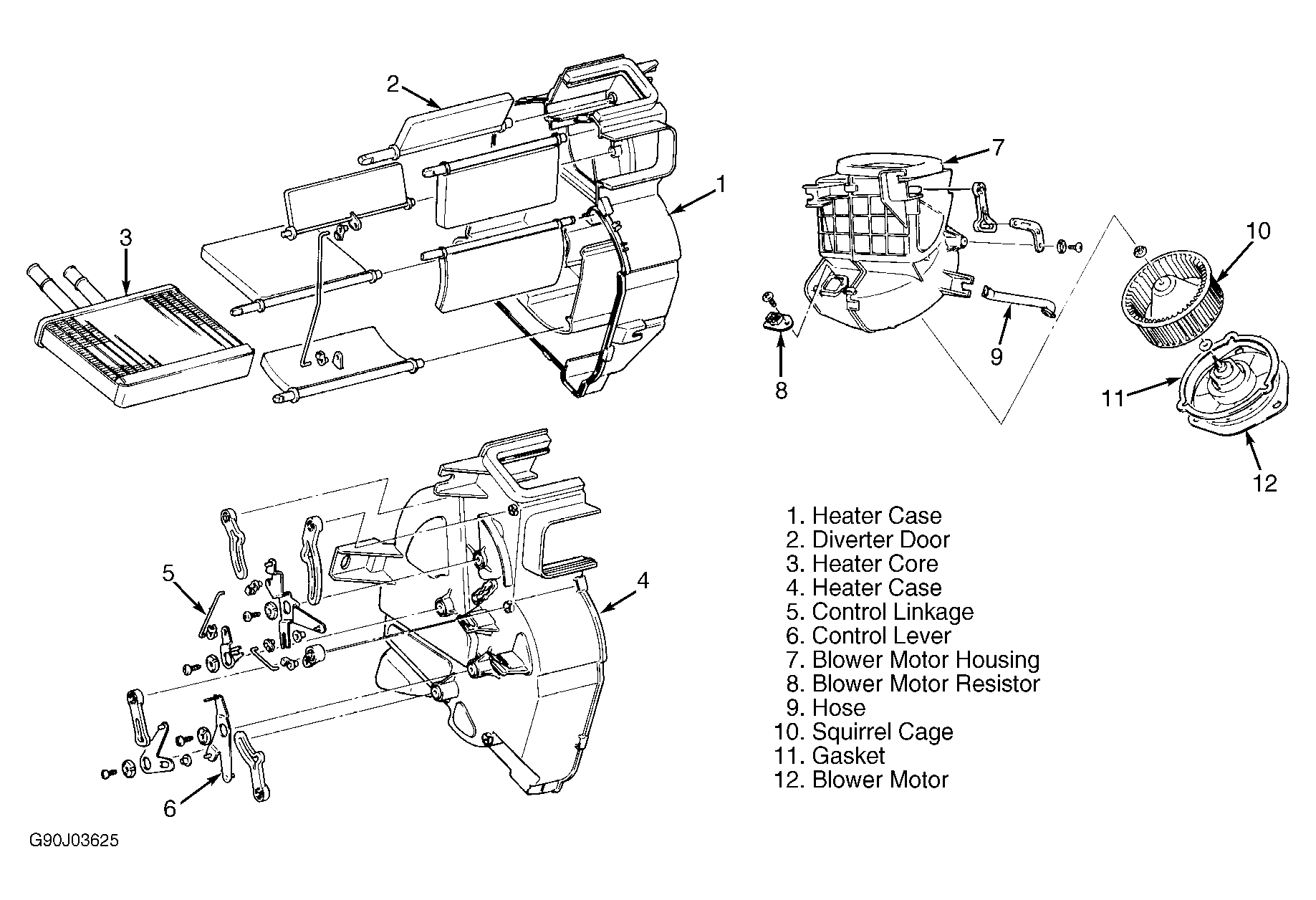

Fig 3: Identifying Heater & Blower Motor Components (Swift)

Courtesy of SUZUKI OF AMERICA CORP.
