Wiring Diagrams (1991-92)

Fig 1: Manual A/C-Heater System Wiring Diagram (Samurai)
G92J02881
Fig 2: Manual A/C-Heater System Wiring Diagram (Sidekick)
G92B02882

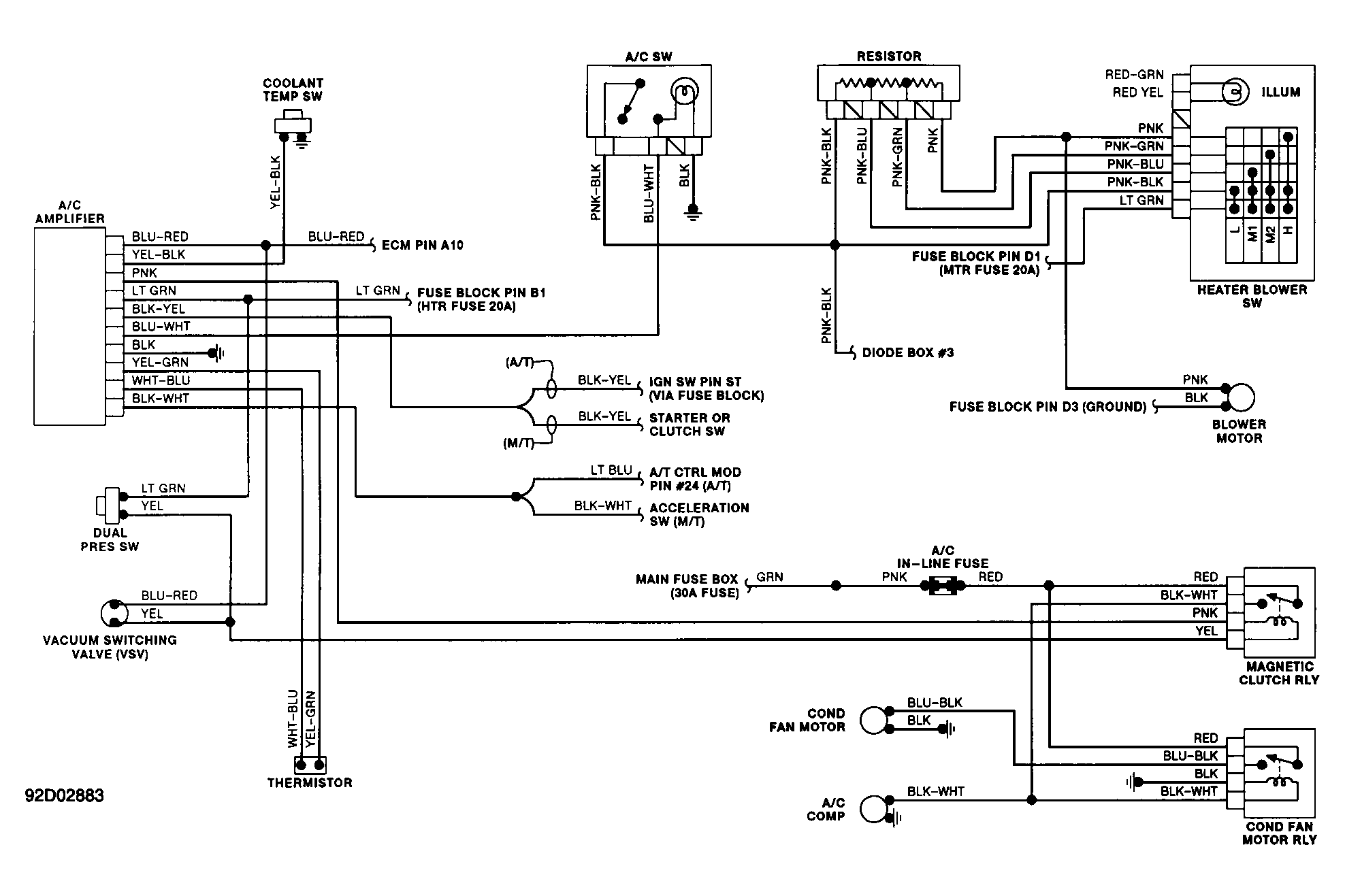

Fig 3: Manual A/C-Heater System Wiring Diagram (Swift)
G92D02883
