Liftgate Trim Panel Replacement (Upper)

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

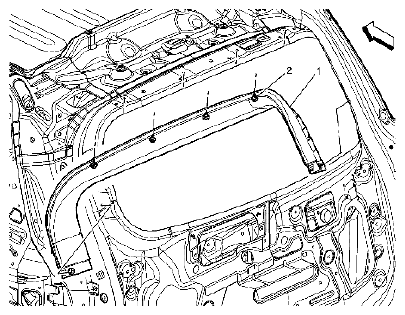

Fig 1: Identifying Liftgate Trim Panel Assembly & Retainer
G04844671Courtesy of SUZUKI OF AMERICA CORP.
LIFTGATE TRIM PANEL ASSEMBLY COMPONENTS REFERENCE

Callout Component Name
Preliminary Procedure
Remove lower liftgate trim panel. Refer to LIFTGATE TRIM PANEL REPLACEMENT (UPPER)  and LIFTGATE TRIM PANEL REPLACEMENT (LOWER) .
1 Liftgate Trim Panel Assembly
Tip:  Pull away from liftgate to release retainers.
2 Liftgate Trim Panel Retainer (Qty: 6)
