Front Fender Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

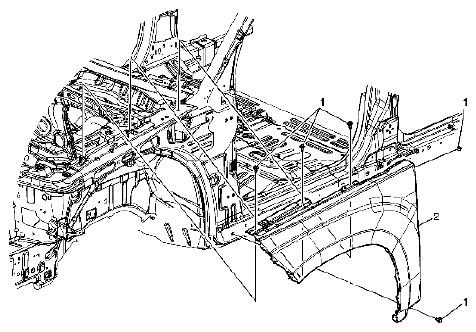

Fig 1: Identifying Front Fender & Bolts

Courtesy of SUZUKI OF AMERICA CORP.

FRONT FENDER COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedures Remove the headlamp assembly. Refer to HEADLAMP REPLACEMENT Remove the two bolts holding the front bumper upper fascia support to the fender. Refer to FRONT BUMPER FASCIA UPPER SUPPORT REPLACEMENT Remove the rocker panel molding. Refer to ROCKER PANEL MOLDING REPLACEMENT .
1	Front Fender Bolts (Qty: 5) CAUTION: Refer to FASTENER NOTICE . Tip: Use a grease pencil to mark the alignment of the fender to body before removing any bolts. Tightening torque 10 N.m (89 lb in)
2	Front Fender
