Auxiliary Air Temperature Actuator Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

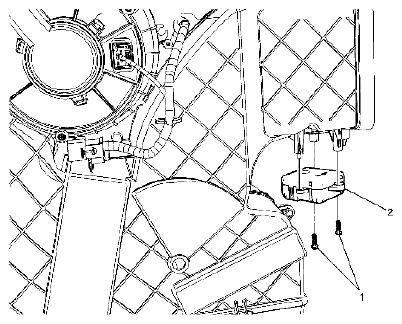

Fig 1: Identifying Auxiliary Temperature Actuator & Screws

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT COMPONENT NAME TABLE

Callout	Component Name
Preliminary Procedure Remove the left rear trim panel. Refer to REAR QUARTER LOWER TRIM PANEL REPLACEMENT . Remove the 3 auxiliary HVAC module mounting bolts. Refer to AUXILIARY HVAC MODULE REPLACEMENT . Reposition the auxiliary HVAC module inward to gain access to the temperature actuator. Calibrate the actuators. Refer to ACTUATOR RECALIBRATION .
1	Auxiliary Temperature Actuator Screw (Qty: 3) CAUTION: Refer to FASTENER NOTICE . Tightening torque 2 N.m (18 lb in)
2	Auxiliary Temperature Actuator Tip: The temperature actuator is mounted on the outboard side of the module. Tip: Disconnect the electrical connector.
