Auxiliary Air Distributor Duct Replacement - Upper

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

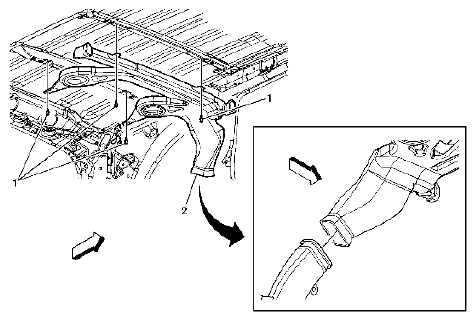

Fig 1: Identifying Auxiliary Air Distribution Duct Push Pins

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT COMPONENT NAME TABLE

Callout	Component Name
Preliminary Procedure Remove the left rear trim panel. Refer to REAR QUARTER LOWER TRIM PANEL REPLACEMENT . Remove the vehicle headliner. Refer to HEADLINING TRIM PANEL REPLACEMENT . Remove the auxiliary duct from the HVAC module. Refer to AUXILIARY AIR DISTRIBUTOR DUCT REPLACEMENT - UPPER . Remove the auxiliary air duct upper left side portion. Refer to AUXILIARY AIR DISTRIBUTOR DUCT REPLACEMENT - UPPER .
1	Auxiliary Air Distribution Duct Push Pins (Qty: 4)
2	Auxiliary Air Distribution Duct - Upper Tip: Follow mandatory sequence upon installation shown in graphic.
