Chart A3 - Check Engine Light Stays On - Won't Flash

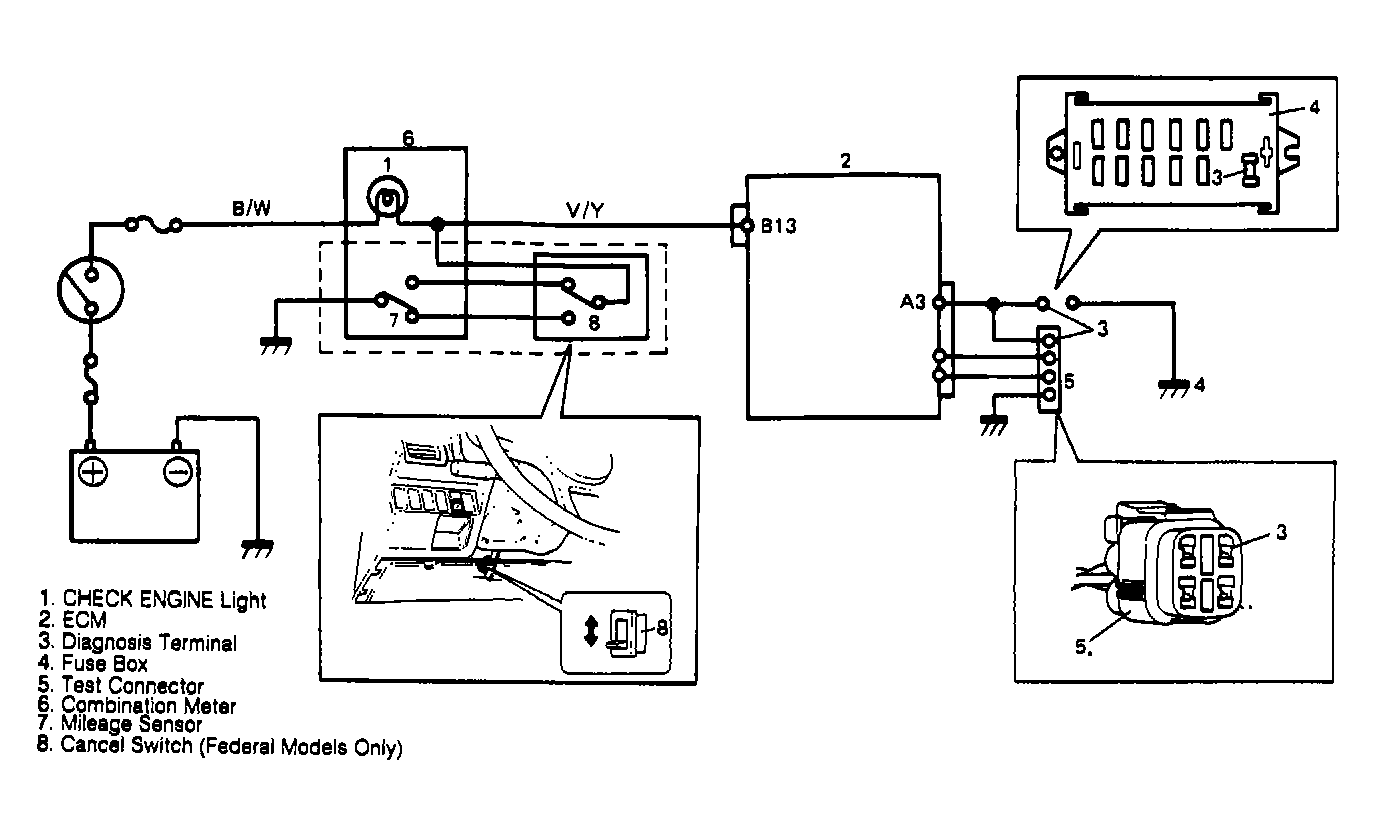

Fig 1: Code A3 Schematic, Check Engine Light On Steady

Courtesy of SUZUKI OF AMERICA CORP.

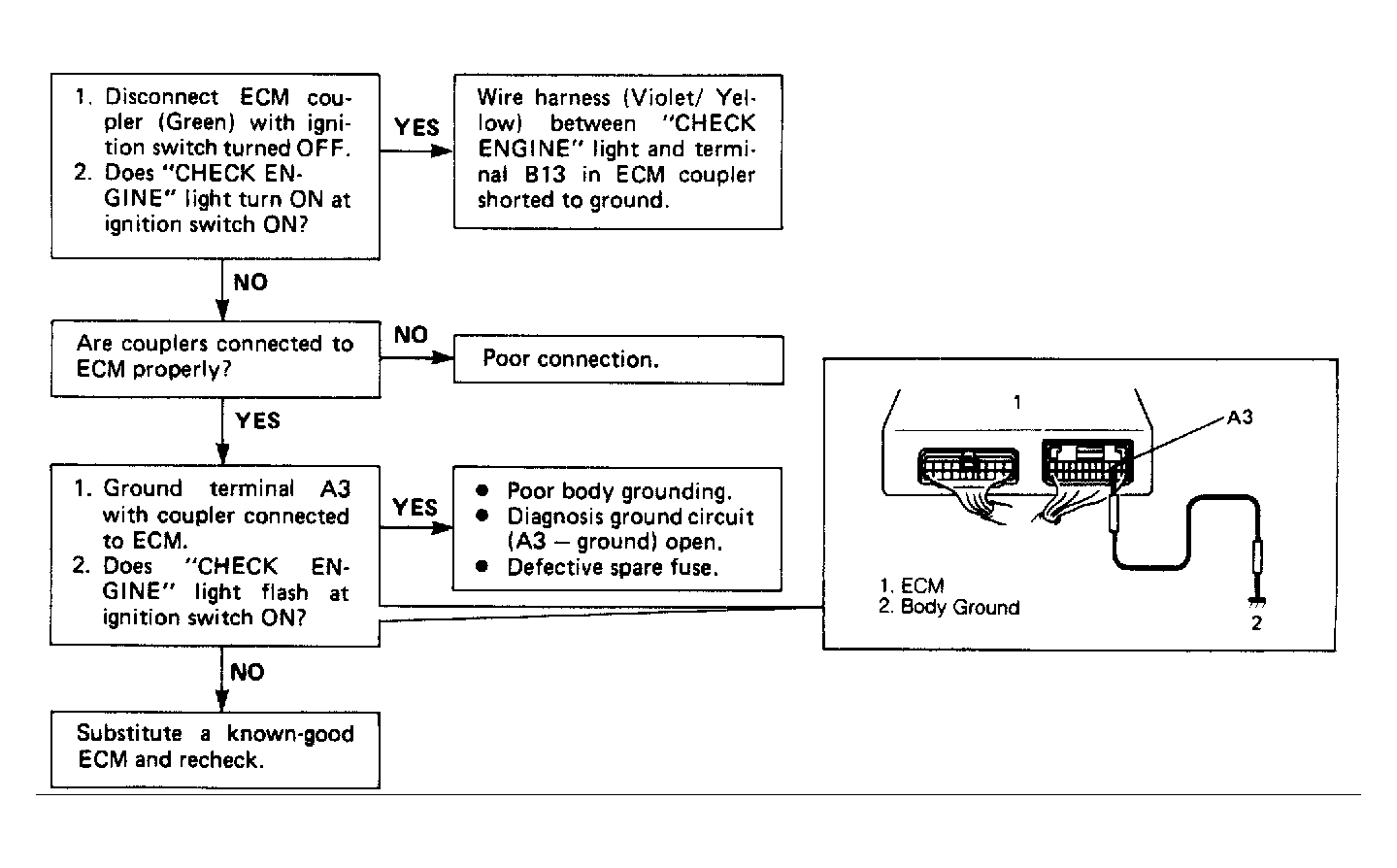

Fig 2: Code A3 Flow Chart, Check Engine Light On Steady (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

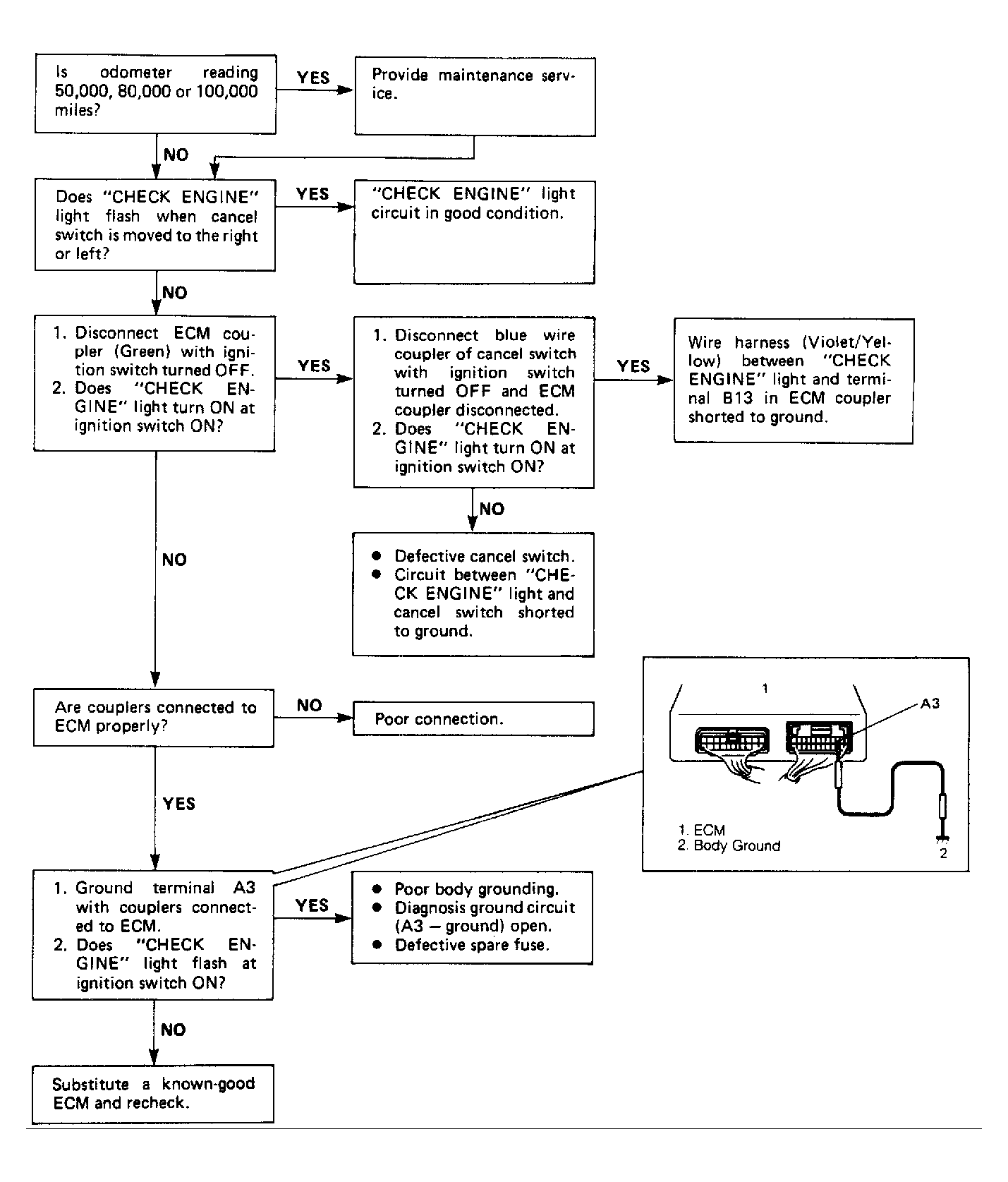

Fig 3: Code A3 Flow Chart, Check Engine Light On Steady (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.
