Chart A1 - ECM Power Supply & Ground Circuit Check (SOHC)

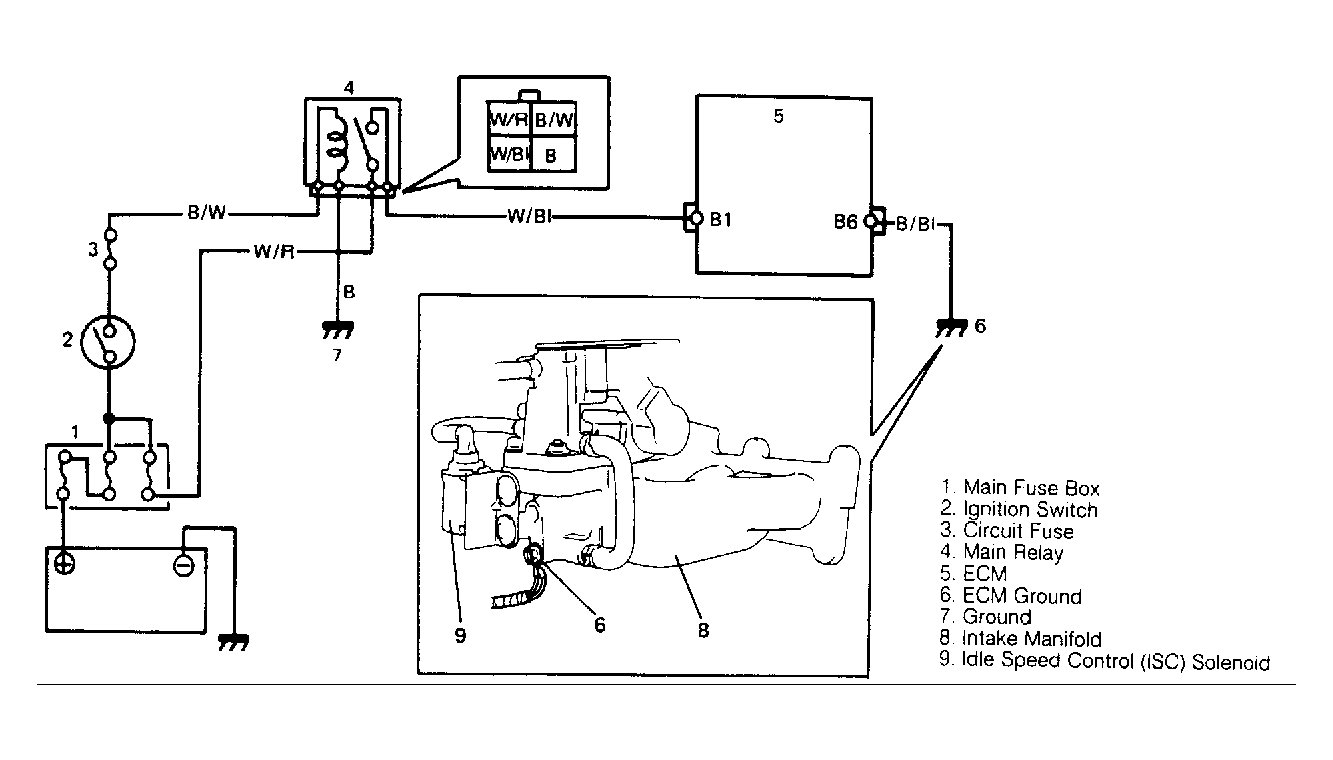

Fig 1: Code A1 Schematic, ECM Power Supply Circuit (SOHC)

Courtesy of SUZUKI OF AMERICA CORP.

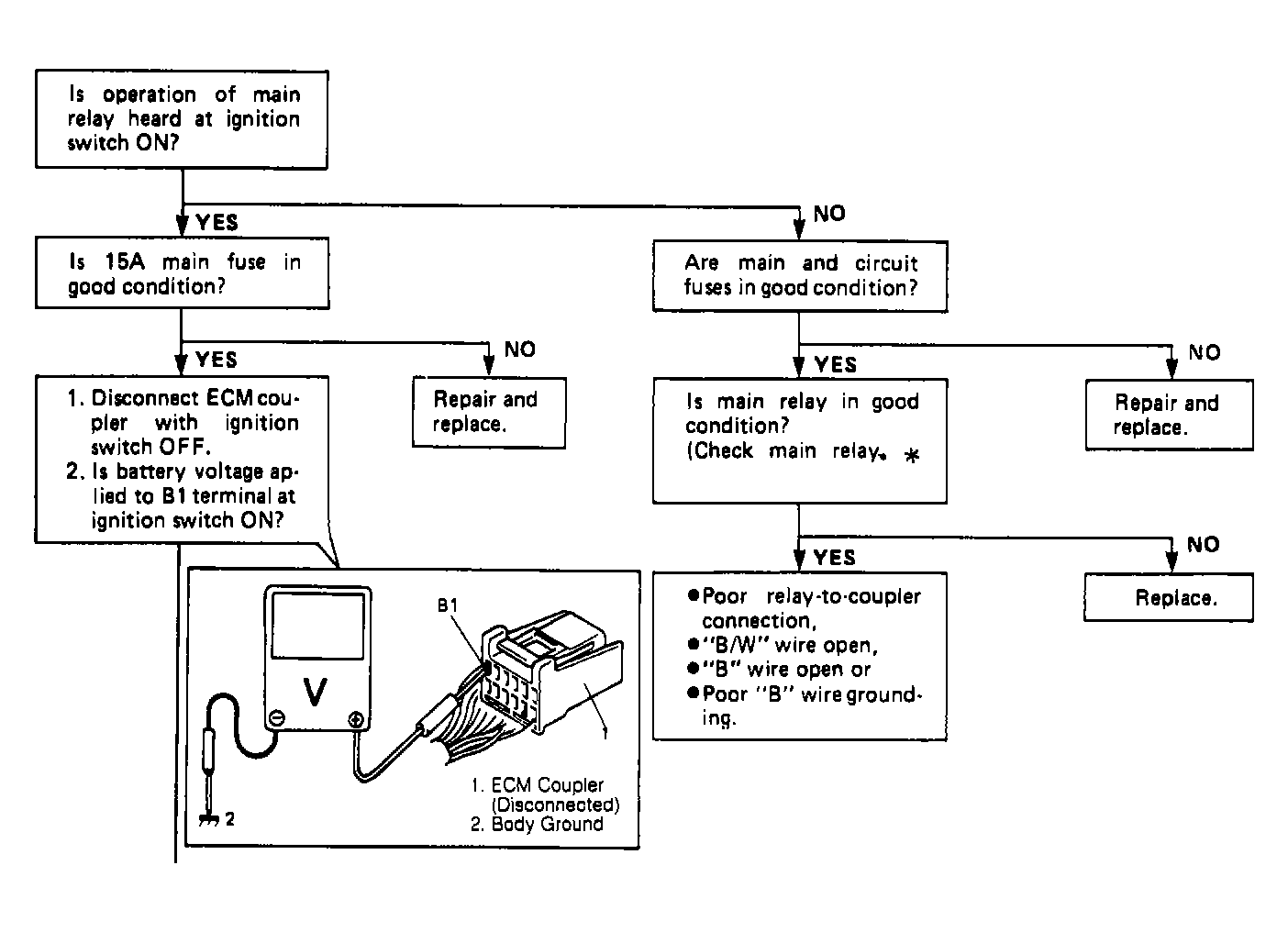

Fig 2: Code A1 Flow Chart, ECM Power Supply Circuit (SOHC)

Courtesy of SUZUKI OF AMERICA CORP.
