Central Locking System Description/Operation/Diag (TS 2-08 06190)

Publication date: 1970-01-01
Reference number: TS 2-08 06190

CENTRAL LOCKING SYSTEM DESCRIPTION/OPERATION/DIAG

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 2-08 06190, Date of Issue:

CENTRAL LOCKING SYSTEM AND DIAGNOSIS

Model(s): ALL SWIFT

Bulletin No.: TS 2-08 06190

Group: Accessories & Electrical

SERVICE INFORMATION

The purpose of this bulletin is to provide the following information on the Swift Central Locking System:

Location of System Components (See Fig 1 )
System Wiring Diagram (See Fig 2 )
Operation of System (See Fig 3 )
System Trouble Diagnosis (See Fig 4 )

GENERAL DESCRIPTION

All the side doors can be locked and unlocked simultaneously by using the ignition key in the driver's side door lock. Also, they can be locked by pushing the driver's side door lock lever forward. However, pushing the driver's side door lever forward unlocks the driver's door only.

NOTE: Using the ignition key or moving the lock lever on the passenger's side door locks or unlocks that particular door only.

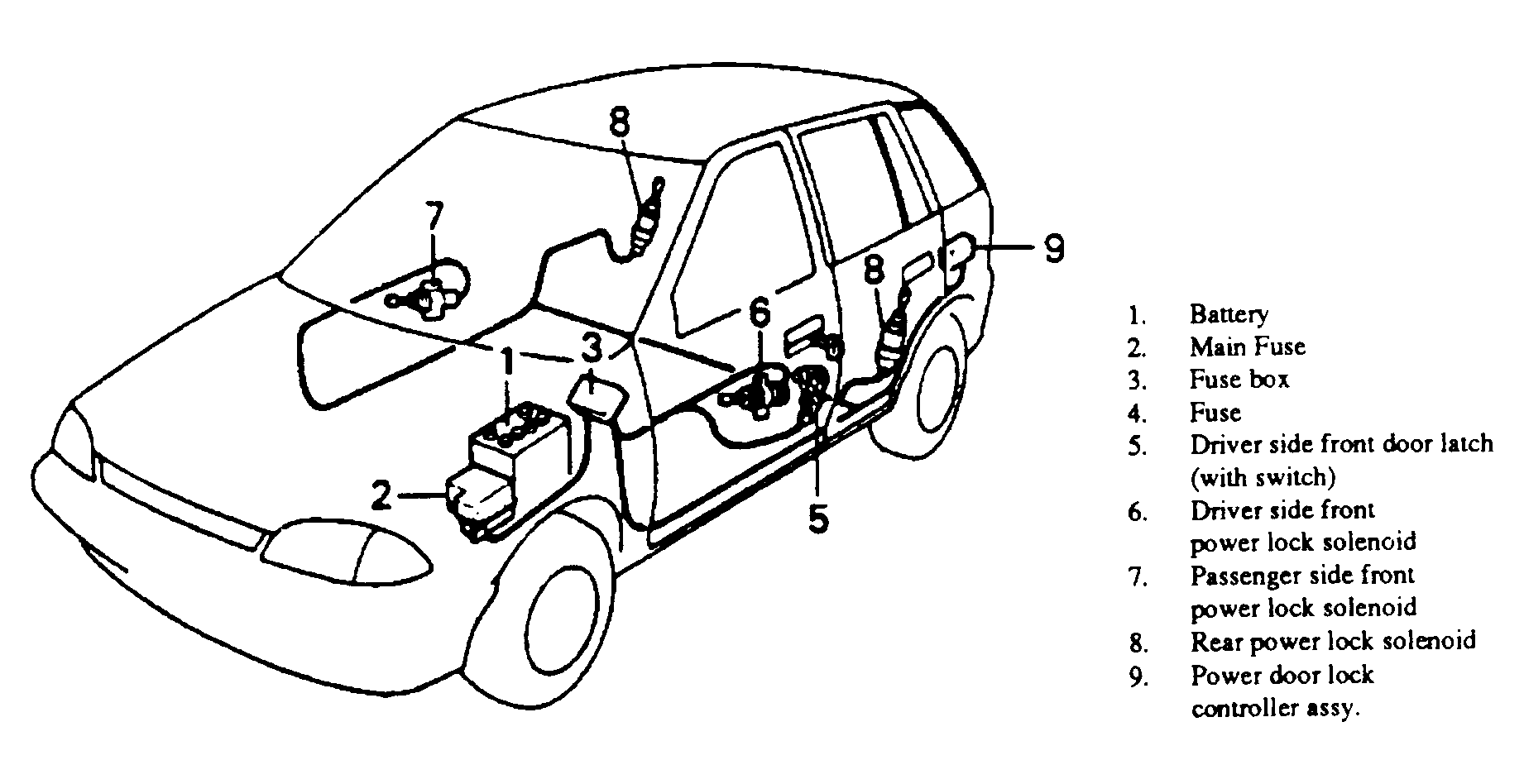

Fig 1: Location of System Components

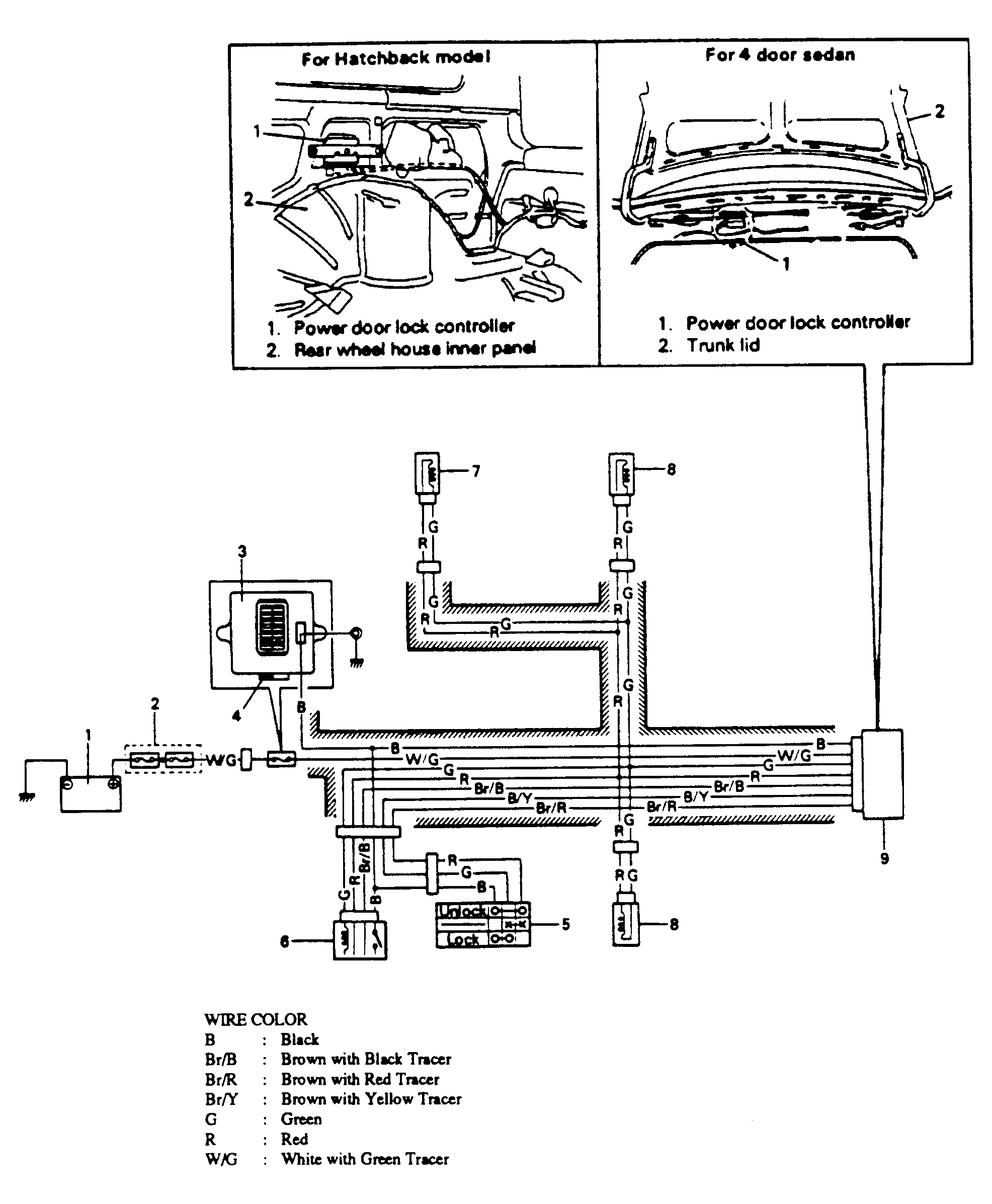

Fig 2: System Wiring Diagram

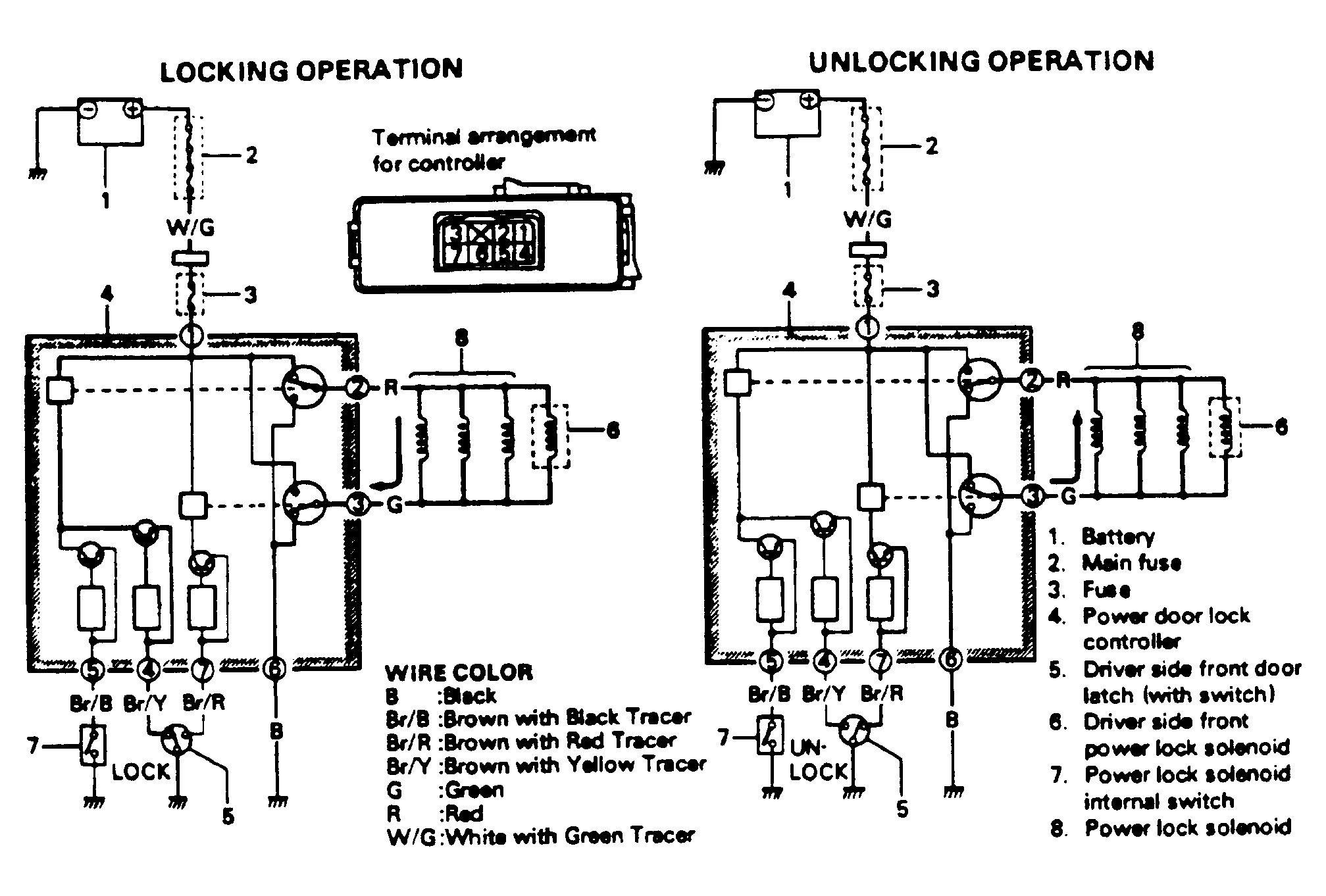

The diagram shown in Fig 3 , shows locking and unlocking operation of the central locking system circuit.

Fig 3: Operation of System

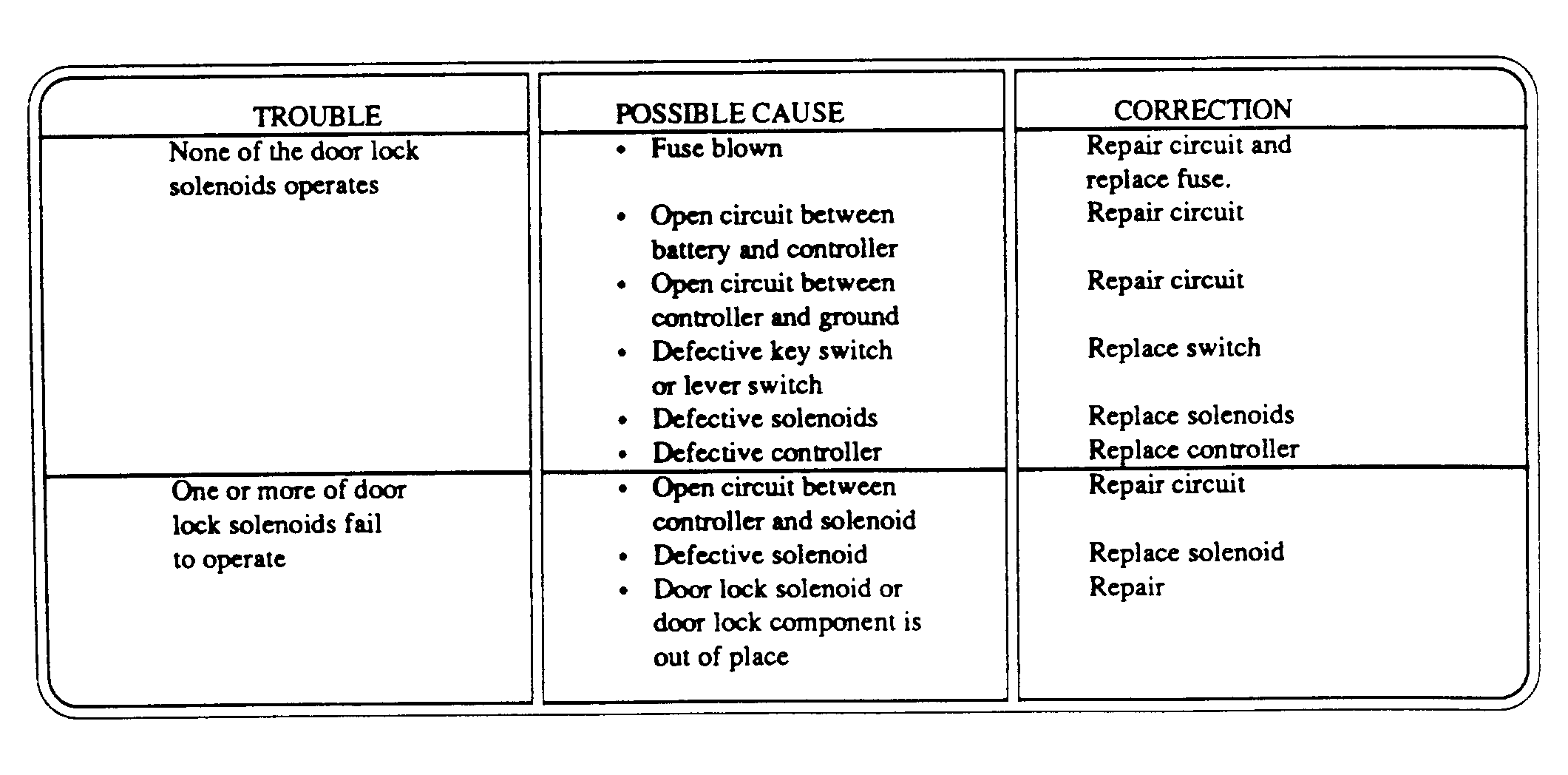

Fig 4: System Trouble Diagnosis
