SERVICE MANUAL REVISION; CHANGE OF BODY SERVICE DATA
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 1-08 11080, Date of Issue:
REVISION OF SERVICE MANUAL; CHANGE OF BODY SERVICE DATA
Model(s): Suzuki Swift
Bulletin No.: TS 1-08 11080
Division: Automotive
Category: Technical
Section Title: Body And Frame
SERVICE INFORMATION

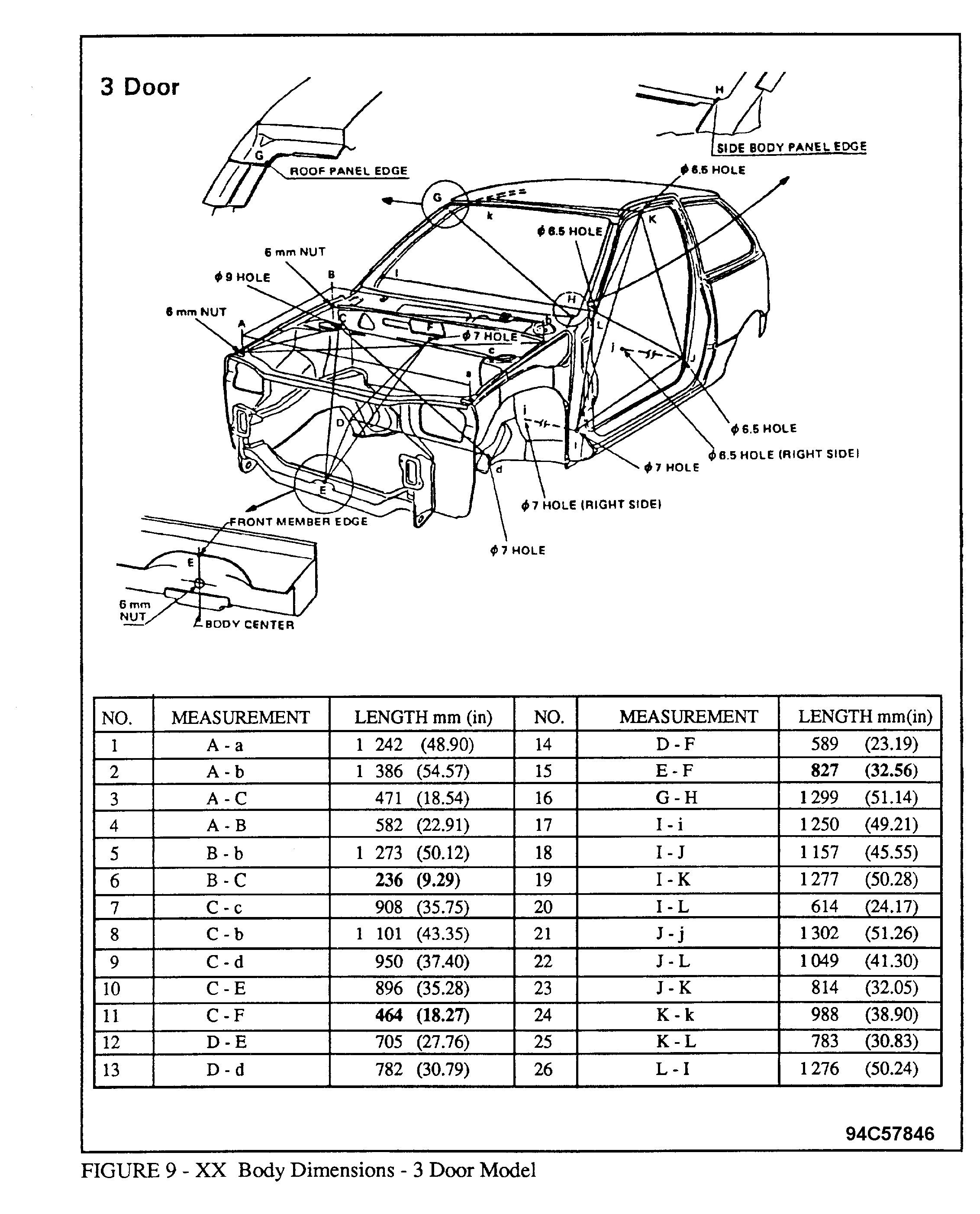

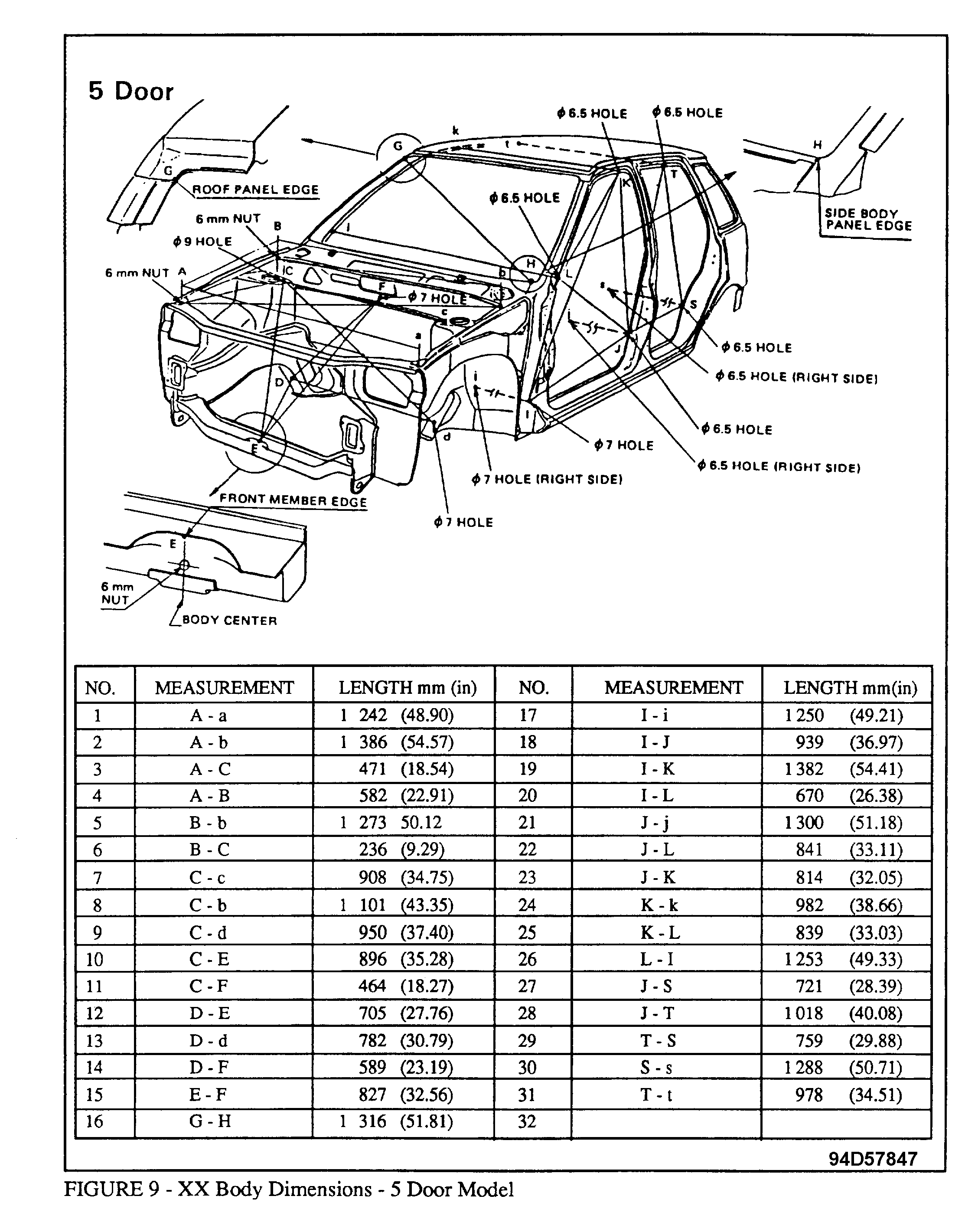

The dimensions shown in Section 9 "BODY UNDER DIMENSIONS" and "BODY DIMENSIONS" of the Service Manuals have been partially modified. Therefore, please update your manual accordingly. The details are shown in Fig 1 through Fig 4 .
MANUALS TO BE UPDATED
| Manual Name | Manual No. | Description | Page |
|---|---|---|---|
| SWIFT GTi | 99500-64B00-33E | Service Manual | 9 - 36, 37 |
| SWIFT | 99501-63B00-33E | Service Manual | 9 - 11, 12 |

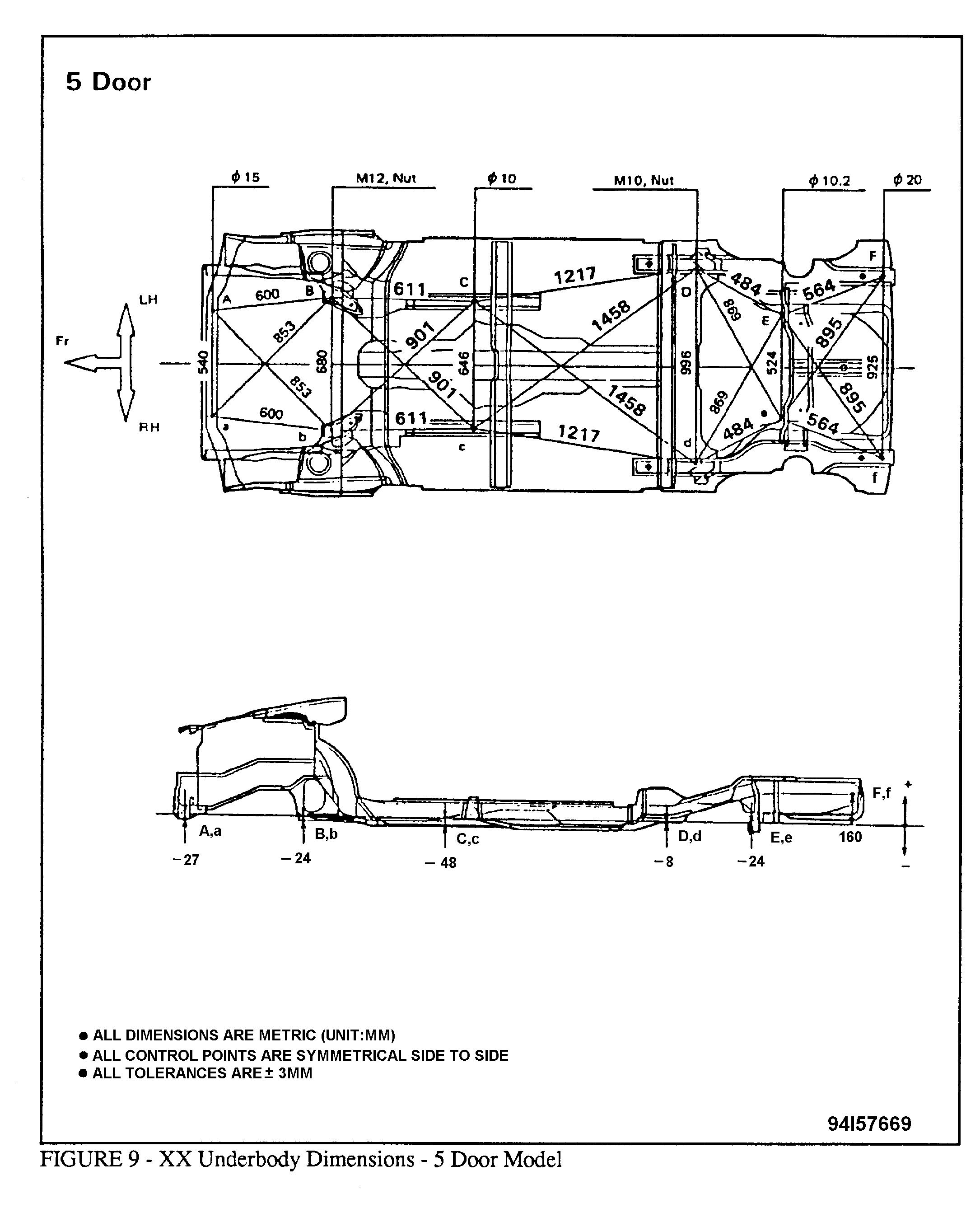

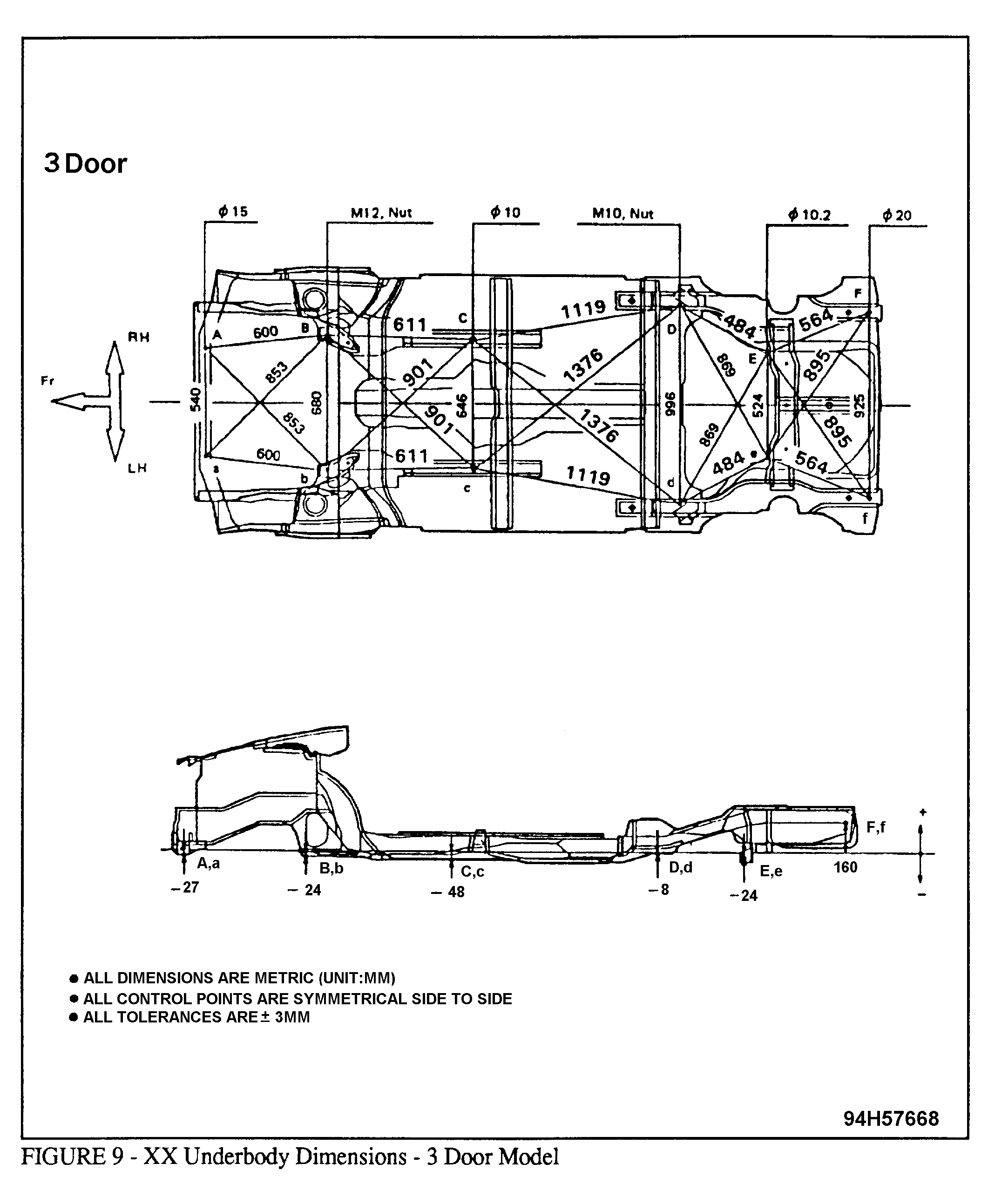

UNDERBODY DIMENSIONS
Each underbody components affects the strength of the car itself as well as wheel alignment (toe-in, camber, caster). It is essential, therefore to check the underbody carefully and perform welding properly. When damage is found in sealing or rust proof treatment, it must be repaired correctly. For sealing and rust proof treatment, refer to "ANTI-CORROSION TREATMENT".
