TPS Specification Correction (TS 4-16 06082)
Publication date: 1970-01-01Reference number: TS 4-16 06082
TPS SPECIFICATION CORRECTION
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 4-16 06082, Date of Issue:
TPS SPECIFICATION CORRECTION
Model(s): Suzuki Swift DOHC
Bulletin No.: TS 4-16 06082
Division: Automotive
Category: Technical
Section Title: Engine
CONDITION
Incorrect specification
CAUSE
Not applicable
CORRECTION
Make correction in the following Service Manual Pages:
AFFECTED SERVICE MANUALS
| Service Manual | Part Number | Chart On |
|---|---|---|
| 1989 Swift GTi | 99500 64B00-33E | 6E-83 |
| 1989 - 1990 Swift | 99500 64B10-33E | 6E-83 |
| 1991 Swift | 99500-64B20-33E | 6E-83 |

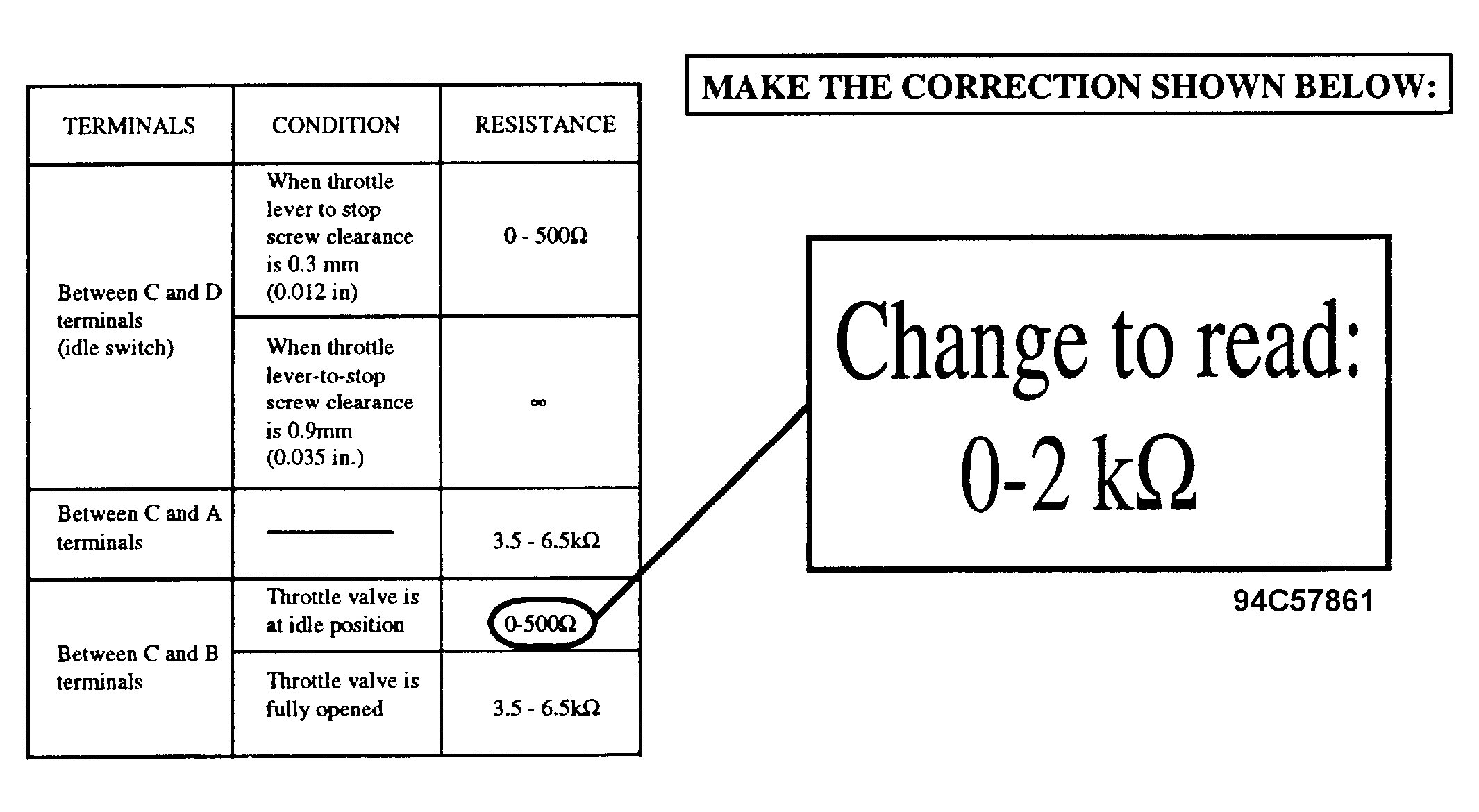

Make the correction shown in Fig 1 .
