Required Special Tools Table (TS 6-01 03050)

REQUIRED SPECIAL TOOLS TABLE

TECHNICAL SERVICE BULLETIN

SWIFT SPECIAL TOOLS

Model(s): 1990 Suzuki Swift

Section Title: Tools and Equipment

Division: Automotive

Category: Technical

Bulletin No.: TS 6-01 03050

Date: March 5, 1990

SERVICE INFORMATION

Following is a current list of required special tools found in the dealer essential tool kit.

Please be sure your dealership has all the listed special tools, and that they are available to your service technicians. Individual tools can be ordered through Suzuki's parts department by their specific part number.

PARTS INFORMATION

Tool Name/Number	Use
Piston Remover/ Installer (09910-38211) See Fig 1 .	Use to remove and install the engine piston pin.
Bearing Puller (09913-65810) See Fig 2 .	Used when removing manual transmission rear bearing.
Bearing Installer (09913-85210) See Fig 3 .	Used to install oil seal in automatic transmission oil pump body.
10mm Hexagon Socket (09915-27810) See Fig 4 .	Used to remove manual transmission drain plug.

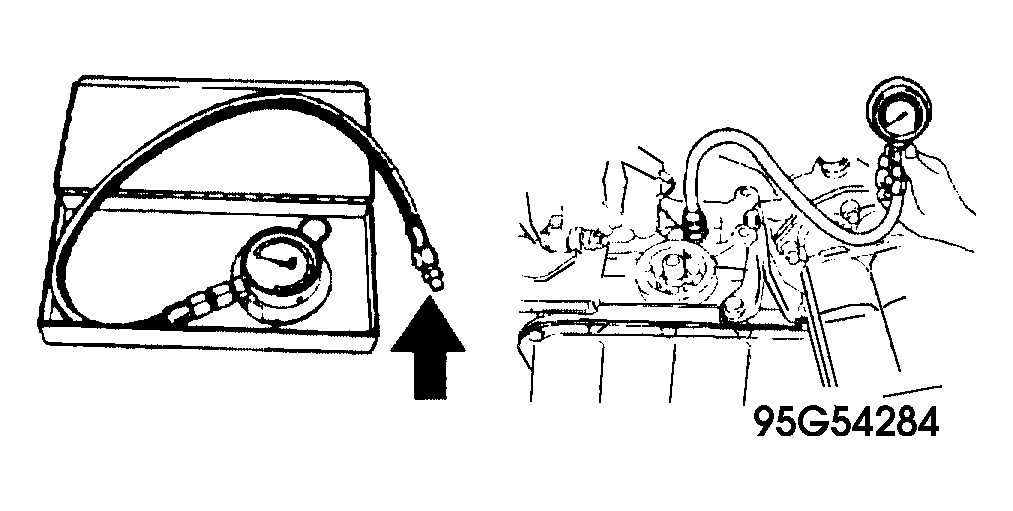

Oil Pressure Gauge Attachment (09915-78211) See Fig 5 .	Used with oil pressure gauge (p/n 09915-77310) to measure oil pressure.
Valve Lifter Attachment (09916-14910) See Fig 6 .	Used with valve lifter (p/n 09916-14510) to compress valve springs.
Valve Guide Reamer (09916-34550) See Fig 7 .	Use to ream intake valve guide bore.
Valve Guide Reamer (09916-38210) See Fig 8 .	Used to ream exhaust valve guide bore.
Valve Guide Remover (09916-44910) See Fig 9 .	Used to drive valve guide out from combustion chamber side of cylinder head to valve spring side.
Valve Guide Attachment (09916-56010) See Fig 10 .	Used with valve guide installer handle (p/n 09916-58210) to install valve guide.
Valve Guide Handle (09916-58210) See Fig 11 .	Used with valve guide installer attachment (p/n 09916-56020) to install valve guide.
Valve Stem Seal Installer (09917-98220) See Fig 12 .	Used with valve guide installer handle (p/n 09916-58210) to install valve stem seal.
Bearing Remover (09921-20200) See Fig 13 .	Used with sliding shaft (p/n 09930-30102) to remove the steering rack pinion bearing.
Clutch Bush Remover (09922-46010) See Fig 14 .	Used to adjust low brake band tension of automatic transmission.
Pipe, Joint (09923-46020) See Fig 15 .	Used with sliding shaft (p/n 09930-30102) to remove #1 clutch release shaft bushing.
Bearing Puller (09923-73210) See Fig 16 .	Used with sliding shaft (p/n 09930-30102) to remove manual transmission input shaft R bearing when left in right case during disassembly.
Bearing Installer (09923-78210) See Fig 17 .	Used when press fitting manual transmission low speed sleeve and hub.
Oil Seal Installer (09925-58210) See Fig 18 .	Used when installing manual transmission gear shift shaft oil seal.
Bearing Outer Race Inst. (09925-68210) See Fig 19 .	Used when installing manual transmission countershaft R bearing cup.
Remover, Spring Pin 6mm (09925-78210) See Fig 20 .	Used to remove spring pins from manual transmission gear shift and select shaft assembly.
Clutch Spring Compressor (09926-98310) See Fig 21 .	Used with press to disassemble the automatic transmission direct clutch.
Gear Holder (09927-76010) See Fig 22 .	Used to remove and install manual transmission counter shaft nut.
Remover, RR Axle (09941-17911) See Fig 23 .	Used with Sliding Hammer (09942-15510) to remove wheel hub.
Rack Bush Installer (09943-78210) See Fig 24 .	Used to install (press-fit) steering rack bushing into rack housing.
Socket (43mm) (09944-28210) See Fig 25 .	Used to remove and install steering pinion bearing plug.
Rack Bush Remover (09944-48210) See Fig 26 .	Used to remove steering rack bushing from rack housing.
Piston Installer (09945-16030) See Fig 27 .	Used to adjust brake caliper piston clearance between brake disc and pad
Spring Installer Nut (09945-16040) See Fig 28 .	Used to install brake caliper spring and seat
NOTE: Many of the tools listed are used on other Suzuki models.
