Output Shaft & Planetary Carrier

  1. Install thrust washer and Torrington bearing into planetary carrier. Retain in place with petroleum jelly.
  2. Insert output shaft and planetary carrier from front of case. Ensure planetary carrier engages reaction sun gear.

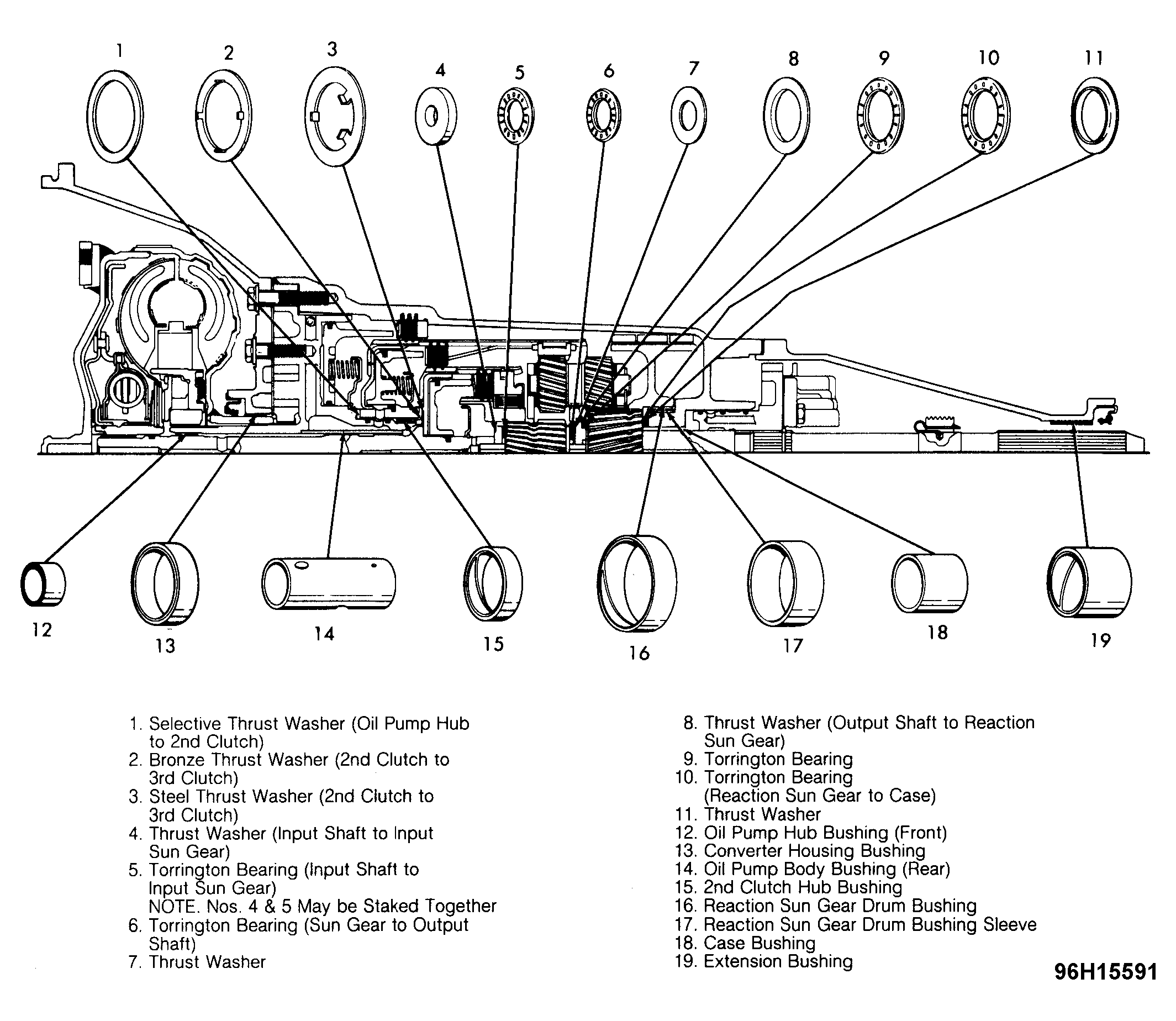

Fig 1: Cutaway View of Transmission Case Showing Location of Thrust Washers & Bushings
G96H15591Courtesy of GENERAL MOTORS CORP.
