1.6/1.8L ENG PCV HOSE - PARTS/ASSEMBLY INSTRUCTIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 4-06 10260, Date of Issue:

POSITIVE CRANK CASE VENTILATION HOSE

Model(s): 1989-90 Suzuki Sidekick

Division: Automotive

Category: Technical

Section: Engine

Bulletin No.: 4-06 10260

SERVICE INFORMATION

This bulletin contains instructions for the assembly and installation of the positive crankcase ventilation hose.

ASSEMBLING SET

Assemble the following component parts first (as illustrated in Fig 1 ), before installing them on the car.

Align arrow marks when installing Breather Hose No. 1 and 2
DO NOT assemble protectors (4, 5, and 6). See Fig 1 .

CONTENTS OF THE SET

11191-61A10

96065120

Breather hose No. 1

11192-61A10

96065121

Breather hose No. 2

11193-61A10

96065122

Joint

11194-61A10

96065123

Hose Protector No. 1 ⁽¹⁾

11197-61A10

96065294

PCV Valve Protector ⁽²⁾

11198-61A10

96065306

Hose Protector No. 2

09401-18402

96051491

Clamp

09401-23403

96065124

Clamp

09401-13406

96051489

Clamp

⁽¹⁾	Item 5 is placed over the PCV Valve.

⁽²⁾	Items 4 and 6 are installed after the hose assembly is installed on the vehicle.

Fig 1: Crankcase Ventilation Hose Assembly

BREATHER HOSE INSTALLATION

Make sure that engine is stopped and parking brake is fully applied.
By using pliers and screwdriver, remove breather hoses originally fitted to the car.
Place PCV valve protector as illustrated in Fig 2 .
Install breather hoses. See Fig 2 .
Fit clamps.

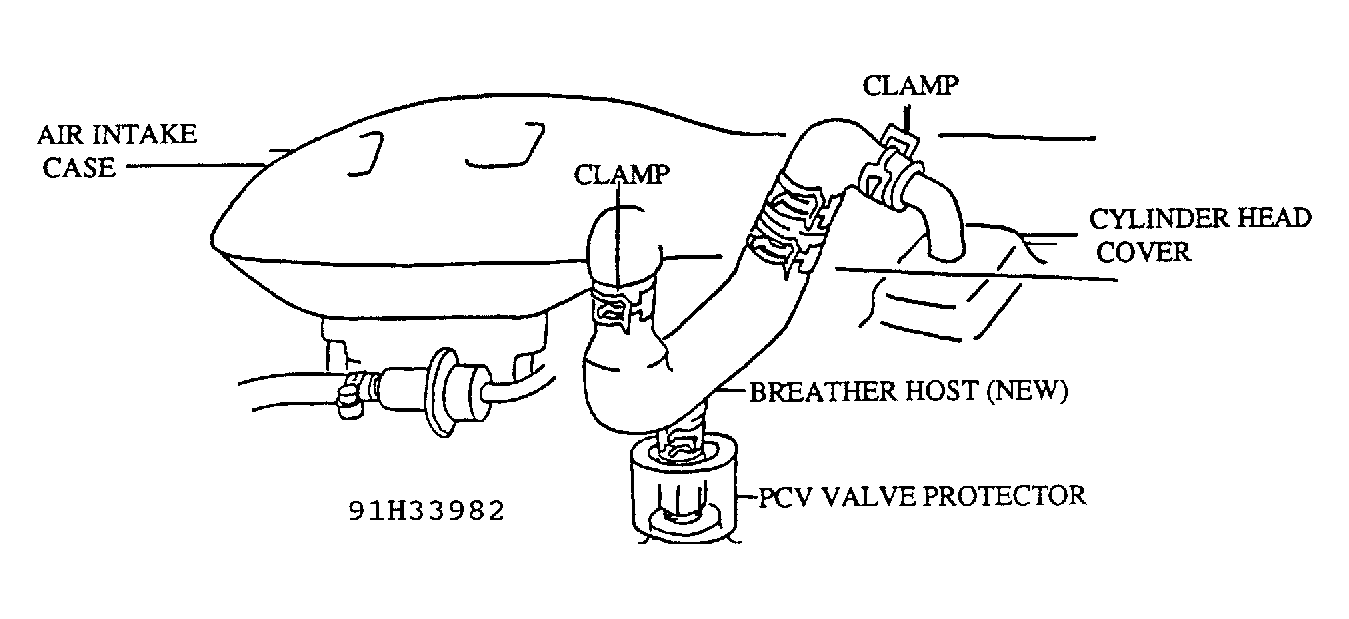

Fig 2: Breather Hose Installation

PROTECTOR INSTALLATION

Remove clear film from inside protectors (expose self-adhesive surface).
Place each protector (as illustrated in Fig 3 ) and fit them securely.

Fig 3: Hose Protector Installation
