Required Special Tools Table (TS 6-05 03050)

WARNING: This page is about the Sidekick JLX, which is a different variant/trim than selected.
Publication date: 1990-03-05
Reference number: TS 6-05 03050

REQUIRED SPECIAL TOOLS TABLE

REQUIRED SPECIAL TOOLS TABLE

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 6-05 03050, Date of Issue:  March 5, 1990

SIDEKICK SPECIAL TOOLS

Model(s): 1990 Suzuki Sidekick

Section Title: Tools and Equipment

Division: Automotive

Category: Technical

Bulletin No.: TS 6-05 03050

Date: March 5, 1990

SERVICE INFORMATION

Following is a current list of required special tools found in the dealer essential tool kit.

Please be sure your dealership has all the listed special tools, and that they are available to your service technicians. Individual tools can be ordered through Suzuki's parts department by their specific part number.

SIDEKICK REQUIRED SPECIAL TOOLS

Tool Name/Part Number Use
Hexagon, Bit 5mm (09900-00413) See Fig 1 . Use with 8mm socket to loosen and tighten crankshaft pulley bolts.
Piston pin remover (09910-36010) See Fig 2 . Used to remove and install piston pin
Case Separator (09912-34510) See Fig 3 . Used to separate upper case and lower case.
Fuel Pressure Gauge Set (09912-58412) See Fig 4 . Used to measure fuel pressure.
Remover, Valve Guide (09916-46010) See Fig 5 . Used to drive valve guide out from combustion chamber.
Vacuum Hose Joint (09918-08210) See Fig 6 . Used with vacuum pump gauge (p/n 09917-47910) to measure engine vacuum.
Torque Converter Puller (09918-48211) See Fig 7 . Used with additional 10mm bolt to remove torque converter.
Bush Installer (09918-96010) See Fig 8 . Used with support base (p/n 09919-06010) to remove and install torque stopper bush (manual transmission mount).
Support Base (09919-06010) See Fig 9 . Used with housing installer (p/n 09918-96010) to remove and install torque stopper bush (manual transmission).
Holder, Flange (09922-66020) See Fig 10 . Use when removing flange nut.
Guide Clutch (09923-36330) See Fig 11 . Used to align clutch disc to flywheel center.
Installer, Bearing (09925-98221) See Fig 12 . Used to drive out and drive in the clutch release shaft bush.
Attachment, Rea. Remr. (09927-08210) See Fig 13 . Used to press-fit low speed synchronizer sleeve and hub onto main shaft.
Stopper, Gear (09927-56010) See Fig 14 . Used to prevent the crankshaft from turning during removal and installation of engine parts involved in engine revolution. Install it to flywheel gear or drive plate gear.
Remover, Bearing Oil Seal (09941-64511) See Fig 15 . Used with bearing installer (p/n 09951-76010) to remove transfer output front shaft needle roller bearing and rear case bearing.
Installer, Oil Seal (09944-66010) See Fig 16 . Used to install steering knuckle oil seal and front wheel hub oil seal.
Holder Differential Carrier (09944-76010) See Fig 17 . Used to hold differential carrier (front & rear) so as to facilitate disassembly, reassembly and adjustment of differential assembly.
Gauge, Booster Piston Rod (09950-96010) See Fig 18 . Used to measure clearance between booster piston rod and master cylinder piston.
Tightening Wheel Bearing (09951-16050) See Fig 19 . Used to tighten front wheel bearing nut.
Attachment (09951-16070) See Fig 20 . Used with mounting dummy (p/n 09926-78311 ) to measure and adjust drive bevel pinion height (rear differential).
Bush Remover Plate (09951-26010) See Fig 21 . Used to press-fit output rear shaft assembly into center case.
Fuel Pressure Gauge Adaptor (99963-00015) See Fig 36 . Used to perform fuel pressure tests under various conditions.
NOTE: Many of these tools are used on other Suzuki models.
AUTOMATIC TRANSMISSION KIT (99963-00007) CONTENTS

Tool Name/Part Number Use
Base and Screw Assembly (99963-00008) See Fig 22 . Used with holding fixture (p/n 99963-00009) to mount transmission/transfer assembly to work bench.
Slide Hammer (99963-00010) See Fig 23 . Used with converter housing seal remover (p/n 99963-00001) to remove the converter housing oil seal.
Snap Ring Pliers (09920-76010) See Fig 24 . Used with clutch piston compressor (p/n 09922-86010) to remove spring seat retaining ring.
Holding Fixture (99963-00009) See Fig 25 . Used with base and screw assembly (p/n 99963-00008) to mount transmission/transfer assembly to work bench.
Pump Oil Seal Installer (09926-26010) See Fig 26 . Used to install oil seal in converter.
Clutch Spring Compressor (09927-66020) See Fig 27 . Used with Servo piston ring installer (p/n 99963-00013) to install Servo piston.
Second Clutch Piston Seal Installer (09927-66010) See Fig 28 . Used to install the second clutch piston seal.
Alignment Tool (09927-66010) See Fig 29 . Used to align converter housing and pump.
Hub Gauge Tool (09923-46010) See Fig 30 . Used to choose the correct selective washer for second clutch.
Vacuum Modulator Wrench (09920-36020) See Fig 31 . Used to remove and install the vacuum modulator.
Converter Housing Seal Remover (99963-00011) See Fig 32 . Used to remove converter housing oil seal.
Clutch Spring Compressor (09922-86010) See Fig 33 . Used to compress reverse clutch spring seat to remove retaining spring.
Servo Piston Ring Installer (99963-00013) See Fig 35 . Used with clutch spring compressor (p/n 09927-66020) to install Servo piston.
Third Clutch Snap Ring Compressor (99963-00014) See Fig 35 . Used to compress third clutch snap ring.
NOTE: Many of these tools are used on other Suzuki models.
Fig 1: 5mm Hexagon Bit I.D. & Use
G95H54244
Fig 2: Piston Pin Remover I.D. & Use
G95I54245
Fig 3: Case Separator I.D. & Use
G95J54246
Fig 4: Fuel Pressure Gauge Set I.D. & Use
G95A54247
Fig 5: Valve Guide Remover I.D. & Use
G95B54248
Fig 6: Vacuum Hose Joint I.D. & Use
G95C54249
Fig 7: Torque Converter Puller I.D. & Use
G95G54250
Fig 8: Bush Installer I.D. & Use
G95H54251
Fig 9: Support Base I.D. & Use
G95I54252
Fig 10: Flange Nut Holder I.D. & Use
G95J54253
Fig 11: Clutch Guide I.D. & Use
G95A54254
Fig 12: Bearing Installer I.D. & Use
G95B54255
Fig 13: Rea. Remover Attachment I.D. & Use
G95C54256
Fig 14: Gear Stopper I.D. & Use
G95D54257
Fig 15: Oil Bearing Seal Remover I.D. & Use
G95E54258
Fig 16: Oil Seal Installer I.D. & Use
G95F54259
Fig 17: Differential Carrier Holder I.D. & Use
G95I54260
Fig 18: Booster Piston Rod Gauge I.D. & Use
G95J54261
Fig 19: Tightening Wheel Bearing Tool I.D. & Use
G95A54262
Fig 20: Mounting Dummy Attachment I.D. & Use
G95B54263
Fig 21: Bush Remover Plate I.D. & Use
G95C54264
Fig 22: Base & Screw Assembly I.D. & Use
G95D54265
Fig 23: Slide Hammer I.D. & Use
G95E54266
Fig 24: Snap Ring Pliers I.D. & Use
G95F54267
Fig 25: Holding Fixture I.D. & Use
G95G54268
Fig 26: Pump Oil Seal Installer I.D. & Use
G95H54269
Fig 27: Clutch Spring Compressor I.D. & Use
G95A54270
Fig 28: Second Clutch Piston Seal Installer I.D. & Use
G95B54271
Fig 29: Converter Housing Alignment Tool I.D. & Use
G95C54272

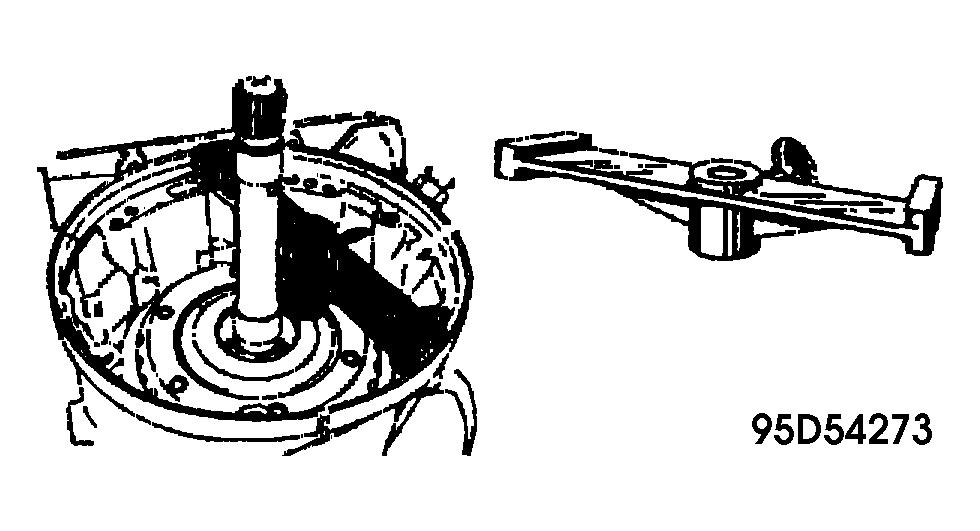

Fig 30: Hub Gauge Tool I.D. & Use
G95D54273
Fig 31: Vacuum Modulator Wrench I.D. & Use
G95E54274
Fig 32: Converter Housing Seal Remover I.D. & Use
G95F54275
Fig 33: Clutch Spring Compressor I.D. & Use
G95G54276
Fig 34: Servo Piston Ring Installer I.D. & Use
G95H54277
Fig 35: Third Clutch Snap Ring Compressor I.D. & Use
G95I54278
Fig 36: Fuel Pressure Gauge Adaptor I.D. & Use
G95J54279
