SPEEDOMETER CABLE BROKEN - CABLE REPLACEMENT/ROUTING

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 7-02 03071, Date of Issue:

ROUTING OF SPEEDOMETER CABLE

Model(s): All Suzuki Sidekick

Bulletin No.: TS 7-02 03071

Group: Accessories & Electrical

Condition: Broken speedometer cable.

Cause: Improper routing of cable.

CAUTION: Improper routing of speedometer cable can cause premature cable breakage. To avoid damage be sure there is no shaft cable bend. For proper installation follow the procedures below.

SPEEDOMETER CABLE REMOVAL PROCEDURE

Follow the procedures outlined in Fig 1 through Fig 7 for correct speedometer cable removal.

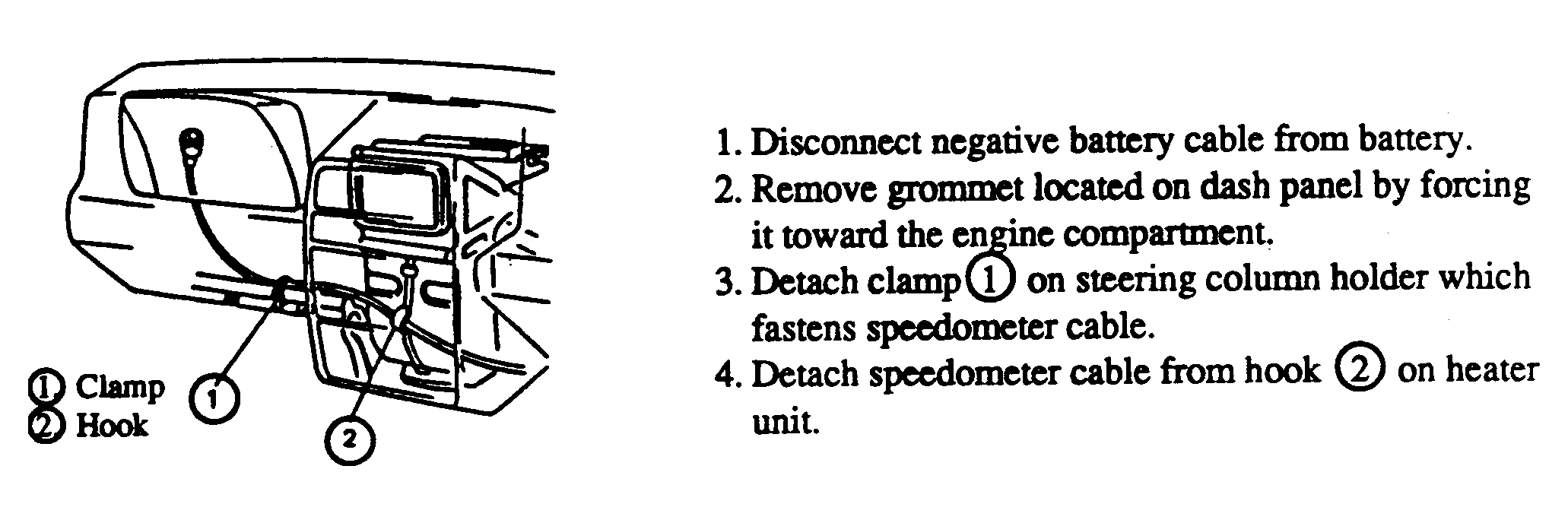

Fig 1: Front Dash Panel Cable Location

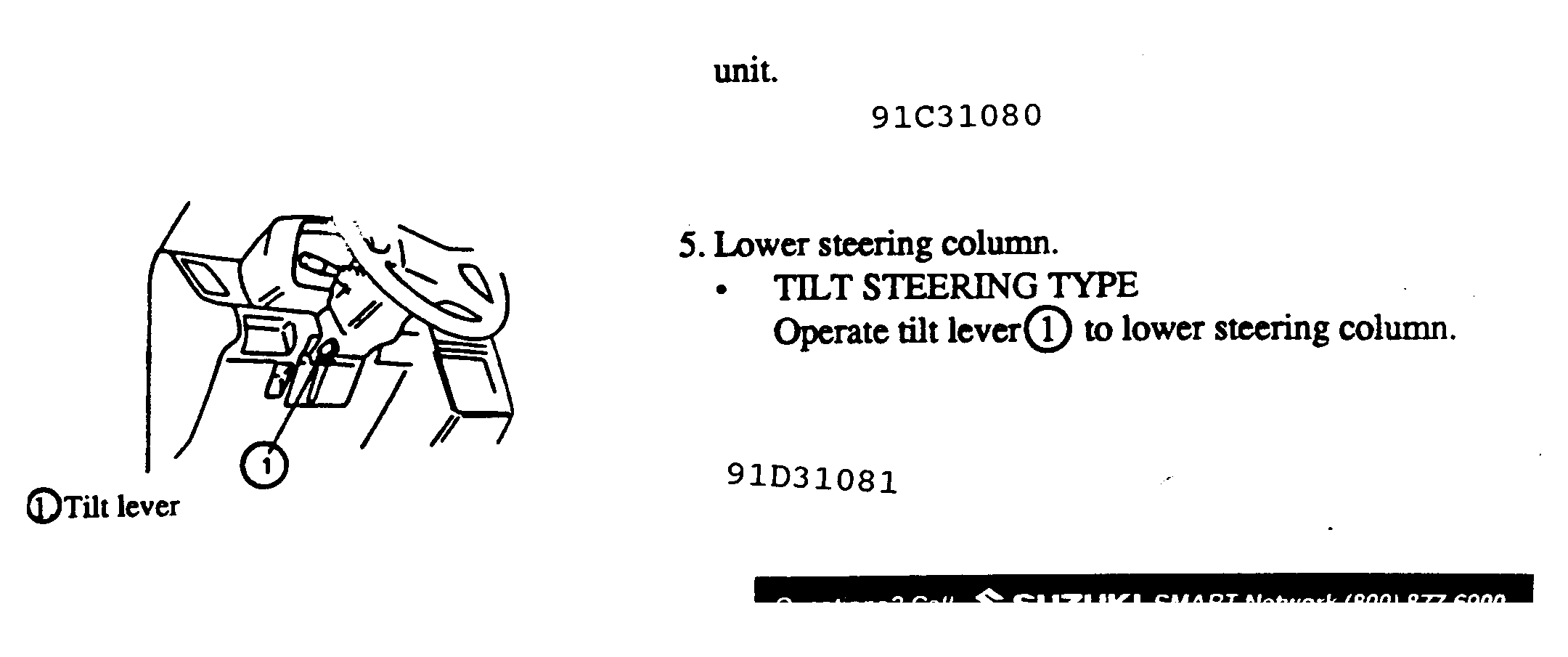

Fig 2: Steering Lever Location

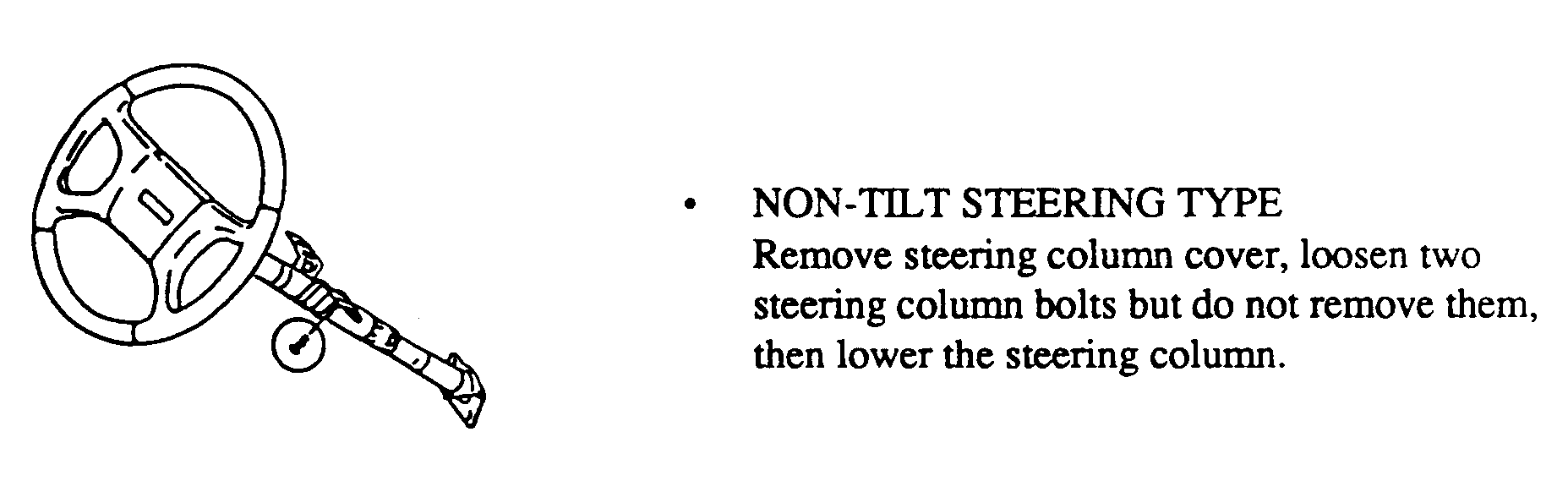

Fig 3: Steering Column Fastener Location

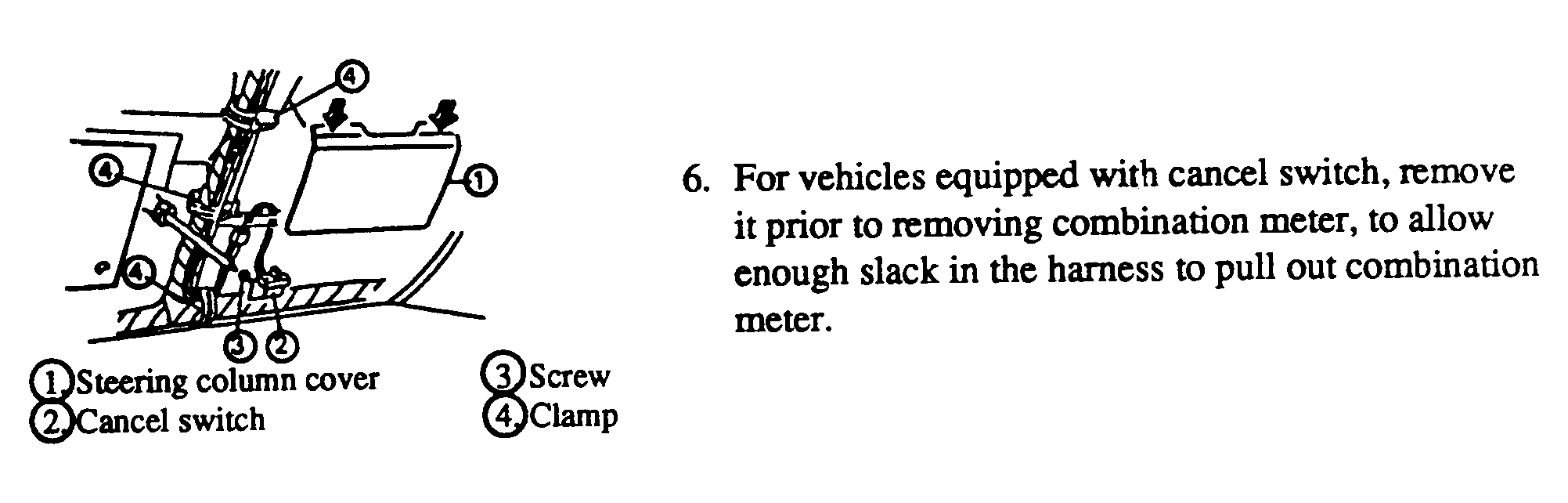

Fig 4: Cancel Switch Location

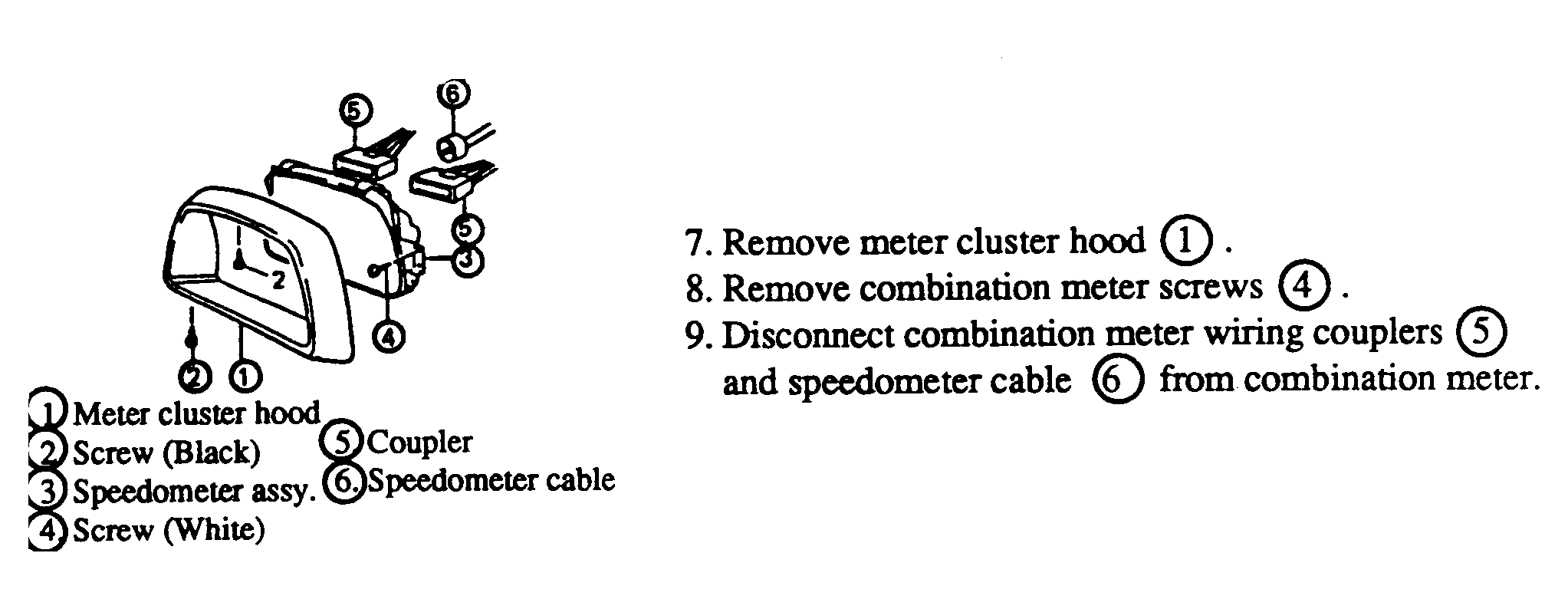

Fig 5: Meeter Cluster Assembly

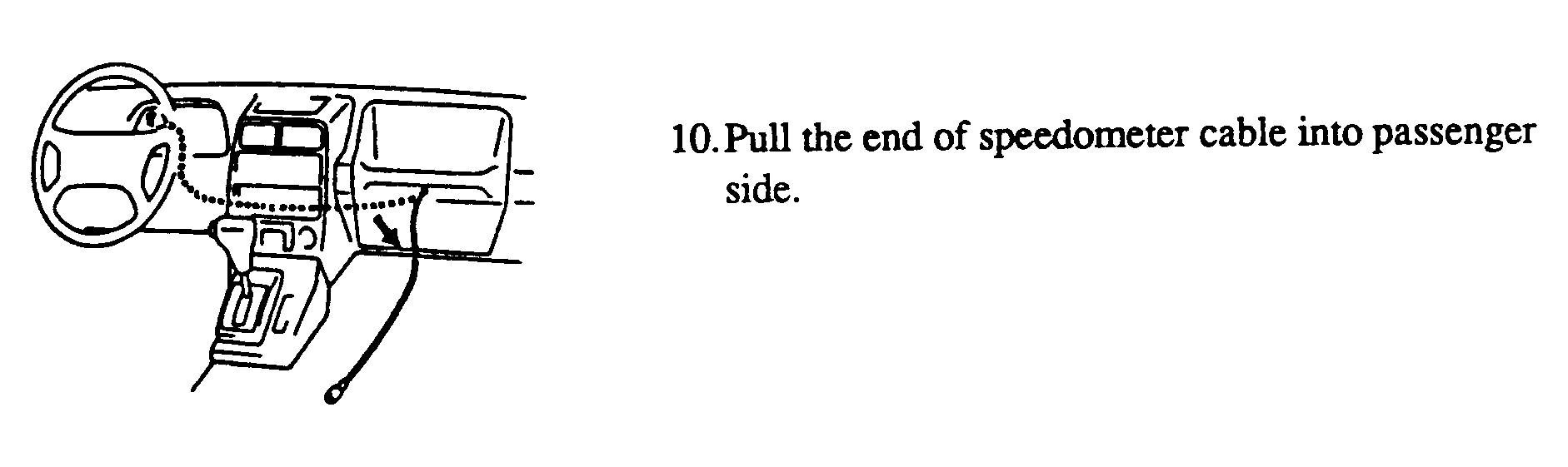

Fig 6: Front Dash View

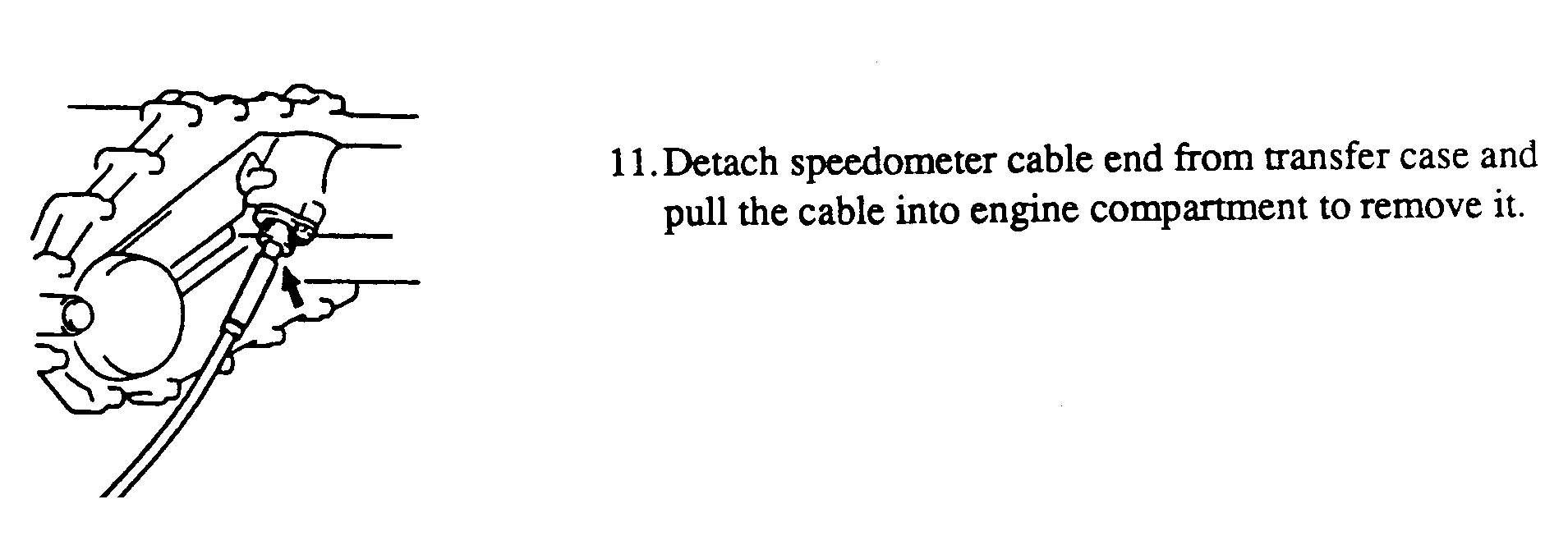

Fig 7: Transfer Case View

SPEEDOMETER CABLE INSTALLATION PROCEDURE

Perform the installation procedures in the reverse order of removal. For proper clamp location and cable routing, refer to Fig 8 and Fig 9 .

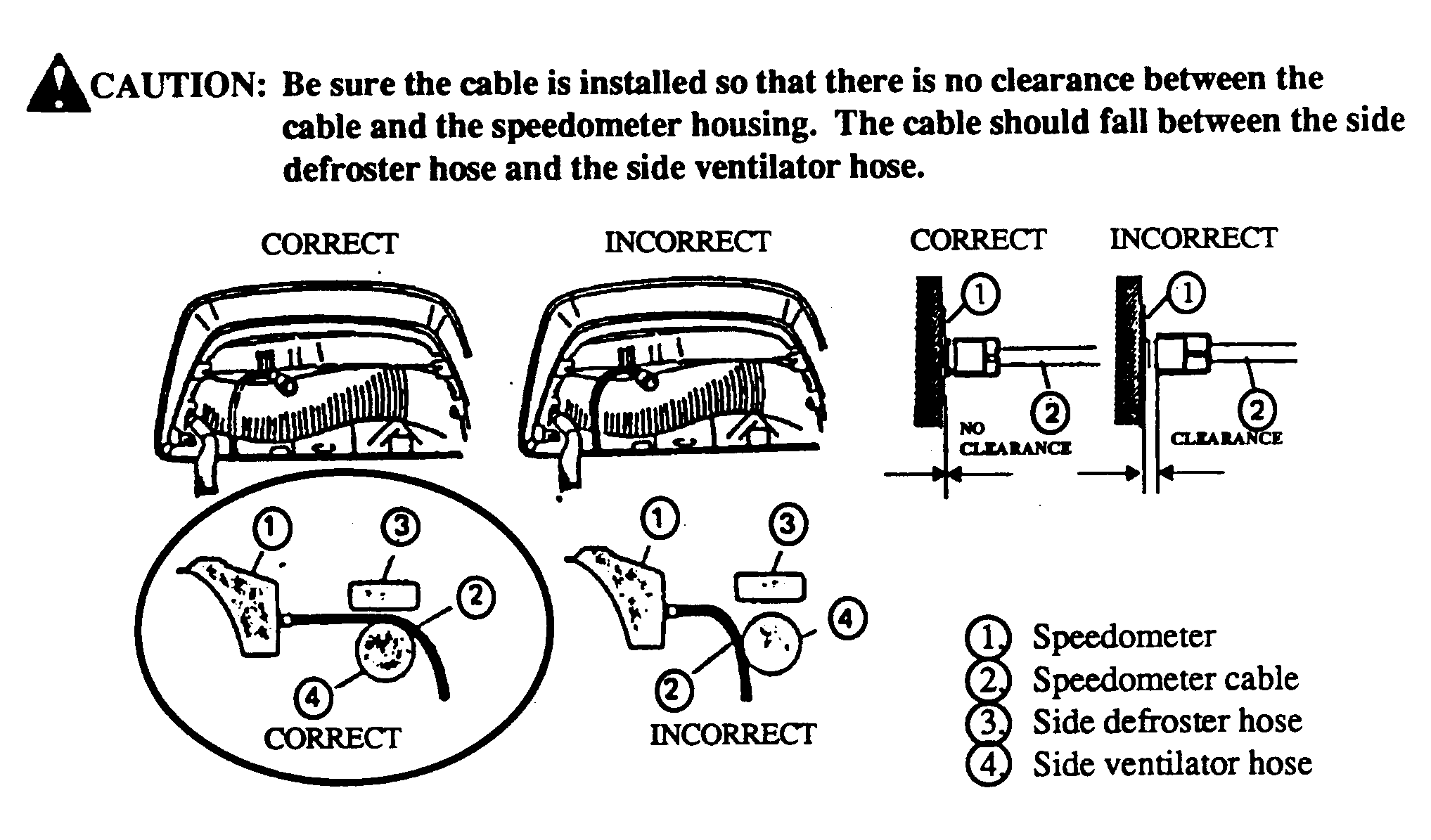

Fig 8: Installation View

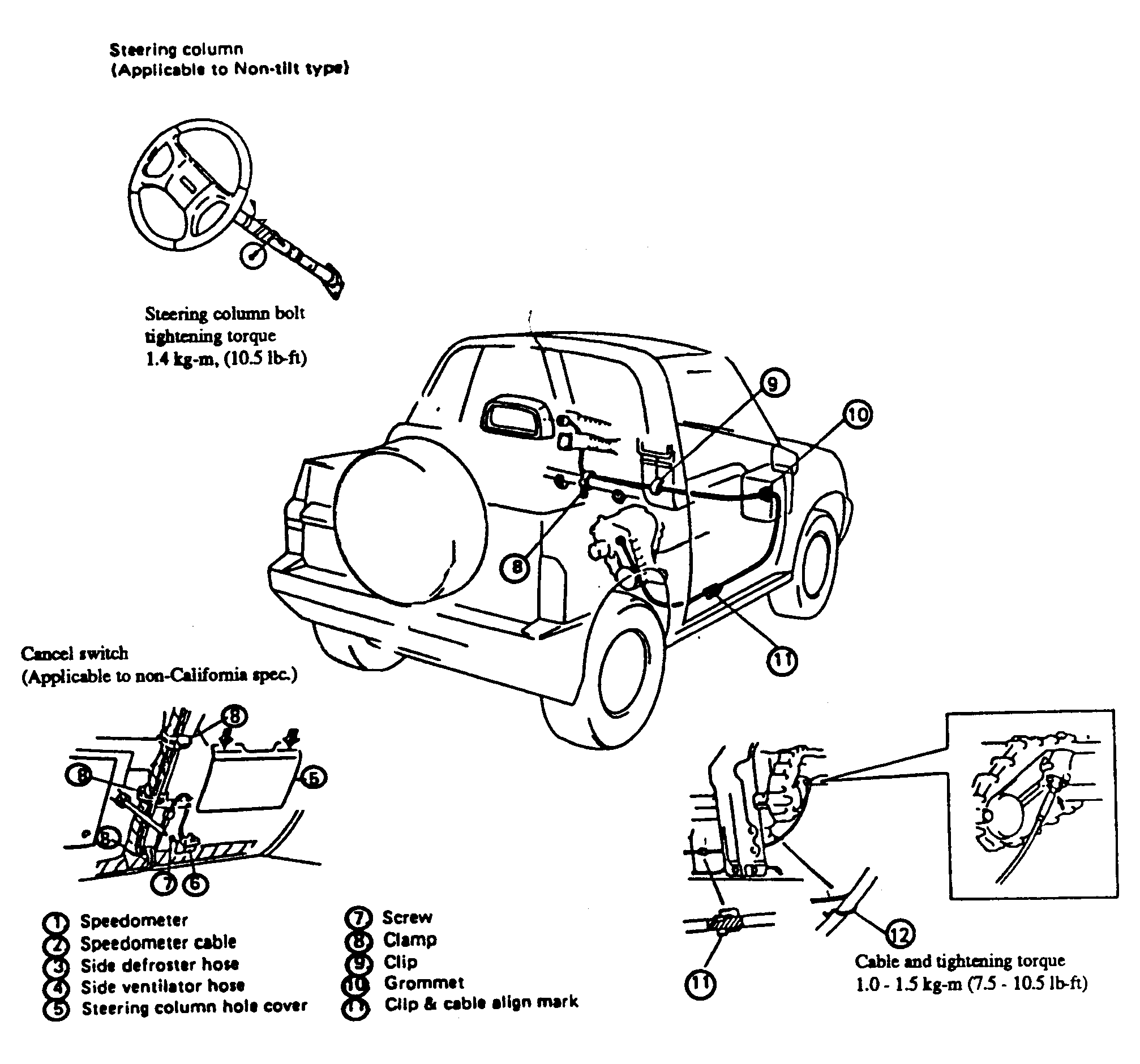

Fig 9: Installation Assembly
