Modification Of A/T Internal Parts (TS 3-05 05113(R))

MODIFICATION OF A/T INTERNAL PARTS

TECHNICAL SERVICE BULLETIN

MODIFICATION OF A/T INTERNAL PARTS

Model(s): Suzuki Sidekick 1990 Production And Later All (3-speed Automatic Transmission)

Bulletin No.: TS 3-05 05113(R)

Division: Automotive

Category: Technical

Section Title: Drivetrain

CONDITION

Modification of A/T internal parts.

CAUSE

Factory modification.

CORRECTION

Use replacement parts as listed in this bulletin.

REVISION

Additional changes in the input shaft assembly kit, planetary input sun gear assembly, and the addition of an input sun gear washer.

This bulletin is to inform you of the following modifications in the 3-speed automatic transmission:

• The depth of the transmission case assembly has been modified.
• A new reaction sun gear #2 washer has been added.
• The following planetary gear elements have been modified:
  1. Planetary rear sun gear assembly. (May 1990 production and later).
  2. Planetary gear carrier assembly (May 1990 production and later).
  3. Planetary input sun gear assembly (July 1990 production and later).
  4. Planetary ring gear (May 1990 production and later).
  5. Input shaft assembly kit (July 1990 production and later).
  6. Input sun gear washer (July 1990 production and later).

When replacing these parts, please use the modified parts as listed in this bulletin.

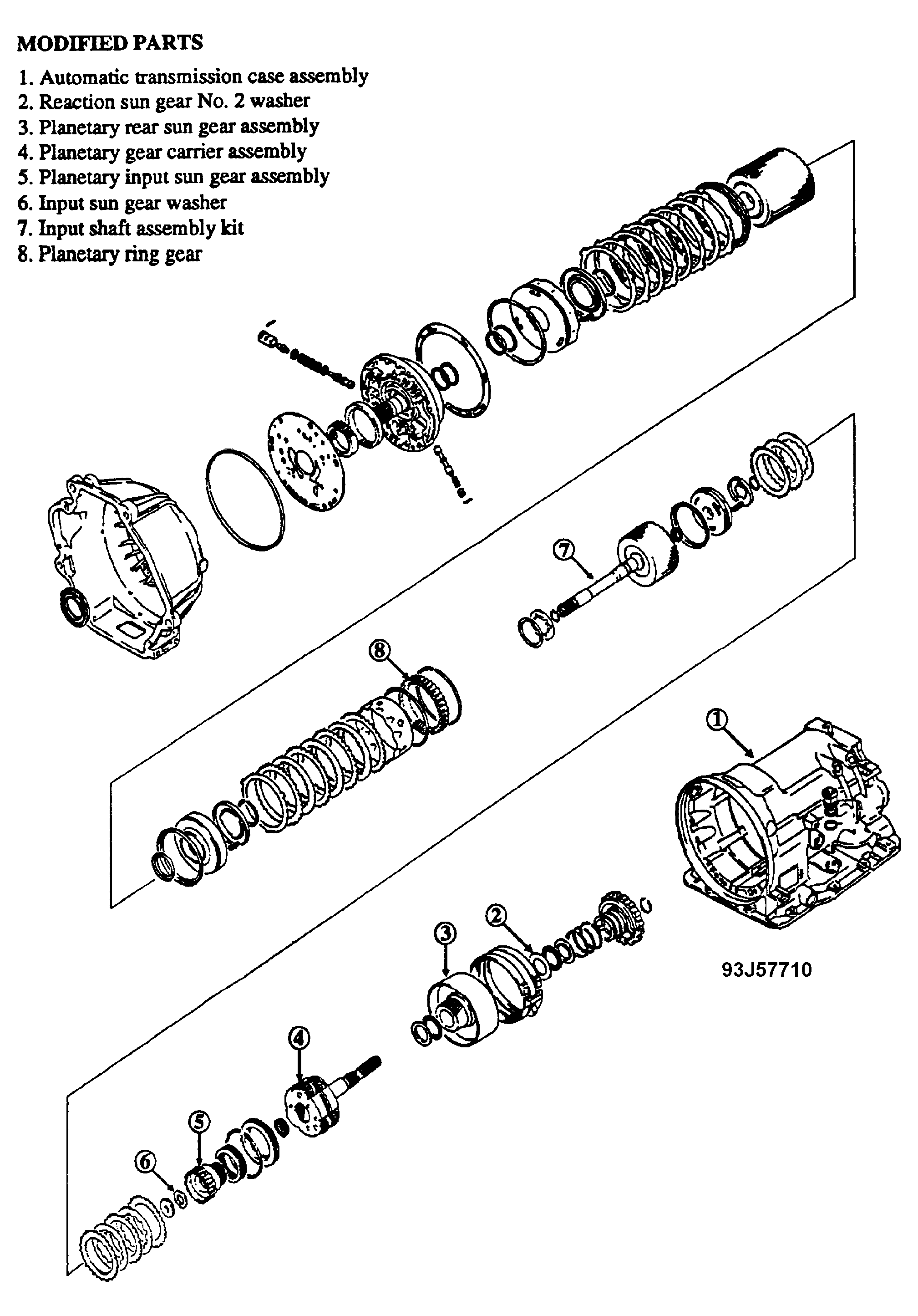

MODIFIED PARTS

Refer to Fig 1 .

1. Automatic transmission case assembly
2. Reaction sun gear No. 2 washer
3. Planetary rear sun gear assembly
4. Planetary gear carrier assembly
5. Planetary input sun gear assembly
6. Input sun gear washer
7. Input shaft assembly kit
8. Planetary ring gear

MODIFICATION DETAIL

1. Transmission case - The depth of the transmission case assembly as shown in Fig 2 has been modified. The late type is deeper by 2 mm (0.079) than the early type.
2. Reaction sun gear #2 washer. The thickness of the washer is 2.0 mm (0.079 in). See Fig 2 .

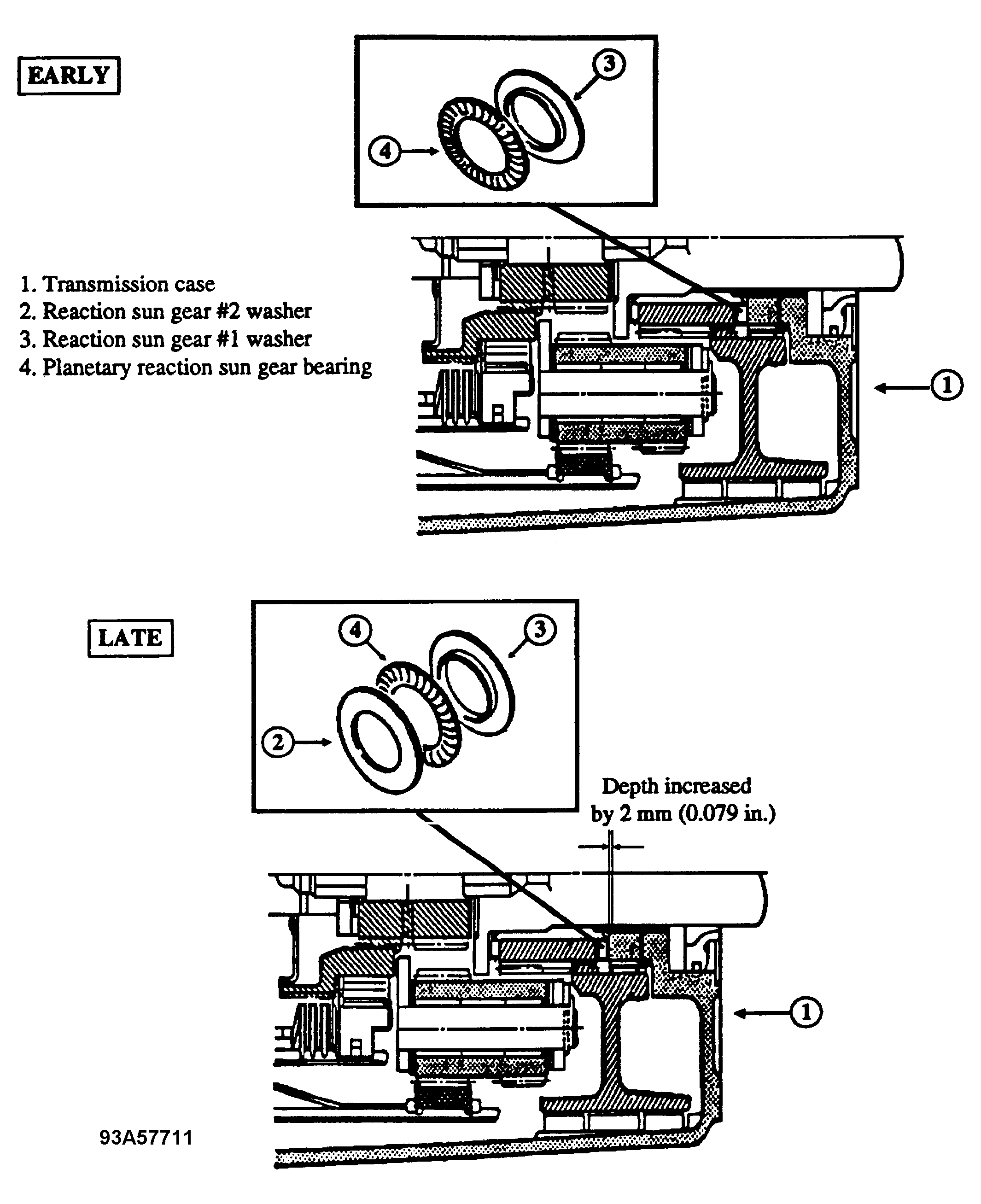

   Fig 2: Transmission Case/Reaction Sun Gear #2 Washer Modifications


3. Planetary Rear Sun Gear Assembly, Planetary Gear Carrier Assembly, Planetary Input Sun Gear Assembly, and Planetary Ring Gear - Gear elements modified. Use updated parts listed in this bulletin.

NOTICE FOR SERVICING

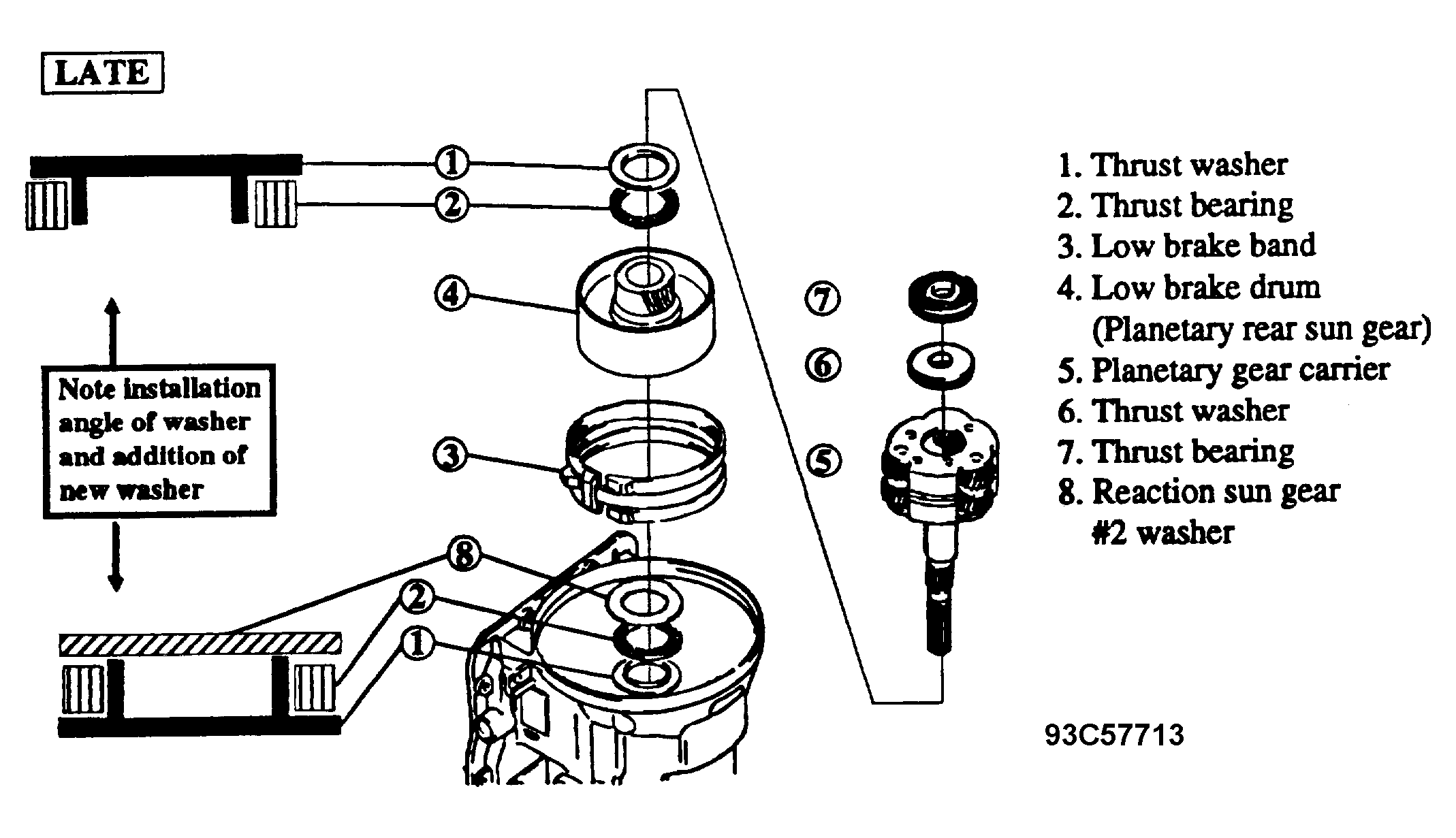

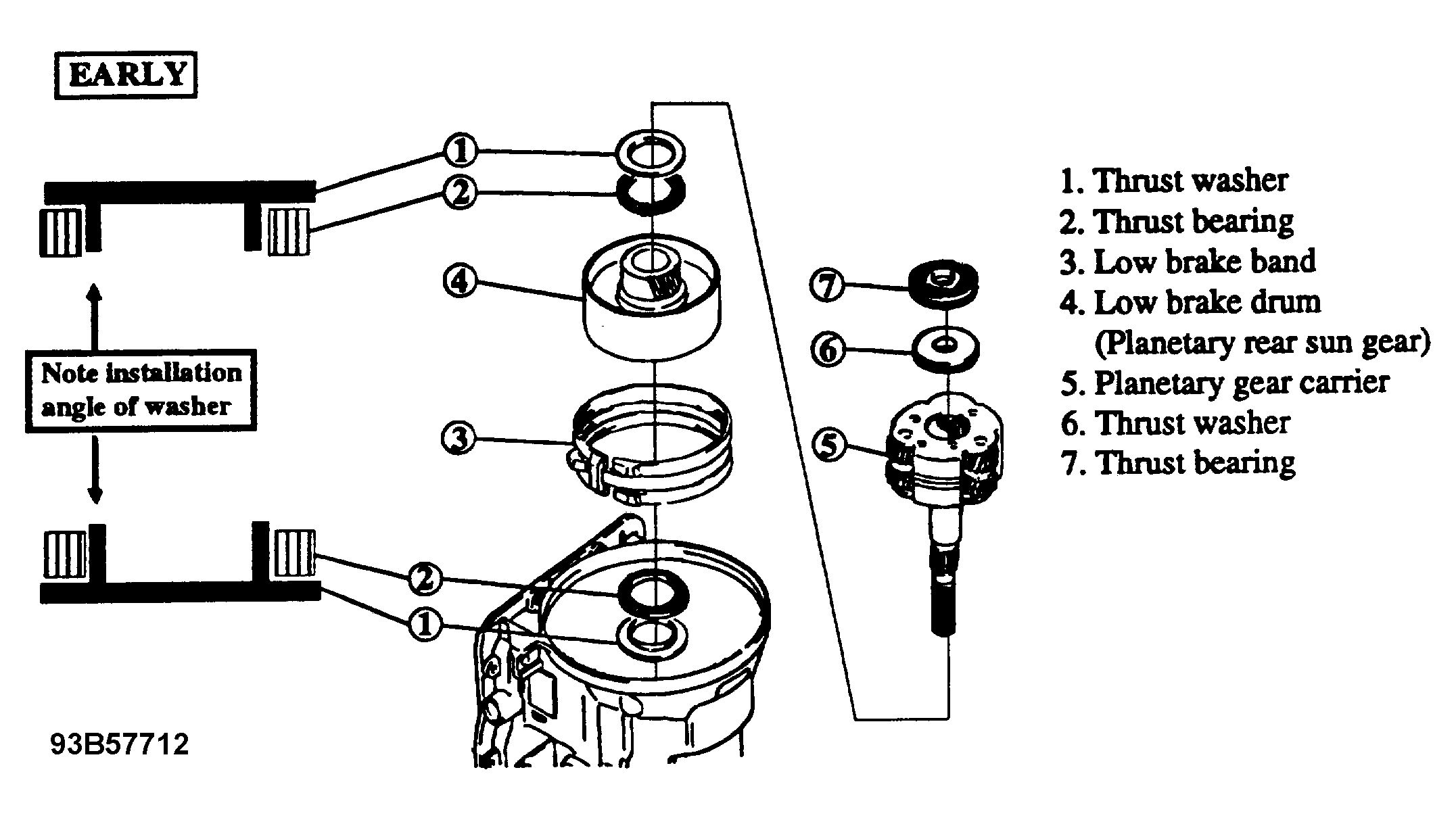

When assembling the low brake drum (planetary rear sun gear), be sure to take notice of the reaction sun gear #2 washer and the installation angles of the thrust washer and thrust bearing. The illustrations in Fig 3 and Fig 4 , show the early and late-type parts:

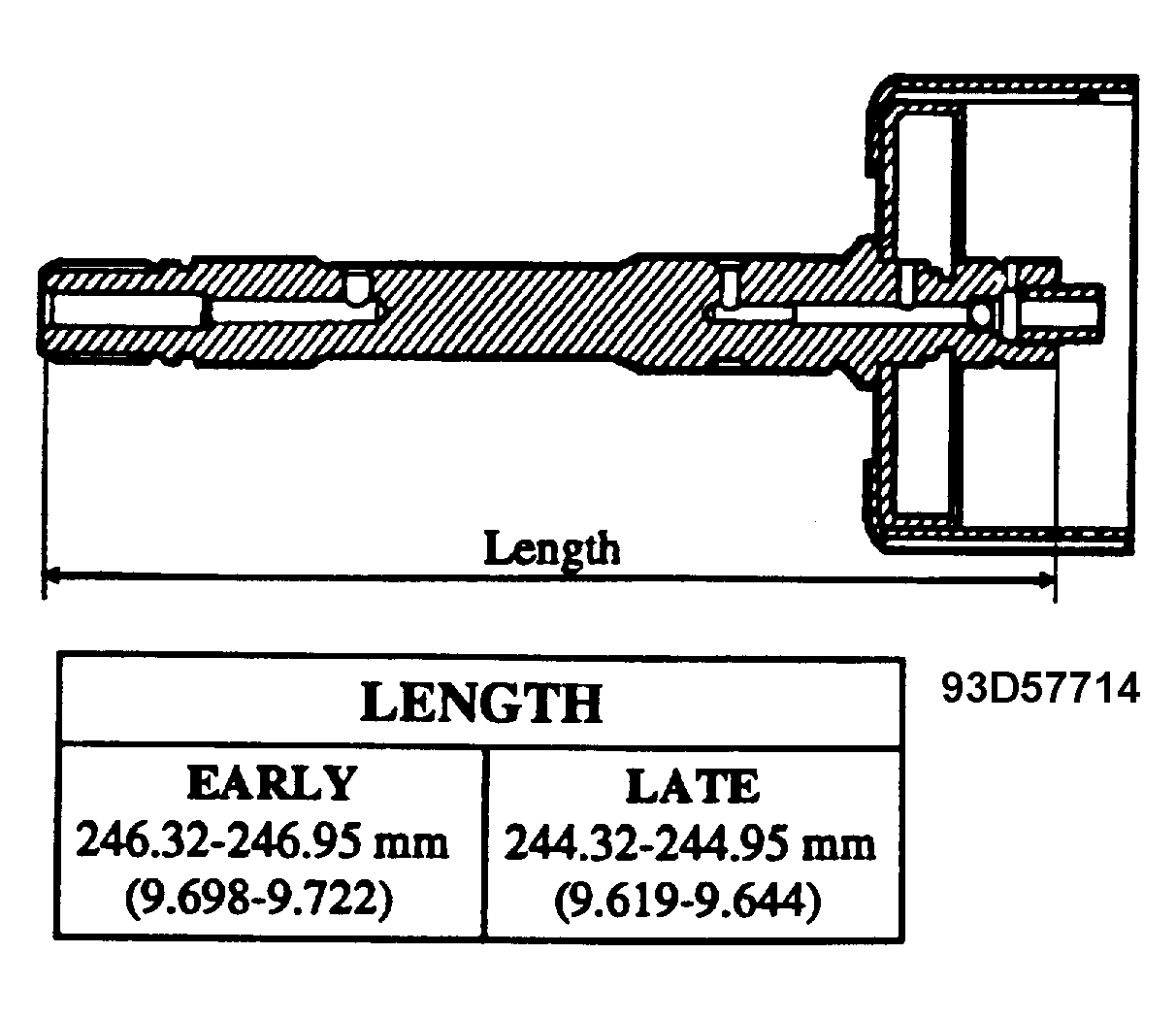

1. Input shaft assembly kit. Refer to Fig 5 .
   Fig 5: Input Shaft Assembly Kit Modification

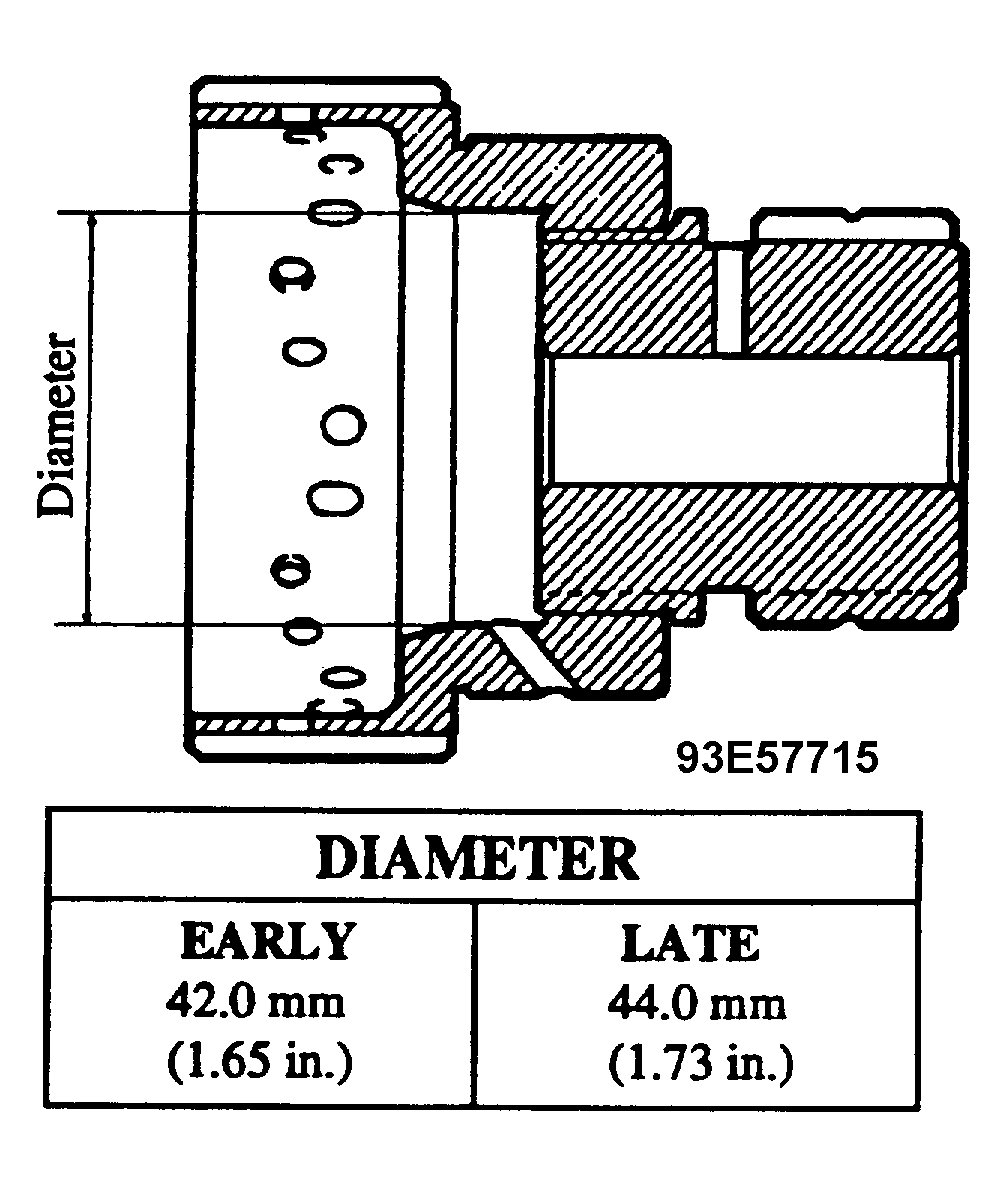

2. Planetary input sun gear assembly. Refer to Fig 6 .
   Fig 6: Planetary Input Sun Gear Assembly Modification


3. Input sun gear washer. Refer to Fig 7 .

PARTS SUPPLY DATA

REF #	PART NAME	EARLY PART NO.	LATE PART NO.	Qty	SUPPLY OF SPARE PARTS	INTERCHANGE- ABILITY (O:OK, X:NO)
1	A/T case assembly	24790-61A00	24790-61A01	1	Both early and late	Early-X->Late Early<-X-Late
2	Reaction sun gear #2 washer [2mm(.079 in)]	---	24924-61A00	1	Late only	---
3	Planetary rear sun gear assembly	24910-61A00	24910-61A01	1	Both early and late	Early-X->Late Early<-X-Late
4	Planetary gear carrierassembly	24930-61A00	24930-61A01	1	Both earlyand late	Early-X->Late Early<-X-Late
5	Planatary Ring Gear	26749-61A00	26749-61A01	1	Both early and late	Early-X->Late Early<-X-Late
6	Planetary input sun gear assembly	26670-61A00 or 26670-61A01	26670-61A02	1	Both early and late	Early-X->Late Early<-X-Late

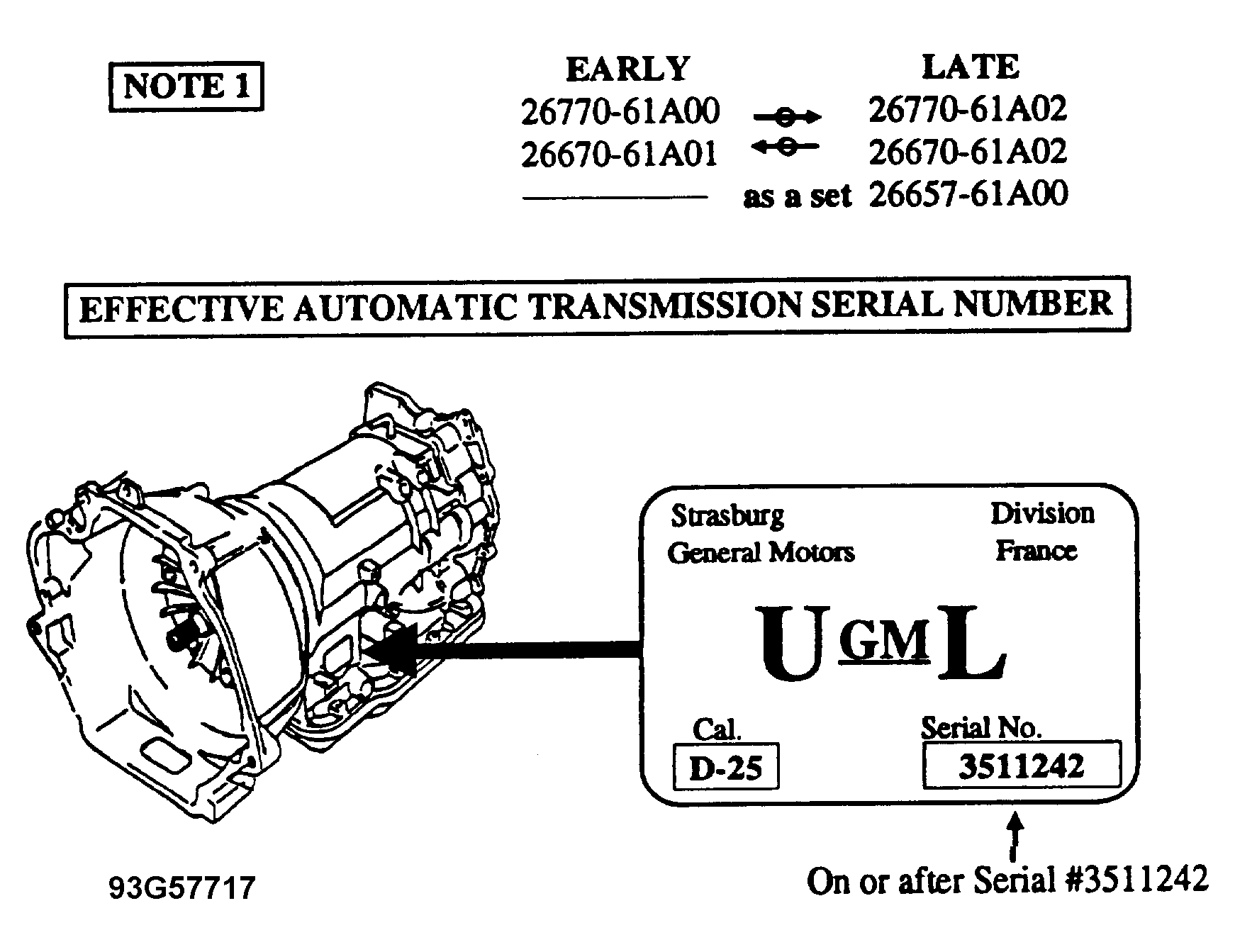

7	Input sun gear washer	--- (*  ) Items 7 and 8 - See Fig 8 .	26657-61A00	1	Late only	---
8	Input shaft assembly kit (*  ) Item 6 See Fig 8 and Fig 9 .	26770-61A00	26770-61A02	1	Both early and late	Early-X->Late Early<-X-Late

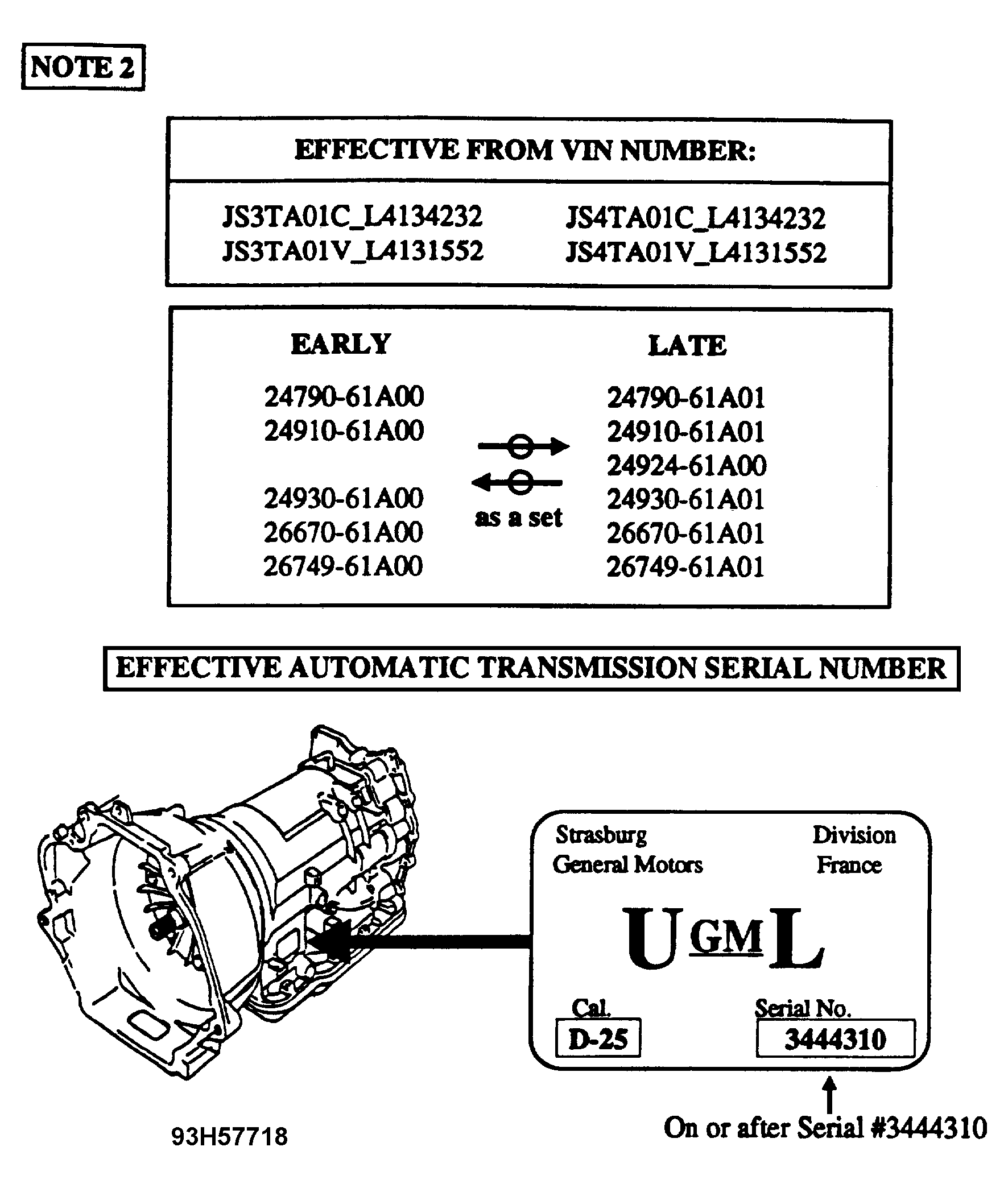

(*  ) Items 1 through 5 - See Fig 9 (*  ) Item 6 - See Fig 9 and Fig 9 . (*  ) Items 7 and 8 - See Fig 9 ,
