Publication date: 1992-12-01Reference number: TS 1-04 11080
STAINED CANVAS TOPS:IDENTIFICATION OF TREATED TOPS
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 1-04 11080, Date of Issue:
YELLOW OR PINK STAINS ON CANVAS TOPS
Model(s): 1989-93 Suzuki Sidekick
Group: Body & Frame
Bulletin No.: TS 1-04 11080
Date: December, 1992
SERVICE INFORMATION

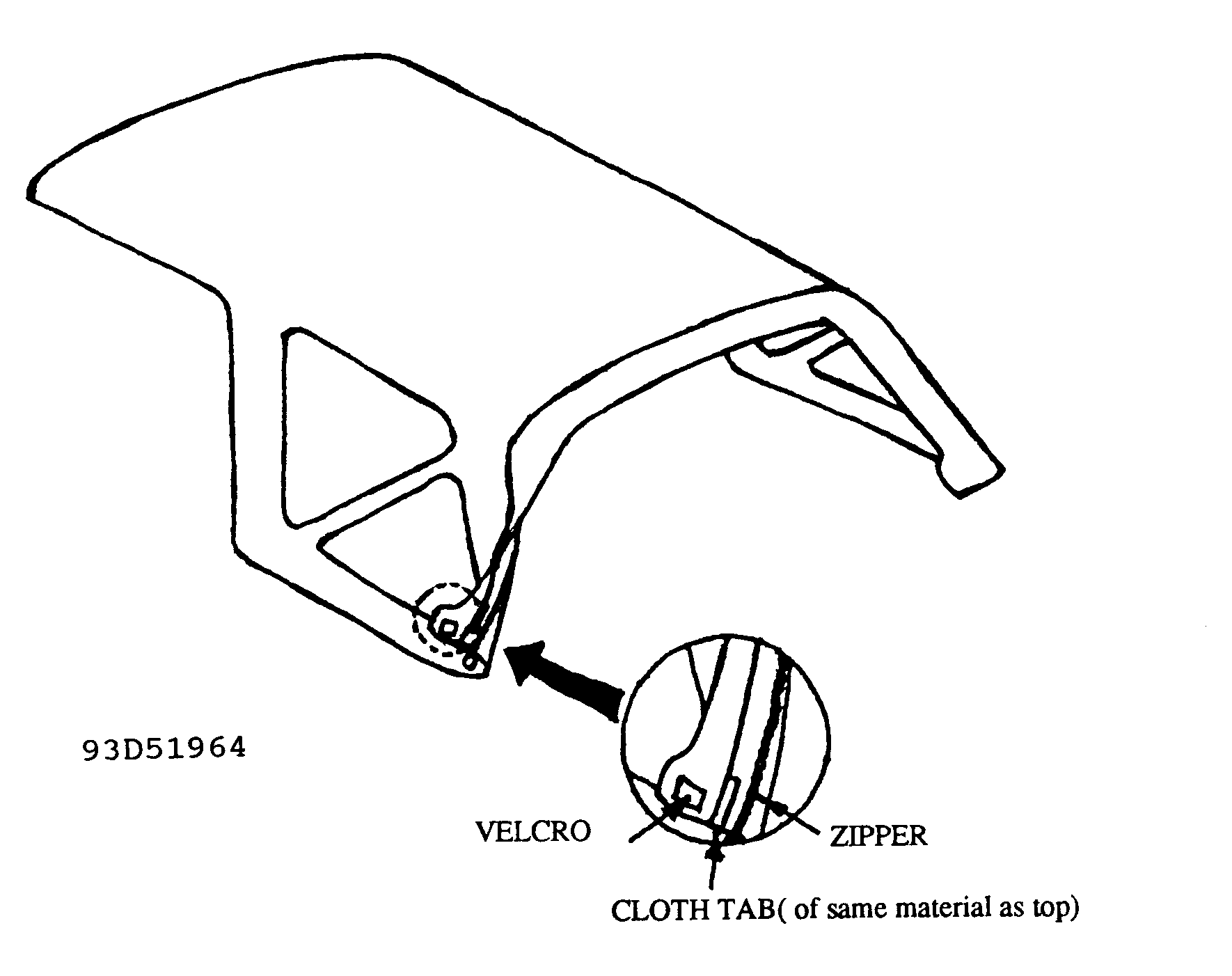

Yellow or pink stains on white convertible tops have been attributed to mold. Production from December 1989 on has included application of an anti-mold coating. These treated tops can be identified by a cloth tab sewn on as illustrated in Fig 1 .
