Shift Control Cable: Prizm

WARNING: This page is about a different car, the 1989 Geo Tracker and 1989 Geo Prizm. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen swivel nut on shift lever at transaxle. See Fig 1. Push manual lever fully toward right side of vehicle.
  2. Return manual lever 2 notches to Neutral position. Set shift lever in "N" range. While holding lever lightly toward "R" range side, tighten swivel nut.

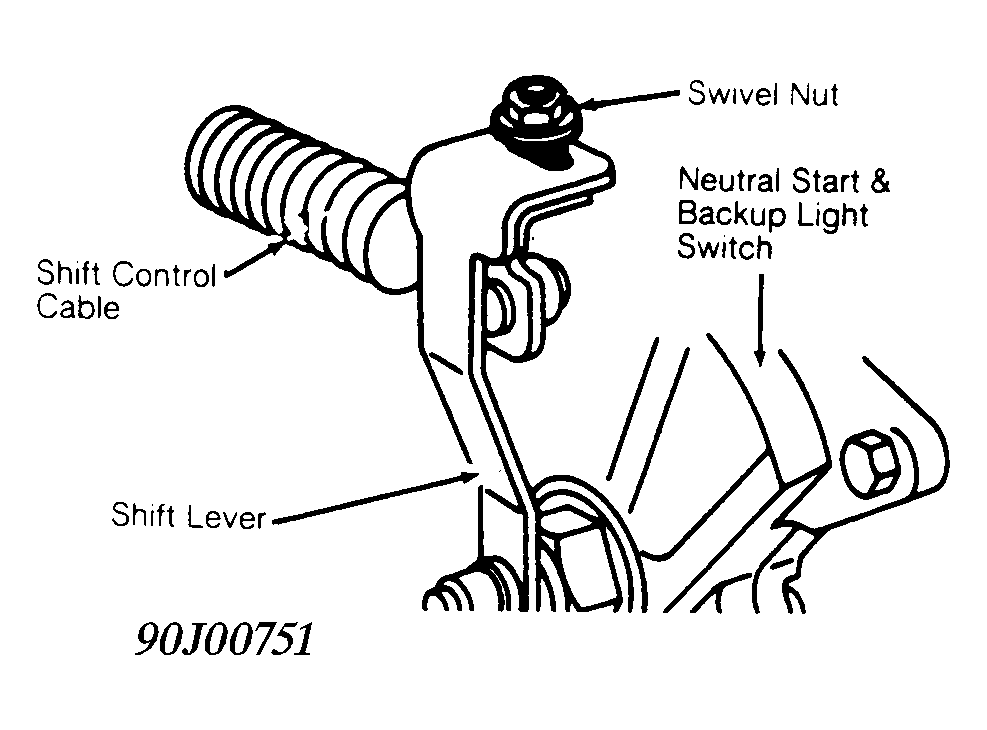

Fig 1: Adjusting Prizm Shift Control Cable
G90J00751Courtesy of GENERAL MOTORS CORP.
