KICKDOWN Cable: Tracker

WARNING: This page is about a different car, the 1989 Geo Tracker and 1989 Geo Prizm. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure accelerator cable is adjusted correctly. Loosen kickdown cable lock nut and adjusting nut. See Fig 1. Depress accelerator pedal fully and hold in this position.
  2. Pull kickdown cable in "A" direction. See Fig 1. Adjust lock nut-to-bracket clearance to 0-.039" (0-1 mm) by turning lock nut. When adjusting clearance, lock nut must NOT contact bracket.
  3. Release accelerator pedal. Keeping lock nut in place, adjust lock nut-to-bracket clearance to 0-.039" (0-1 mm) by turning ADJUSTING nut. When clearance is correct, tighten lock nut securely.

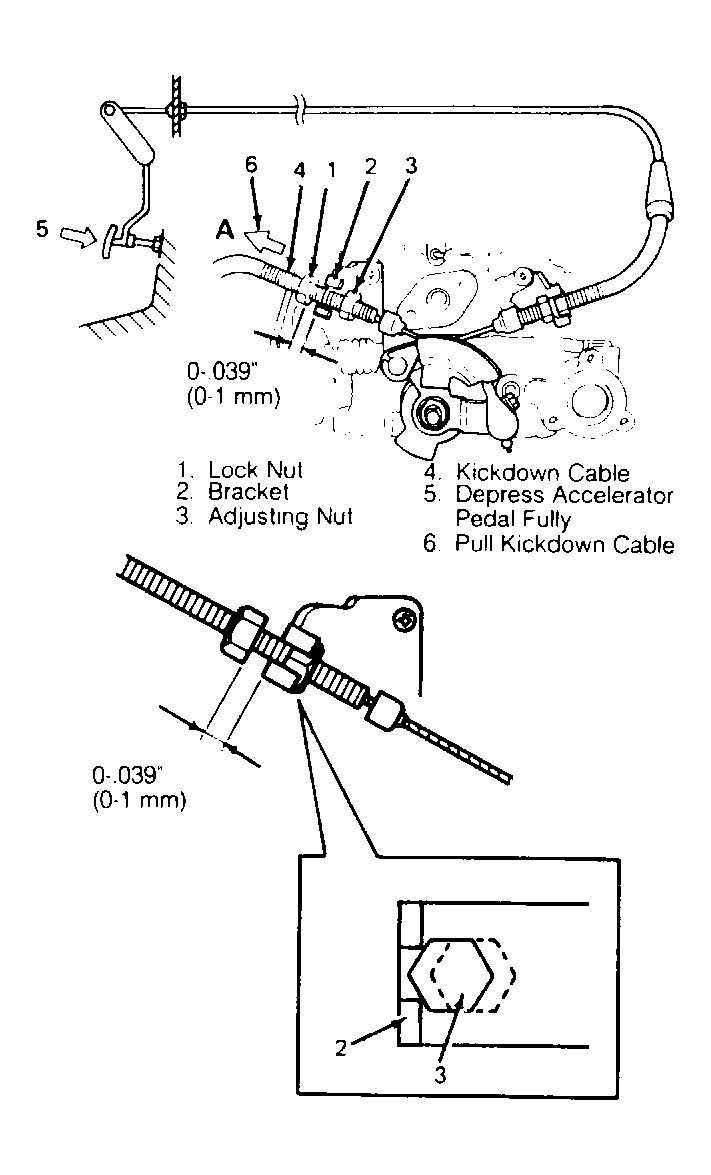

Fig 1: Adjusting Tracker Kickdown Cable
G90C00747Courtesy of GENERAL MOTORS CORP.
