Alternator & Regulator: Overhaul: Reassembly

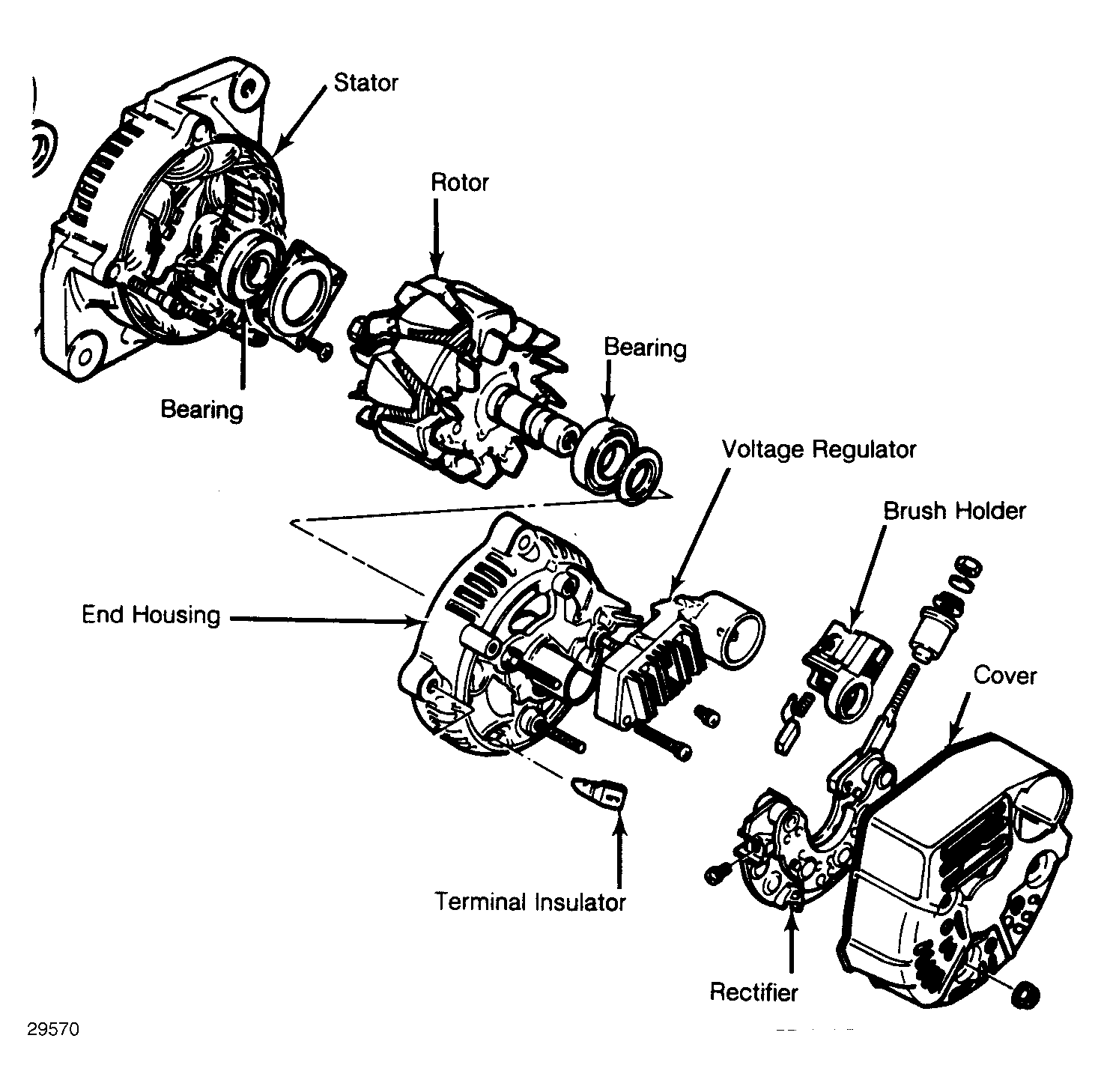

- To reassemble, reverse disassembly procedure. To install new bearings on either the rotor or the front drive housing, use a press.
- Ensure that the stator terminal insulation is properly installed. Install alternator pulley. Tighten pulley nut to 37-47 ft. lbs. (50-64 N.m).
