EFI Models Revised A/C ISC Device Installation (TS 2-06 03150)

Publication date: 1970-01-01
Reference number: TS 2-06 03150

EFI MODELS REVISED A/C ISC DEVICE INSTALLATION

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 2-06 03150, Date of Issue:

REVISION TO EFI A/C INSTALLATION

Model(s): ALL 1990

Bulletin No.: TS 2-06 03150

Group: Air Conditioning & Heating

Beginning Prod. Dates: 9/89

Beginning VIN: JS4JC31C_L4101900

SERVICE INFORMATION

The Samurai A/C installation procedure for installing the Engine Idle Speed Control Device has been revised. Refer to Fig 1 through Fig 4 for the new method.

The 3-way joint (P/N 18342-80CO1) currently supplied in the Samurai A/C kit, will be factory installed beginning with V.I.N. #JS4JC31C L4101900 and 9/89 production date.

The 3-way joint supplied with the A/C kit can be discarded under these conditions.

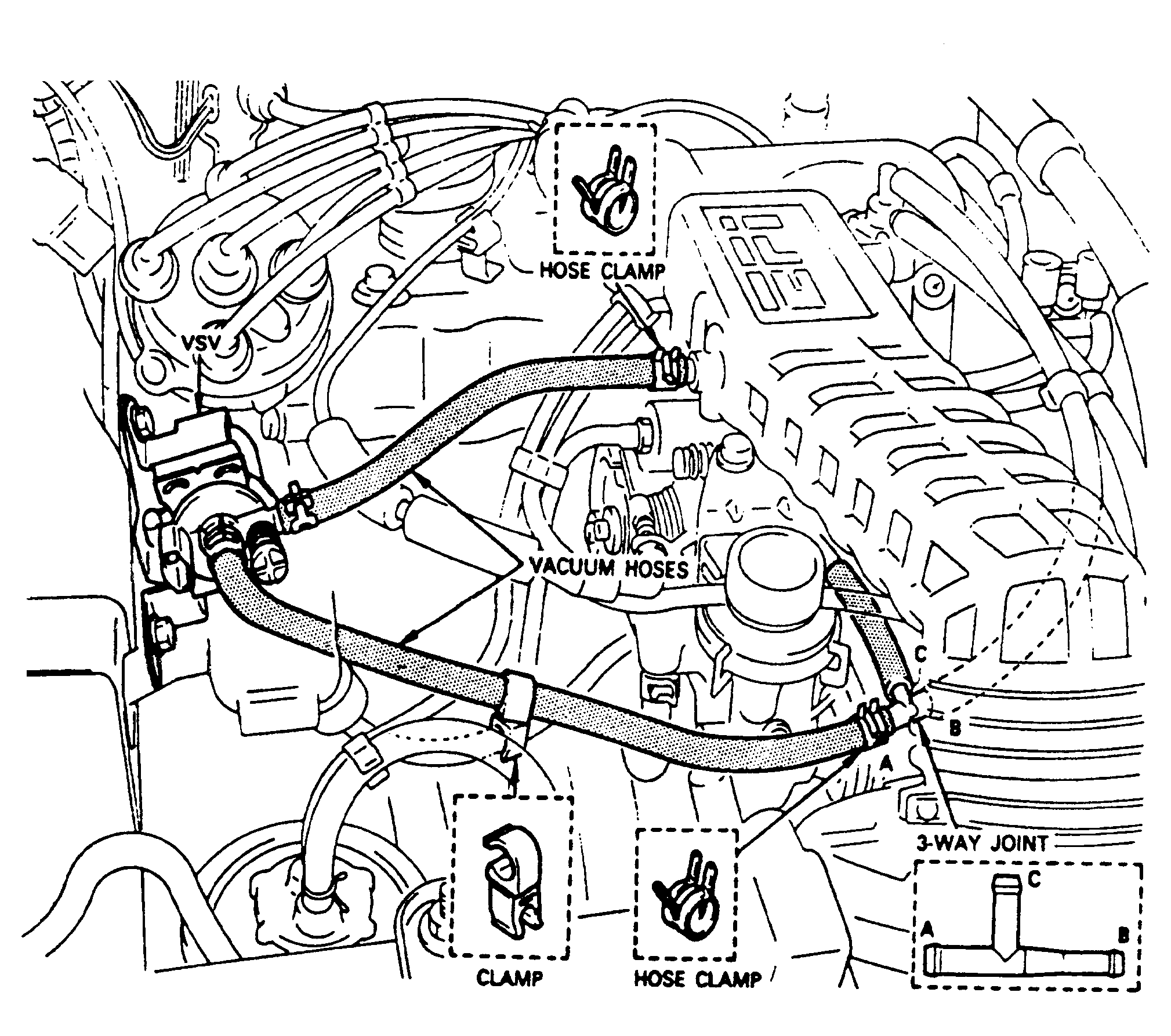

Fig 1: VSV Location

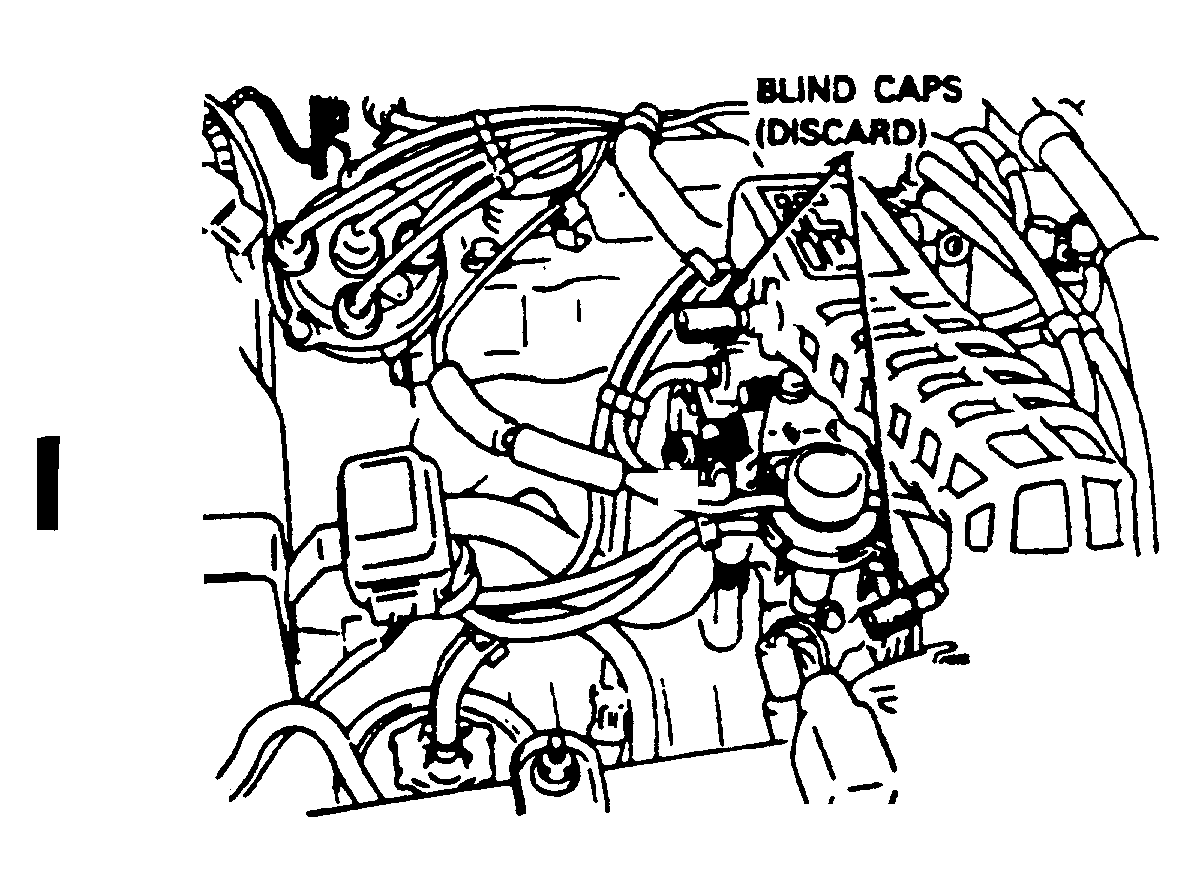

Fig 2: Vacuum Port Location

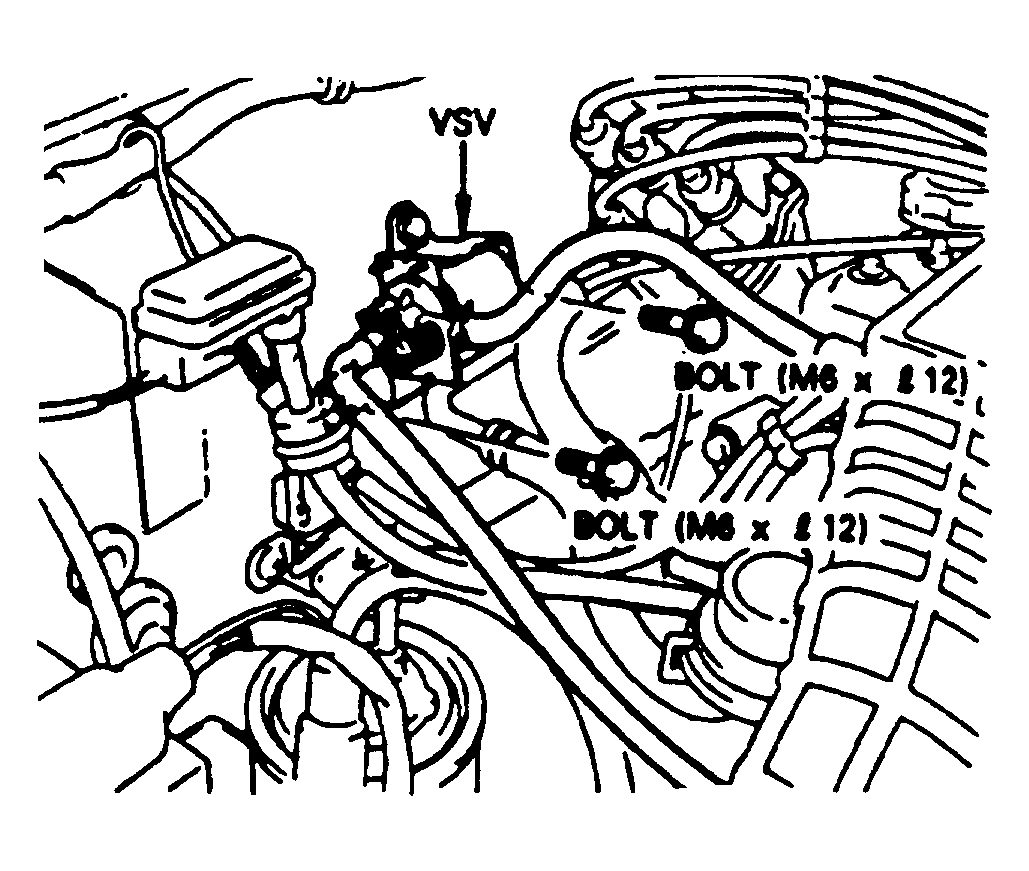

Fig 3: VSV Installation

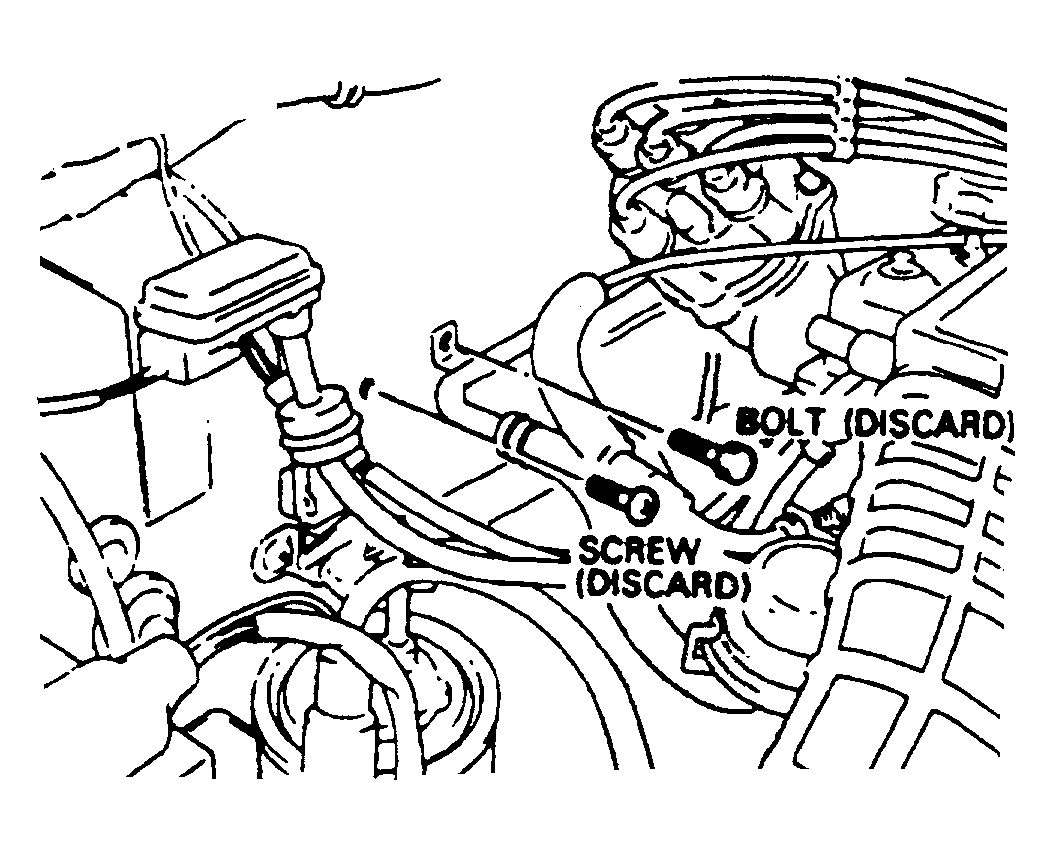

Fig 4: Vacuum Hose Installation
