1.3L Eng Fuel Press GUAGE Adapter (TS 6-05 04111)

Publication date: 1991-04-01
Reference number: TS 6-05 04111

1.3L ENG FUEL PRESS GUAGE ADAPTER

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 6-05 04111, Date of Issue: April, 1991

APPLICATION

1990-91 Samurai with Single Point Fuel Injection

SUBJECT

Fuel Pressure Gauge Adapter

REFERENCE

Suzuki of America Corp., Technical Bulletin, No. 6-05 04111, April, 1991

SERVICE INFORMATION

The manufacturer has developed a new tool for measuring fuel pressure on Single Point Fuel Injected Samurai vehicles. The adapter fits between the fuel pressure regulator and the throttle body, allowing fuel tests to be performed completely from the engine compartment - not under the vehicle at the fuel filter.

INSTALLATION

Loosen fuel cap. Relieve fuel pressure in fuel feed line. Remove Fuel Pressure Regulator. Install the Fuel Pressure Gauge Adapter where the Pressure Regulator was and install the Fuel Pressure Regulator into the adapter. See Fig 1 . Secure the Regulator and Adapter with the long bolts provided. Do not over tighten the bolts: Tighten bolts 12-36 INCH lbs.

NEW SERVICE TOOL APPLICATION & PART NUMBER

Application	Part Number
Fuel Pressure Gauge Adapter	99963-00016
Gauge Fitting	99963-00016-001

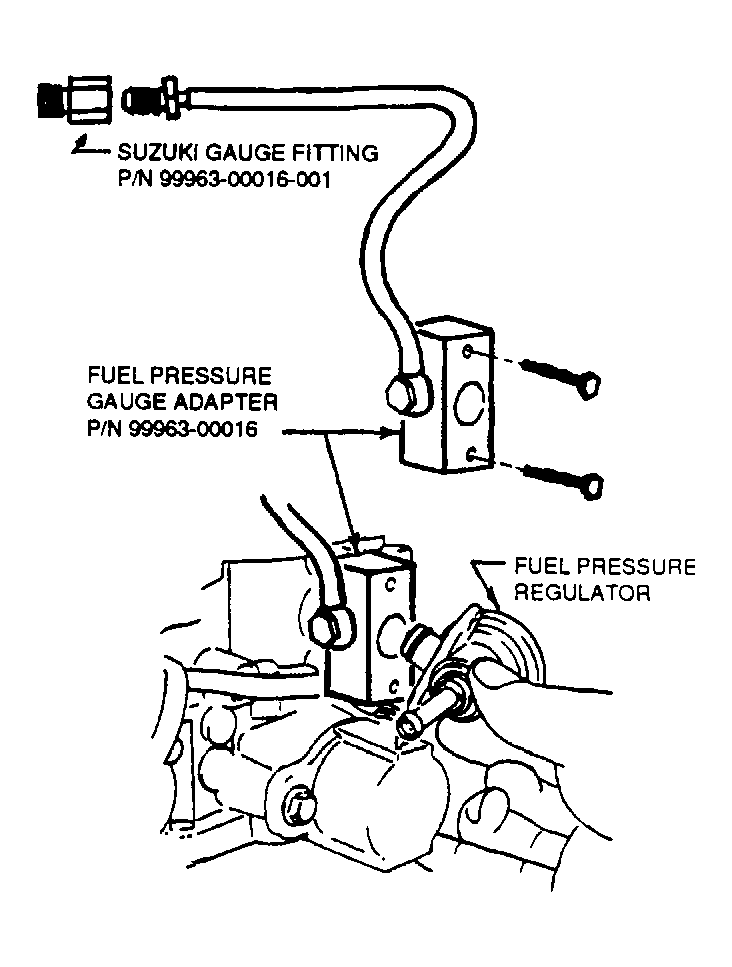

Fig 1: Fuel Pressure Gauge Adapter & Gauge Fitting
