Wiring Diagrams

Fig 1: Samurai Manual A/C-Heater System Wiring Diagram
G90J03668

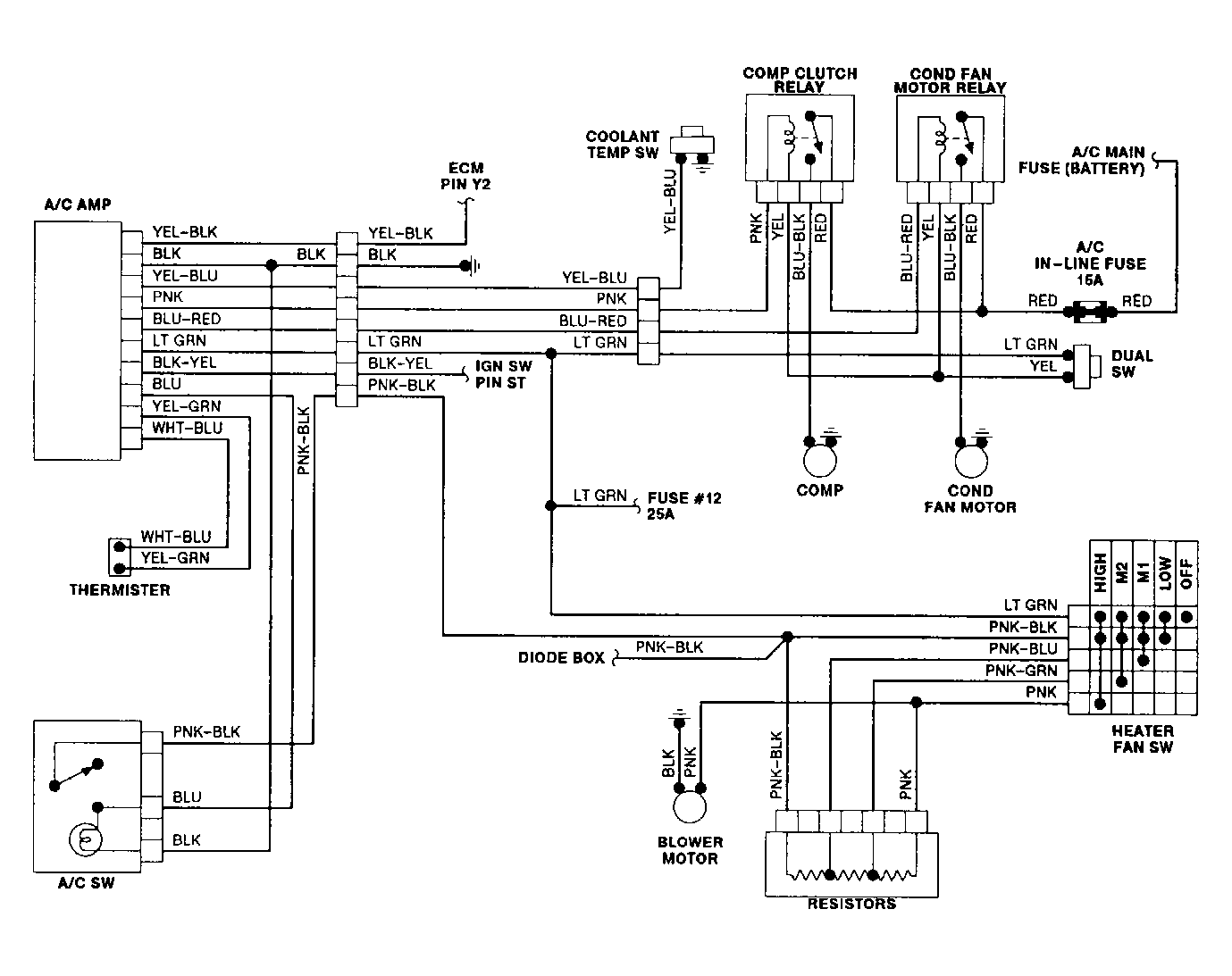

Fig 2: Sidekick Manual A/C-Heater System Wiring Diagram
G90B03669

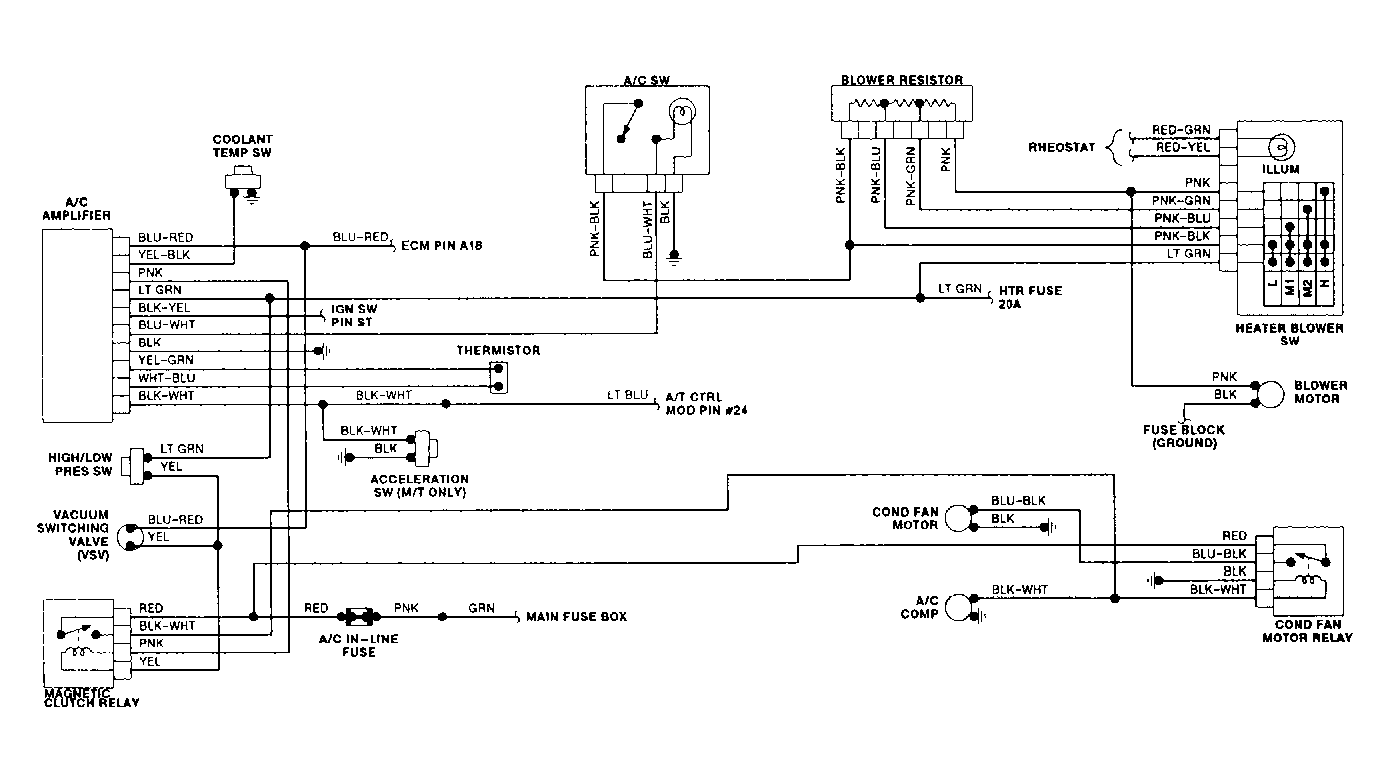

Fig 3: Swift Manual A/C-Heater System Wiring Diagram
G90D03670
