Standard Electrical Circuit Service and Inspection Procedures

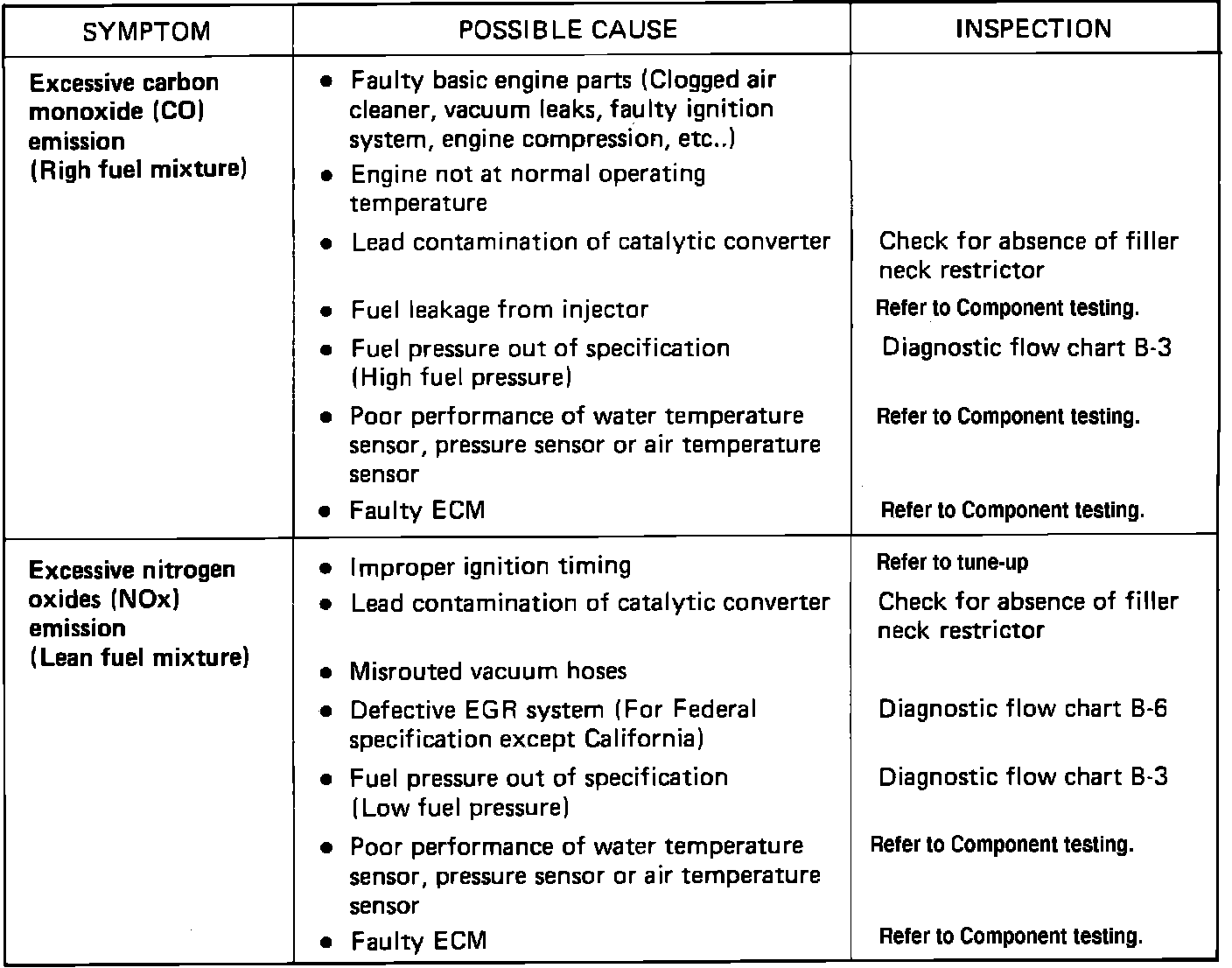

Fig. 89 Diagnosis By Symptom (Part 1 Of 4):

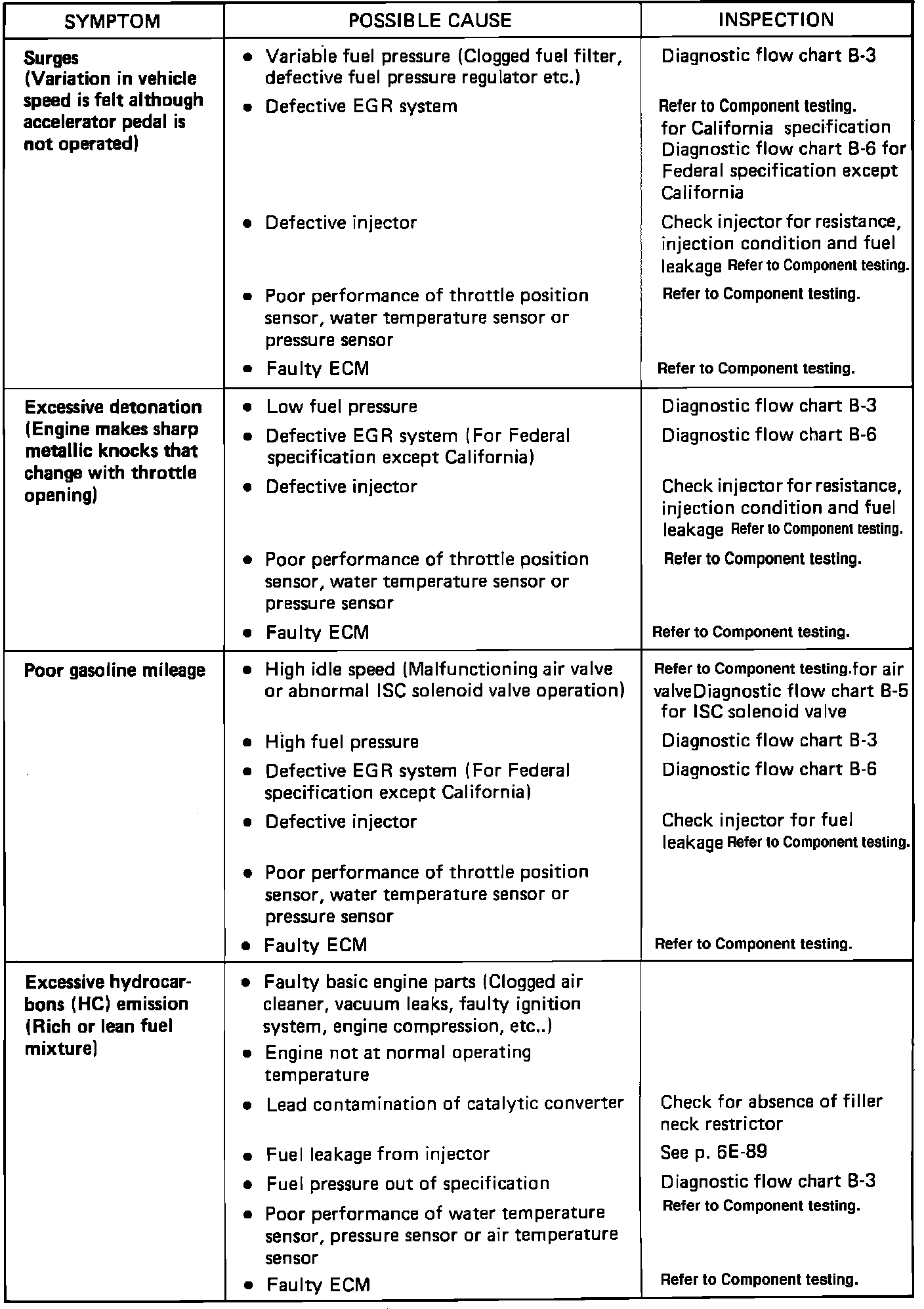

Fig. 89 Diagnosis By Symptom (Part 2 Of 4):

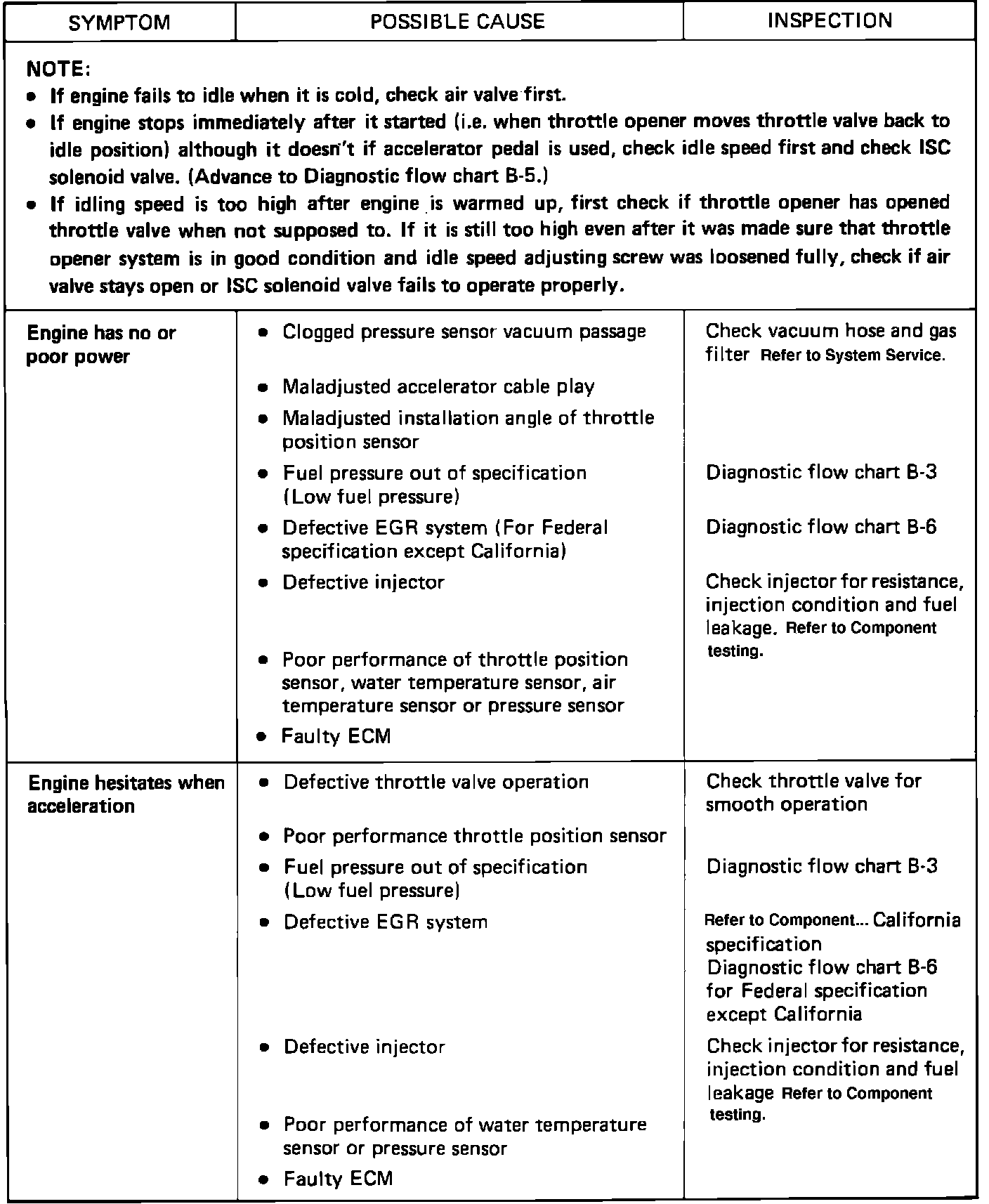

Fig. 89 Diagnosis By Symptom (Part 3 Of 4):

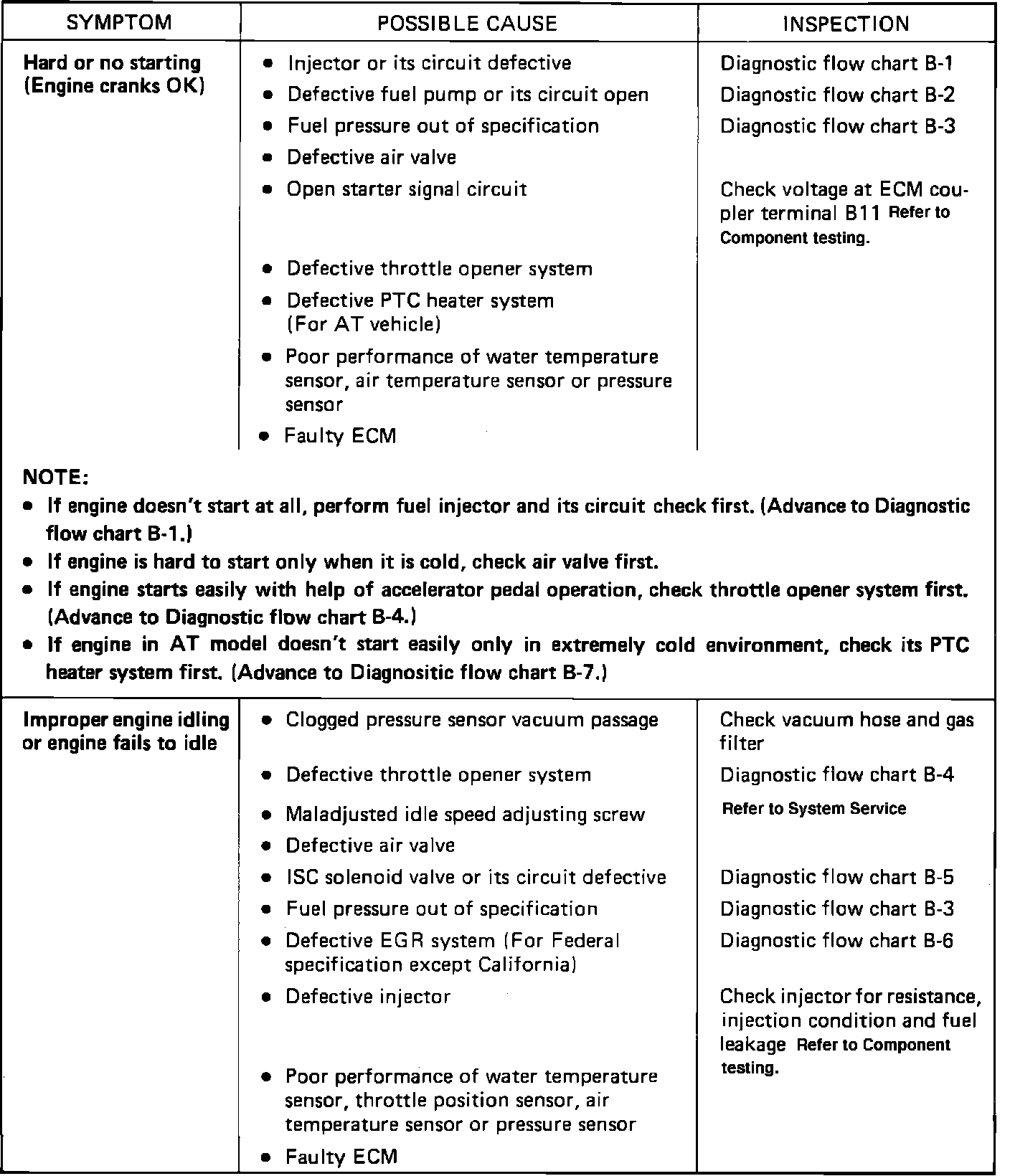

Fig. 89 Diagnosis By Symptom (Part 4 Of 4):
