Throttle Body/Cable - Production Modification

90suzuki02
Division: Automotive

Category: Technical
TSB No. TS 4-05 07060

Section Title: Engine

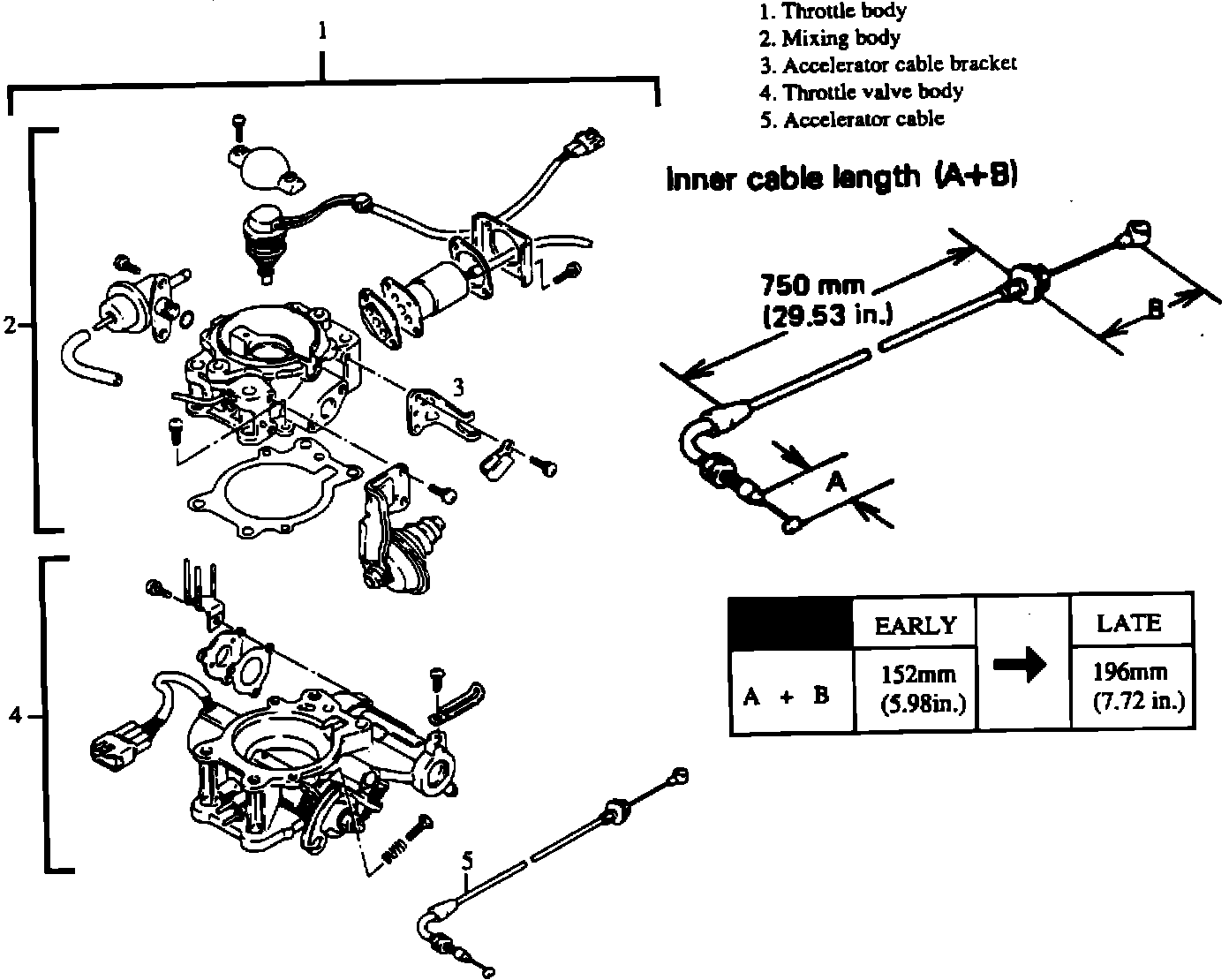

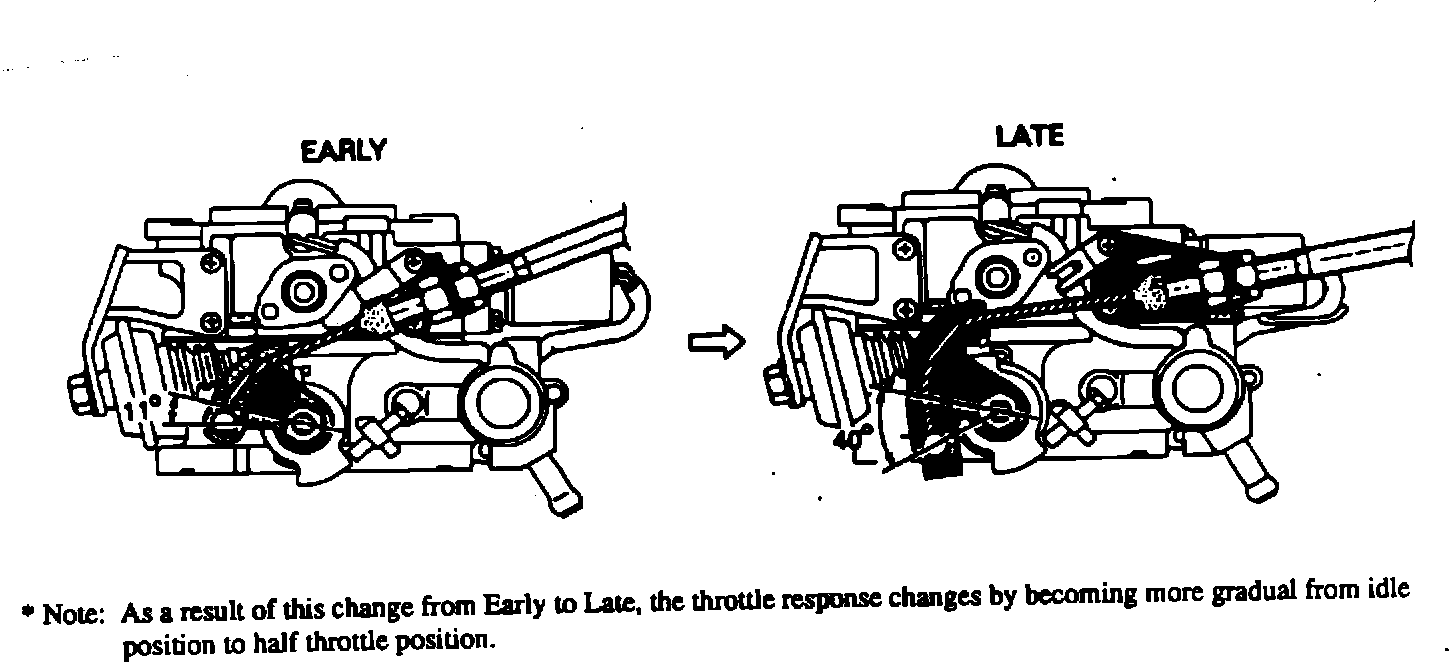

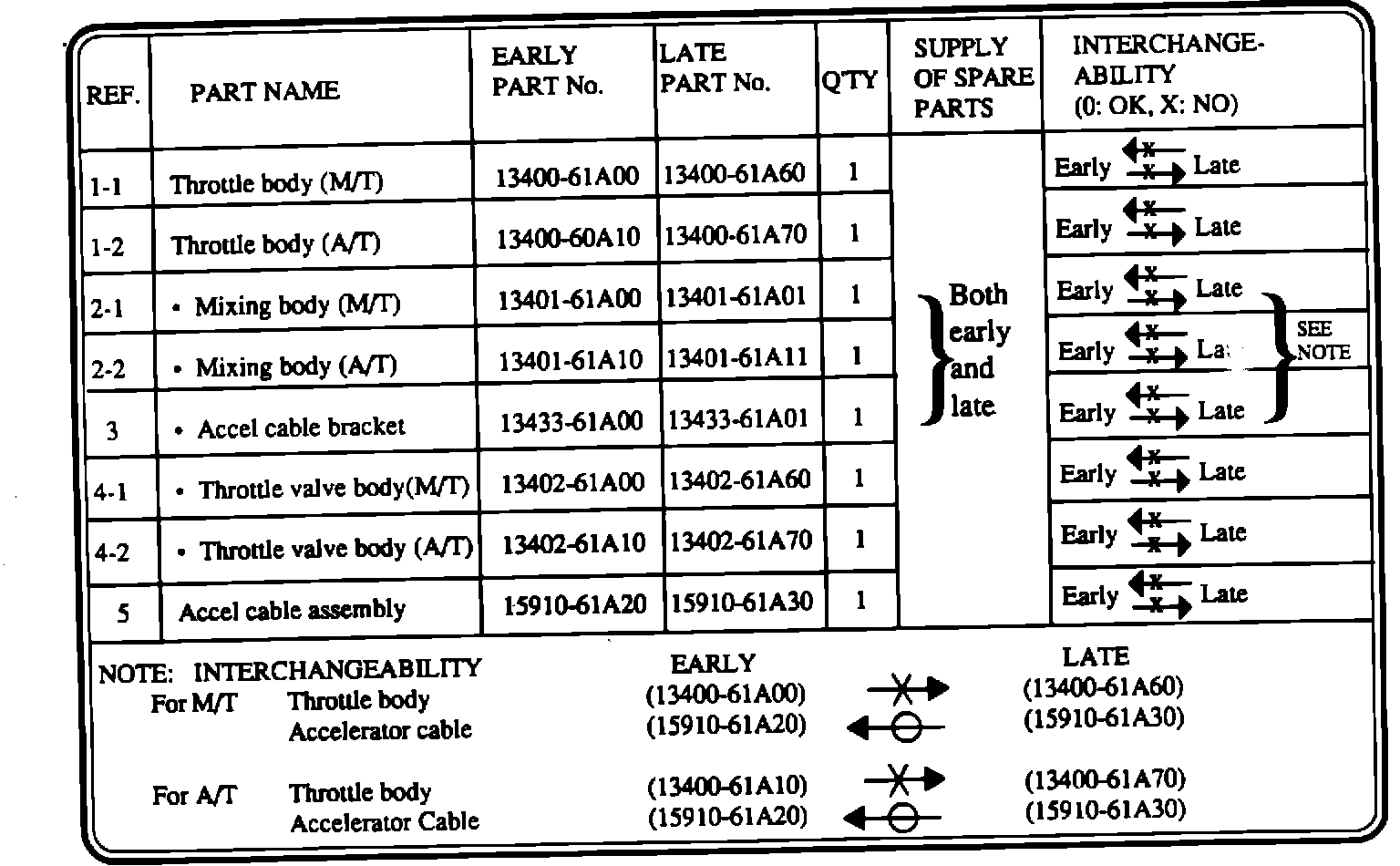

SUBJECT: MODIFICATION OF THROTTLE BODY AND ACCELERATOR CABLE

MODEL: SIDEKICK

YEAR: 1989


Beginning Production Date: 4/89

The purpose of this bulletin is to inform you that there is a modification of the throttle body and accelerator cable.
